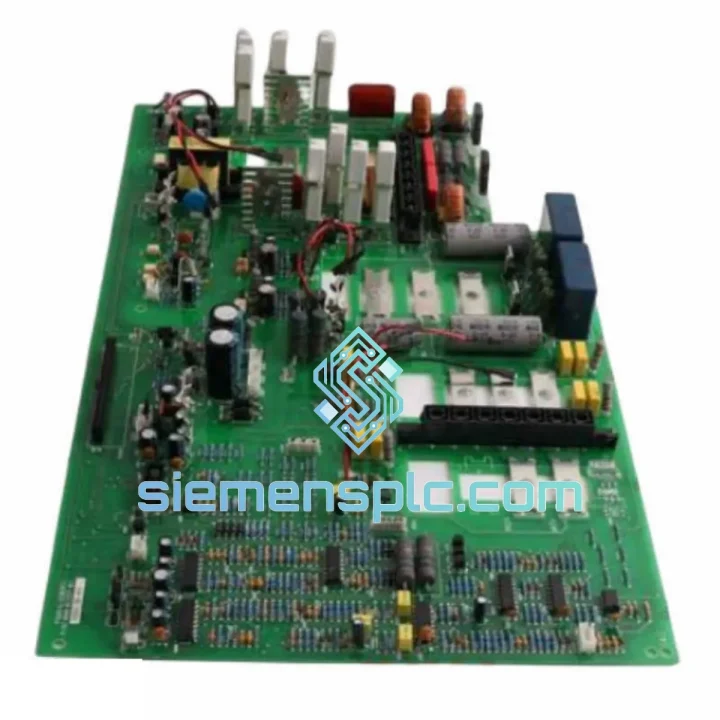

TEL E2B405/M744 CPU PCB Card

TEL E2B405/M744 — When Your Process Line Stops, Every Minute Costs Real Money

You already know the math. A halted CVD or diffusion furnace in a high-volume fab doesn’t just pause production — it triggers a cascade: scrapped wafer batches, violated SLA windows, emergency maintenance calls, and engineering teams standing around waiting for a board that should have been on the shelf. The E2B405/M744 is the CPU PCB card at the core of TEL semiconductor processing platforms. It handles process logic execution, system bus arbitration, and I/O coordination. When it goes down, the tool goes dark. We stock this board in Xiamen and dispatch same-day. That’s the only answer that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

This section is written from field experience, not from a service manual. The E2B405/M744 has well-defined failure modes. Knowing them saves you diagnostic time when the clock is already running against you.

Failure Mode 1 — CPU FAULT / SYSTEM HALT on HMI:
The watchdog timer has lost its heartbeat signal. Before condemning the board, reseat it firmly in the backplane — connector oxidation on the card-edge contacts is a common culprit, especially in tools that run 24/7 with thermal cycling. If the fault returns within minutes of reseating, the CPU card itself has failed. The watchdog circuit is not field-repairable.

Failure Mode 2 — Intermittent Process Bus Timeouts:
The E2B405/M744 manages bus arbitration for the entire card rack. Comm timeouts that clear on reboot but return within a few hours are a classic signature of a degrading oscillator or failing SRAM on the CPU board. This is not a software or network issue — do not waste time reflashing firmware or checking Ethernet connections. The board needs replacement.

Failure Mode 3 — Deterministic Recipe Abort at a Fixed Step:
If the tool aborts at the same recipe step every run, the CPU card’s program memory is suspect. A corrupted EEPROM sector causes the controller to fail at the exact point where it reads that memory block. This failure pattern is highly specific to the CPU board and will not resolve with recipe edits or parameter adjustments.

Failure Mode 4 — No Boot After Power Cycle:
Check the onboard power indicator LED first. No LED illumination points to a backplane power rail fault — investigate the power supply cards before pulling the CPU board. If the LED is on but the system does not boot, the CPU card has failed its POST sequence. Replacement is the only path forward.

Replacement Procedure — What You Must Not Skip:

• DIP Switch Documentation: The E2B405/M744 uses onboard DIP switches for hardware node address selection. Photograph the existing switch configuration before removing the failed board. Installing the replacement with incorrect switch positions will prevent the system from recognizing the card on the bus — the tool will not boot, and you will spend unnecessary time troubleshooting what is actually a configuration error.
• Firmware Revision Matching: TEL CPU boards are firmware-paired to specific equipment generations. Retrieve the firmware version from the label on the existing board or via the service terminal before ordering. Specify this version when you contact us — we will confirm compatibility before dispatch. A firmware mismatch causes recipe incompatibility and communication errors that are difficult to diagnose without knowing the root cause.
• Cold-Swap Protocol: The E2B405/M744 is not hot-swappable. Full equipment power-down and lockout of the main breaker is mandatory before card removal. Do not attempt to swap under power.
• ESD Handling: The board contains CMOS logic that is sensitive to electrostatic discharge. Use a grounded wrist strap and anti-static mat throughout the procedure. Handle the board by its edges only — never touch the component side or connector fingers.
• Post-Installation Bus Registration: After power-up, access the TEL service menu and confirm the replacement CPU card has self-registered on the system bus. Some TEL platform generations require a manual node address confirmation step in the service terminal before the system will accept the new card and allow recipe execution.
• Dry-Cycle Validation: Before returning the tool to production, run a complete recipe cycle without wafers. Verify process timing, temperature ramp profiles, gas sequencing, and interlock responses. A dry cycle takes 20–40 minutes and eliminates the risk of a first-wafer scrap event caused by an undetected configuration issue.
