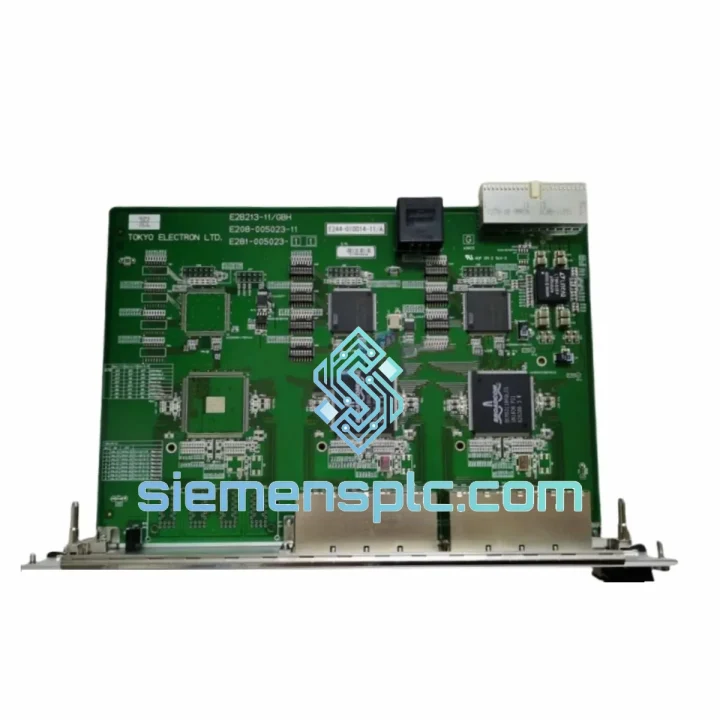

TOKYO E2B213-11 Industrial Circuit Board – E2B Series

TOKYO E2B213-11 Control Circuit Board: Backplane Interface Logic and Signal Conditioning Architecture

The TOKYO E2B213-11 is a dedicated industrial control circuit board engineered for integration within TOKYO and GBH E-series automation platforms. Positioned as the signal processing and backplane interface layer between field I/O and the host CPU, this board handles analog/digital signal conditioning, inter-module communication arbitration, and local diagnostic buffering. Its design targets continuous-duty industrial environments where deterministic signal latency and electrical isolation integrity are non-negotiable requirements.

Cross-reference part numbers: GBH E208-005023-11 / E244-010014 / E281-005023. All cross-references share the same E2B platform logic architecture; firmware version alignment must be confirmed prior to substitution.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The E2B213-11 employs a multi-stage signal conditioning chain that begins at the field terminal block and terminates at the backplane bus driver. Each analog input channel passes through a precision instrumentation amplifier stage (gain-selectable via onboard DIP configuration) before entering a 12-bit successive-approximation ADC. The ADC sampling clock is derived from a crystal-stabilized oscillator, ensuring consistent conversion timing independent of system bus load — a critical requirement in multi-drop backplane architectures where bus arbitration latency can vary.

Galvanic isolation between the field-side circuitry and the logic-side bus is achieved through optocoupler arrays rated at 2,500 V RMS isolation voltage. The optocouplers selected for this design exhibit a current transfer ratio (CTR) of 100–300% across the full operating temperature range, preventing signal degradation in high-ambient-temperature cabinet installations. This isolation topology eliminates ground loop interference paths that are common failure modes in long-cable industrial field wiring.

EMC hardening on the E2B213-11 is implemented at three levels: (1) ferrite bead filtering on all power supply rails entering the board, (2) transient voltage suppression (TVS) diodes on all field-facing signal lines rated for ±1 kV surge per IEC 61000-4-5, and (3) a continuous ground plane on PCB layer 3 that provides a low-impedance return path for high-frequency noise currents, reducing radiated emissions below EN 55011 Class A limits. The board’s 6-layer impedance-controlled stackup maintains 50 Ω trace impedance on high-speed bus lines, preventing signal reflection artifacts that degrade data integrity at bus clock frequencies above 10 MHz.

The onboard watchdog timer circuit monitors the host CPU’s periodic strobe signal. If the strobe interval exceeds 200 ms — indicating a CPU fault or communication dropout — the watchdog asserts a local RESET line, driving all output latches to their fail-safe de-energized state. This hardware-enforced fail-safe behavior operates independently of software, ensuring process safety even during firmware exceptions.

System Integration Benefits

• Deterministic scan cycle contribution: The board’s fixed-latency ADC pipeline adds a constant 1.2 ms conversion delay per channel, allowing the host CPU to calculate worst-case I/O scan times with engineering precision rather than statistical estimation.
• Plug-and-play backplane addressing: Hardware address selection via onboard rotary switch eliminates software-based slot configuration, reducing commissioning time and eliminating address conflict errors during rack expansion.
• Transparent channel-level diagnostics: Each I/O channel maintains an individual status register readable by the host CPU, reporting open-wire faults, over-range conditions, and ADC saturation events without requiring external diagnostic hardware.
• Hot-swap mechanical compatibility: The DIN 41612 connector and board ejector lever mechanism support live insertion in systems equipped with hot-swap backplane controllers, enabling maintenance without process shutdown.
• Conformal coating for harsh environments: IPC-CC-830 acrylic coating protects all PCB surfaces against condensation, industrial dust, and mild chemical vapors, extending service life in foundry, chemical plant, and offshore installations.
• Firmware-independent operation: Signal conditioning, isolation, and watchdog functions are entirely hardware-implemented. No firmware update is required when integrating into existing E2B-series racks, eliminating software compatibility risk.
• Standardized Eurocard form factor: 6U Eurocard mechanical compliance ensures physical interchangeability with all E2B-series rack positions, simplifying spare parts inventory management across multi-rack installations.
• Low power dissipation for high-density racks: At ≤ 8 W typical, the E2B213-11 allows full population of 19-slot racks without exceeding standard rack power supply ratings, avoiding forced-air cooling upgrades.
• Cross-reference validated equivalence: GBH E208-005023-11, E244-010014, and E281-005023 share identical backplane pinout and register maps, enabling direct substitution with zero PLC program modification.

Quality Assurance & Global Logistics

Every TOKYO E2B213-11 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability documentation. Pre-shipment inspection includes visual examination under 10× magnification for solder joint integrity, functional power-on testing at rated voltage, and isolation resistance measurement between field and logic commons. Units are packaged in anti-static shielding bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A certificate of conformance and test report accompany each shipment.

Logistics operations are based in Xiamen, China — a major international freight hub with direct air cargo connections to Europe, North America, Southeast Asia, and the Middle East. Standard international shipments depart within 1–3 business days of order confirmation. Express air freight (DHL / FedEx / UPS) delivers to most destinations within 3–7 business days. Sea freight consolidation is available for bulk orders. All export documentation, including commercial invoice, packing list, and HS code classification, is prepared in compliance with destination country customs requirements. Customers in the EU receive REACH/RoHS compliance declarations upon request.
