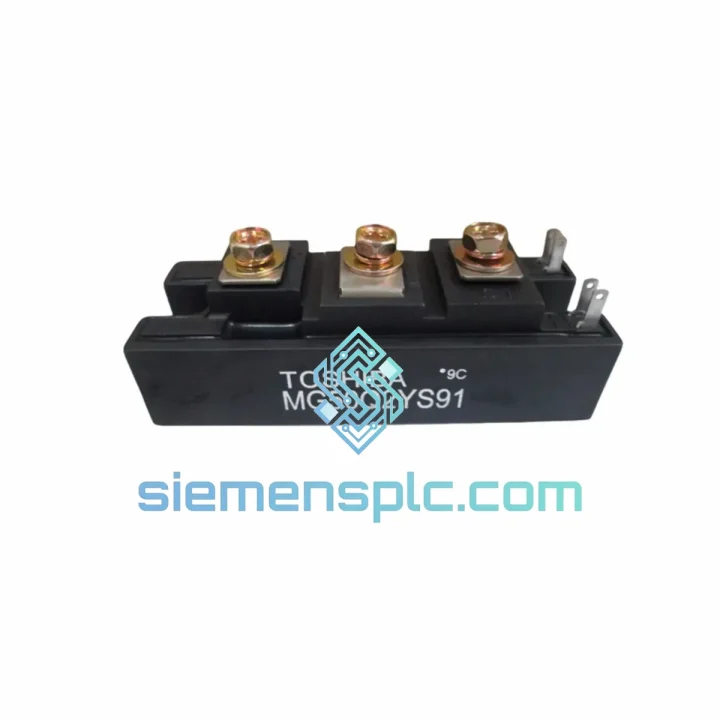

TOSHIBA MG50Q2YS91 IGBT Power Module – MG-Series

TOSHIBA MG50Q2YS91 600V / 50A Half-Bridge IGBT Module: Role in Industrial Power Conversion Control Loops

The TOSHIBA MG50Q2YS91 is a 600 V, 50 A half-bridge IGBT power module engineered for the switching stage of industrial power conversion systems. Within a closed-loop motor drive or inverter architecture, this module occupies the position between the DC bus and the AC output phase leg — executing the pulse-width modulated switching commands issued by the DSP or microcontroller with sub-microsecond precision. Its half-bridge (2-in-1) topology integrates two IGBT cells and two anti-parallel freewheeling diodes within a single isolated baseplate package, reducing interconnect inductance and simplifying gate driver layout. The collector-emitter voltage rating of 600 V provides adequate margin for 400 V AC three-phase bus applications after rectification, while the 50 A continuous collector current supports motor drives in the 15–22 kW range under standard thermal management conditions. The module’s low saturation voltage (V_CE(sat)) characteristic directly reduces conduction losses in the switching bridge, contributing to measurable efficiency gains across the full duty cycle range of the inverter.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MG50Q2YS91 employs a planar IGBT cell structure with a lightly doped n-drift region calibrated to sustain 600 V blocking while maintaining a thin enough drift layer to limit V_CE(sat). The trench-gate variant of this MG-Series generation reduces gate charge (Q_g) compared to planar-gate predecessors, enabling gate driver designs to operate at switching frequencies up to 20 kHz without excessive driver dissipation — a practical requirement in servo amplifier applications where acoustic noise reduction demands carrier frequencies above the audible threshold.

The integrated freewheeling diodes are co-packaged with soft-recovery characteristics (controlled di/dt during reverse recovery), which suppresses voltage overshoot on the DC bus during commutation. In a 400 V AC system with a rectified bus of approximately 560 V_DC, uncontrolled diode recovery can generate transient spikes exceeding 700 V — the soft-recovery FWD in the MG50Q2YS91 limits this overshoot to within the 600 V V_CES margin when combined with appropriate DC bus snubber capacitance.

The isolated copper baseplate provides a low thermal resistance path (R_th(j-c) = 0.45 °C/W for the IGBT cell) to the heatsink interface. At 50 A continuous with a V_CE(sat) of 2.5 V, conduction loss per IGBT cell is approximately 125 W. With a junction-to-ambient thermal resistance of 0.45 °C/W (case-to-heatsink and heatsink-to-ambient excluded), the junction temperature rise above case temperature is 56.25°C — leaving substantial margin below the 150°C T_j(max) when the heatsink is properly sized to maintain case temperature at or below 80°C under full load.

The module’s EMC performance benefits from the low-inductance internal bond wire layout. Minimizing stray inductance within the module package reduces the L·(di/dt) voltage spike at turn-off, which is the primary source of conducted EMI in IGBT bridge circuits. The MG50Q2YS91’s internal layout is optimized to keep stray inductance below 30 nH, a figure that directly reduces the gate driver’s required active clamping voltage and simplifies compliance with IEC 61800-3 conducted emission limits for variable speed drives.

System Integration Benefits

• Reduced BOM complexity: The 2-in-1 half-bridge configuration integrates both high-side and low-side switches with their freewheeling diodes in a single package, eliminating four discrete component positions and their associated PCB routing constraints.
• Deterministic switching latency: Low gate charge (Q_g) enables consistent turn-on and turn-off delay times across the operating temperature range, supporting precise dead-time calibration in DSP-based PWM controllers without temperature-dependent compensation tables.
• Thermal management simplification: The flat copper baseplate with standardized mounting hole pattern is compatible with industry-standard extruded aluminum heatsinks and liquid-cooled cold plates, reducing mechanical design iteration cycles.
• Gate driver compatibility: The ±20 V V_GES rating is compatible with standard IGBT gate driver ICs (e.g., Concept 2SD315A, Semikron SKYPER 32R) operating at +15 V / -8 V gate drive levels, requiring no custom level-shifting circuitry.
• Diagnostic transparency: The module’s well-characterized V_CE(sat) vs. temperature curve enables junction temperature estimation via V_CE measurement during operation — a non-invasive thermal monitoring technique applicable in drives with current sensing already in place.
• Scalable multi-phase topology: Three MG50Q2YS91 units form a complete three-phase inverter bridge for 15–22 kW motor drives, with matched electrical characteristics within the MG-Series lot ensuring balanced phase current distribution without additional derating.
• Soft-recovery FWD reduces DC bus stress: Controlled reverse recovery di/dt reduces peak voltage stress on DC bus capacitors, extending capacitor service life and reducing the required capacitance value for a given bus voltage ripple specification.
• RoHS compliance: The module is manufactured under TOSHIBA’s RoHS-compliant process, supporting system-level compliance with EU Directive 2011/65/EU and facilitating CE marking of the end equipment without component-level exemption documentation.

Quality Assurance & Global Logistics

Every MG50Q2YS91 unit supplied through siemensplc.com is sourced from verified distribution channels maintaining full traceability to TOSHIBA’s authorized manufacturing and distribution network. Each unit undergoes a structured pre-shipment verification protocol: physical inspection of laser-etched date codes and lot markings against TOSHIBA’s authentic marking specifications; package integrity check for factory-sealed anti-static packaging; and parametric spot-check of key electrical parameters against published datasheet limits.

Shipments originate from our warehouse in Xiamen, China — a major electronics export hub with direct access to international express freight networks. Standard dispatch lead time for in-stock units is 1–3 business days. Available shipping services include DHL Express (typical transit: 3–5 business days to Europe and North America), FedEx International Priority, and UPS Worldwide Express. For bulk orders exceeding 10 units, sea freight consolidation via Xiamen Port is available with full export documentation: commercial invoice, packing list, certificate of origin, and MSDS where applicable. All shipments are covered by a 12-month warranty from the date of dispatch, with DOA replacement processed within 7 business days upon receipt of failure evidence.
