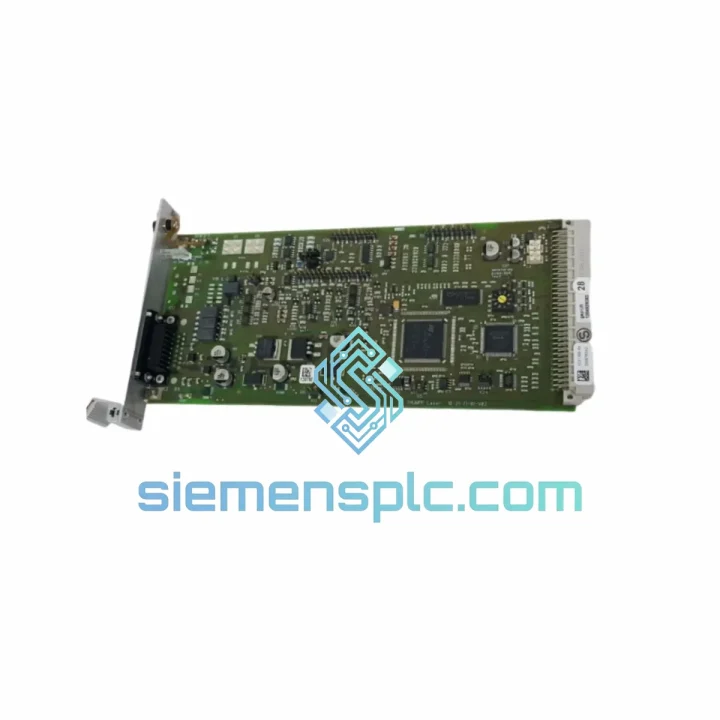

TRUMPF 1309047-18-21-71-00 PLC Interface Control Board

TRUMPF 1309047-18-21-71-00 — Stop the Clock on Your Downtime. Ship Today.

Your TruLaser line is dead. Every hour it sits idle, you’re bleeding money — scrapped schedules, missed deliveries, furious customers. The TRUMPF 1309047-18-21-71-00 PLC Interface Control Board is the exact OEM component that gets your machine back online. We stock it in Xiamen. We ship it today. No runaround, no lead-time games.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1309047-18-21-71-00 sits at the intersection of the PLC CPU and every downstream I/O device on your TRUMPF machine. When it fails, the symptoms are rarely subtle — you’ll see one or more of the following before the machine trips:

• Error E-651 / E-652 (I/O Bus Fault): The PLC CPU loses handshake with the interface board. The machine halts mid-cycle. First action: reseat the board connector and check for corrosion on the backplane pins. If the fault persists after a cold restart, the board is the prime suspect.
• Intermittent axis faults during high-speed cutting: Vibration-induced micro-fractures on solder joints cause transient signal dropout. The machine may run fine at low feed rates but fault out above 80% rapid traverse. Replace the board — re-soldering is not a field-viable fix.
• Safety relay inputs not acknowledged: The board’s input conditioning circuit may have failed. The PLC sees the safety relay as permanently open, preventing machine enable. Do not bypass — replace the board.
• Random PLC watchdog resets: If the CPU module has already been swapped and watchdog resets continue, the interface board is feeding corrupted bus data. Swap 1309047-18-21-71-00 before condemning the CPU.

Replacement Procedure (Field Reference):

1. Power down the machine and lock out / tag out per your site LOTO procedure. Confirm zero energy state with a meter — do not rely on the E-stop alone.
2. Open the control cabinet. Photograph the existing wiring and connector positions before touching anything. This takes 30 seconds and saves hours.
3. Discharge any residual bus capacitance by leaving the cabinet door open for 2 minutes after power-off.
4. Note the DIP switch or rotary address settings on the existing board before removal. The 1309047-18-21-71-00 uses a node address that must match the PLC configuration file. Mismatched addressing is the #1 cause of “board replaced but fault persists” callbacks.
5. Remove the board carefully — the backplane connector is a friction-fit with no locking tab. Pull straight out, no rocking.
6. Set the replacement board’s address switches to match the removed unit exactly. If the original settings are unknown, pull the machine’s electrical documentation or contact TRUMPF service for the default node map.
7. Seat the new board firmly. Apply even pressure across the full connector width.
8. Power up and observe the PLC diagnostic LEDs. Green steady = bus communication established. Flashing red = address conflict or firmware mismatch.
9. Run a full I/O check from the machine’s service menu before returning to production. Verify all sensor inputs and actuator outputs respond correctly.
10. Log the replacement in the machine’s maintenance record with the new board’s serial number and date.

Firmware Note: The 1309047-18-21-71-00 carries embedded firmware tied to the TRUMPF platform revision. If your machine has received a software update since the original board was installed, confirm firmware compatibility with TRUMPF service before ordering. In most cases, the board ships with the current production firmware and is backward-compatible — but verify before you commit to a production restart.

Reliability in Harsh Conditions

TRUMPF laser cutting environments are not kind to electronics. The 1309047-18-21-71-00 is engineered to operate continuously in conditions that would kill consumer-grade hardware within weeks.

Vibration: The board is designed to IEC 60068-2-6 vibration profiles. The PCB layout minimizes resonant flex, and all through-hole components are wave-soldered with additional adhesive retention on heavy connectors. In practice, this means the board survives the constant low-frequency vibration from the machine’s linear drives and the impulse shock from the punch head on TruMatic platforms.

Thermal Cycling: Control cabinets on active production lines see significant thermal swings — cold startup in the morning, sustained heat buildup during multi-shift operation. The board’s components are rated for continuous operation at +55°C ambient, with derating curves that account for localized hot spots near the backplane power rails. The conformal coating on the PCB provides additional protection against thermal stress cracking.

Humidity and Contamination: Sheet metal fabrication generates metallic dust, cutting oil mist, and humidity from coolant systems. The 1309047-18-21-71-00’s conformal coating provides a barrier against conductive contamination that would otherwise cause leakage currents and intermittent faults. The board is not rated for direct coolant exposure — maintain your cabinet door seals and filter mats, and this board will outlast the machine’s scheduled maintenance intervals.

EMC: The board is designed and tested to EN 61000-4 series immunity standards. The signal conditioning circuits include transient suppression on all I/O lines, protecting the board from the inductive spikes generated by servo drives and solenoid valves sharing the same cabinet.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you place an urgent order, here is exactly what happens:

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. The board is pulled from stock, inspected, ESD-packed, and handed to the carrier within hours — not days.
• DHL Express Worldwide: Typical transit times — Europe: 2–3 business days. Southeast Asia: 1–2 business days. North America: 3–4 business days. Middle East: 2–3 business days. These are real-world times, not marketing estimates.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage. We select the fastest carrier for your specific destination at time of booking.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared and included with every shipment. HS code 8537.10 is pre-declared for customs clearance. If your country requires additional documentation (e.g., EUR.1, Form A), advise us at order time.
• Tracking: You receive the carrier tracking number within 2 hours of dispatch. We monitor the shipment and proactively notify you of any customs holds or delays.
• Emergency freight: For genuine production emergencies, contact us directly on WhatsApp. We can arrange next-flight-out courier options for critical situations where standard express is not fast enough.

Every hour your machine is down costs real money. We treat your urgency as our urgency.
