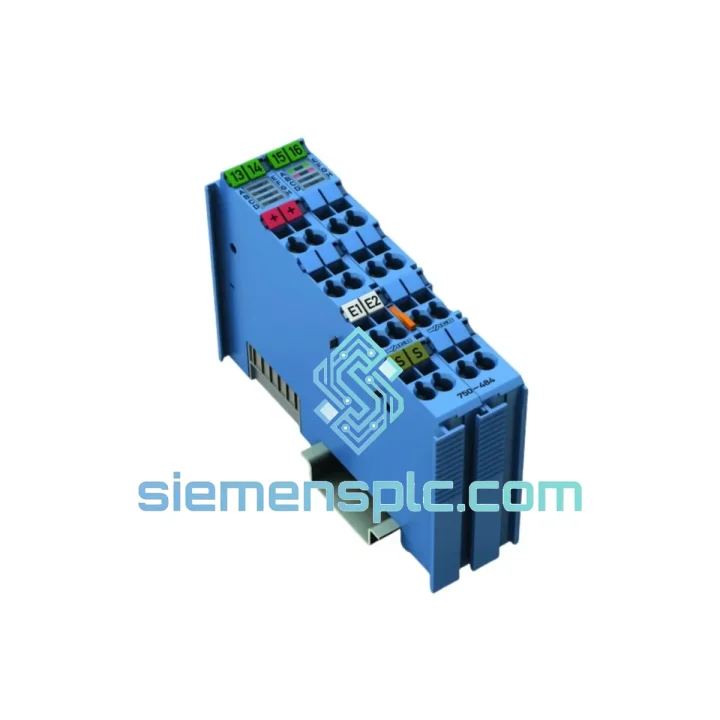

WAGO 750-484 Analog Input Module – 750 Series

WAGO 750-484: Dual-Channel Current Input Module for FIELDBUS-Independent I/O Systems

The WAGO 750-484 is a 2-channel analog input module engineered for the WAGO 750/753 FIELDBUS INDEPENDENT I/O System. Accepting 0–20 mA and 4–20 mA standard industrial current signals, this module occupies a critical position in the signal acquisition layer of distributed control architectures. Its 12-bit resolution ADC delivers a measurement granularity of approximately 4.88 µA per LSB across the 0–20 mA span, providing sufficient dynamic range for the majority of process transmitter applications including pressure, differential pressure, flow, and level instrumentation loops.

Within a control loop, the 750-484 functions as the physical interface between field-mounted transmitters and the fieldbus coupler’s process image. Each channel maintains galvanic isolation from the internal bus logic, preventing ground-loop currents from corrupting the digital representation of the measured variable. The module draws its operating power from the WAGO internal bus (5 VDC logic rail), while the field-side current loop is powered externally, consistent with standard 2-wire and 4-wire transmitter wiring conventions. This separation of power domains is a deliberate architectural decision that reduces common-mode interference and simplifies compliance with IEC 61000-4 series EMC immunity requirements.

The 750-484 integrates directly with any WAGO 750/753 series bus coupler, making it protocol-agnostic at the hardware level. Whether the host system runs PROFIBUS DP, PROFINET, EtherNet/IP, Modbus TCP, CANopen, or DeviceNet, the same physical module is used — fieldbus selection is determined solely by the bus coupler, not the I/O module. This architecture reduces spare-parts inventory complexity in multi-protocol plant environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 750-484’s analog front-end employs a successive-approximation register (SAR) ADC topology, selected for its deterministic conversion time and low power consumption relative to sigma-delta architectures. At 12-bit resolution, the conversion cycle completes within the WAGO internal bus update interval, ensuring that the process image presented to the fieldbus coupler reflects the most recent field measurement without introducing additional latency into the control loop.

Galvanic Isolation Architecture: Each channel’s field-side circuitry is separated from the internal bus logic by an optocoupler barrier. This isolation topology breaks the conductive path between the field wiring and the backplane, suppressing common-mode voltages that arise from ground potential differences between field instruments and the control cabinet. The isolation withstand voltage is rated to handle transient overvoltages consistent with IEC 61000-4-5 surge immunity testing at the 1 kV level (line-to-earth).

EMC Design: The module’s PCB layout routes analog signal traces away from the internal bus data lines, minimizing capacitive and inductive crosstalk. Ferrite bead filtering on the field-side input lines attenuates high-frequency interference injected by variable-frequency drives, switching power supplies, and other EMI sources common in industrial panel environments. The metal housing of the WAGO 750 series provides a Faraday shield effect when the DIN rail is properly earthed, further reducing susceptibility to radiated emissions.

CAGE CLAMP® Terminal Technology: The spring-clamp connection mechanism maintains a constant contact force independent of thermal cycling, eliminating the resistance drift that occurs with screw-terminal connections subjected to repeated temperature excursions. This is particularly relevant in applications where the control cabinet experiences daily thermal cycles due to ambient temperature variation or internal heat dissipation from power electronics.

Signal Range Selection: The 0–20 mA and 4–20 mA ranges are selectable, with the 4–20 mA mode enabling wire-break detection — a current below 3.6 mA triggers a diagnostic flag in the process image, allowing the PLC program to distinguish a genuine zero-scale measurement from a broken field cable. This diagnostic transparency is essential for safety-instrumented system (SIS) applications operating under IEC 61511 requirements.

System Integration Benefits

• Protocol-Agnostic Hardware: A single 750-484 SKU operates across all WAGO 750/753 bus coupler variants. Migrating from PROFIBUS to PROFINET requires only a coupler swap — the I/O module, field wiring, and terminal assignments remain unchanged, reducing migration project risk and downtime.
• Deterministic Process Image Update: The internal bus architecture guarantees that all I/O module data is refreshed within a fixed cycle time, providing the PLC with a consistent, time-stamped snapshot of field conditions. This determinism is a prerequisite for closed-loop PID control where scan-time jitter directly affects controller stability margins.
• Wire-Break Diagnostics: In 4–20 mA mode, the module continuously monitors loop current. A sub-threshold reading (< 3.6 mA) sets a diagnostic bit in the status word, enabling the control program to execute fault-handling routines without relying on external monitoring hardware.
• Modular Scalability: The 12 mm module width allows high-density I/O configurations. A 500 mm DIN rail segment can accommodate up to 40 modules, supporting large-scale analog acquisition without requiring additional fieldbus nodes or gateway hardware.
• Reduced Wiring Complexity: CAGE CLAMP® terminals accept conductors from 0.08 to 2.5 mm² without ferrules, reducing installation labor. The tool-free connection also eliminates torque-specification compliance requirements associated with screw terminals in IEC 60947-1 installations.
• ATEX Zone 2 / IECEx Certification: When paired with a certified WAGO Ex bus coupler, the 750-484 is approved for installation in Zone 2 hazardous areas (gas group IIC, temperature class T4). This eliminates the need for intrinsic safety barriers or Zener diode isolators in many Zone 2 applications, reducing BOM cost and panel space.
• Long-Term Availability and Backward Compatibility: WAGO maintains backward compatibility across 750/753 series generations. Modules purchased today are mechanically and electrically interchangeable with units installed in systems commissioned over a decade ago, protecting the capital investment in existing wiring infrastructure.
• Unified Diagnostic Framework: Status and diagnostic information from the 750-484 is mapped into the fieldbus coupler’s diagnostic data area, accessible via standard fieldbus diagnostic services (e.g., PROFIBUS DP Slave Diagnostics, PROFINET Alarm CR). This allows plant asset management systems to monitor module health without custom programming.

Quality Assurance & Global Logistics

Every WAGO 750-484 unit supplied by siemensplc.com is sourced through verified supply channels with full traceability to the original manufacturer. Each module undergoes incoming inspection that includes visual examination for counterfeit indicators, functional verification of both analog input channels across the full 0–20 mA range, and confirmation of internal bus communication integrity. Units are supplied in original WAGO packaging with accompanying documentation where available.

Our warehouse is located in Xiamen, China — a major international logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, both operating daily freight services to North America, Europe, Southeast Asia, the Middle East, and Oceania. Standard in-stock orders are dispatched within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for urgent requirements — contact us before 14:00 CST to confirm eligibility.

All shipments are accompanied by a commercial invoice, packing list, and certificate of origin. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and the import requirements of the destination country. For orders requiring third-party inspection certificates (SGS, BV, or equivalent), please specify at the time of inquiry.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from Xiamen stock to minimize system downtime.
