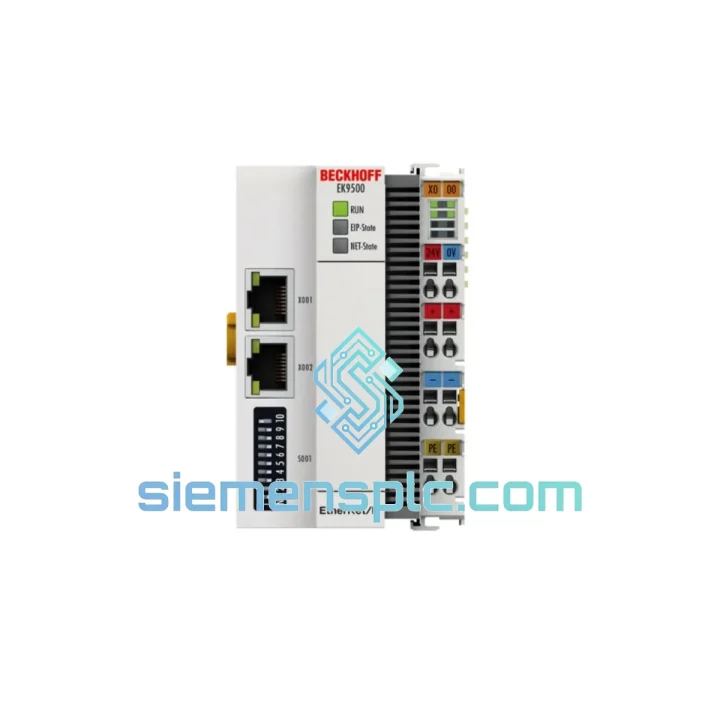

WAGO KL3454 Thermocouple Input Module

WAGO KL3454 Down? Every Minute of Downtime Has a Price Tag — We Ship Today

Your thermocouple loop is dead. The PLC is throwing diagnostics. Production is stopped. You’ve already traced the fault to the KL3454 — now the only question is: how fast can you get a replacement on the rail?

At siemensplc.com, we stock the WAGO KL3454 4-channel thermocouple analog input bus terminal for exactly this scenario. Orders confirmed before 14:00 CST ship same day from Xiamen via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive units within 48–72 hours. That’s the difference between a two-day outage and a two-week parts chase.

This is not a grey-market listing. Every KL3454 we dispatch carries original WAGO holographic labeling, factory date codes, and ESD-safe packaging. We verify K-Bus handshake and channel continuity before the box is sealed.

⚡ URGENT REQUIREMENT?
Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on WAGO 750-series racks teach you the same lessons repeatedly. Here’s what actually matters when you’re swapping a KL3454 under pressure:

1. Confirm the fault is the module, not the wiring. Before pulling the terminal, short the TC input pins together at the field terminal and check if the channel reads ambient temperature. If it does, the module is alive — your thermocouple or extension cable is open-circuit. If the channel still reads error (0x8000 or overrange), the KL3454 is the culprit.

2. K-Bus address is automatic — no DIP switches on this module. Unlike some older Beckhoff EL-series terminals, the KL3454 has no hardware address switches. The coupler auto-enumerates all terminals left-to-right on power-up. Slot position determines the process image offset. If you’re inserting the replacement in the same physical slot, your PLC program requires zero changes. If the slot position changed for any reason, update the I/O configuration in your coupler’s web interface or WAGO-I/O-CHECK before going live.

3. Thermocouple type is set in software, not hardware. The KL3454 stores TC type selection (J/K/L/E/N/B/R/S/T) in its internal register R32. After a cold swap, the register defaults to Type K. If your process uses Type J or any other type, you must write the correct value via the coupler’s register interface or your PLC program before the loop reads correctly. Failure to do this is the #1 cause of “wrong temperature after module swap” calls.

4. Cold junction compensation offset drift. If post-replacement readings are consistently off by 2–5 °C but the trend is correct, suspect CJC offset drift caused by the new module sitting in a different thermal environment than the old one. Allow 15–20 minutes for the internal CJC sensor to stabilize at rail temperature before making calibration judgments.

5. Common diagnostic codes on WAGO 750 couplers:

• 0x8000 — Underrange / open-circuit TC wire. Check field wiring continuity first.
• 0x7FFF — Overrange. TC type mismatch or shorted extension cable with high EMF.
• Channel stuck at 0 — K-Bus communication fault. Power-cycle the coupler after seating the replacement terminal; the CAGE CLAMP® connection may need firm re-seating.
• All 4 channels dead simultaneously — Suspect K-Bus supply issue upstream, not the KL3454 itself. Check the 750-600 end terminal and coupler K-Bus voltage.

6. Firmware matching. The KL3454 has no user-upgradeable firmware. However, if your coupler firmware is below version 2.x, certain register map behaviors differ. Verify coupler firmware version in the web interface before assuming the module is defective.

Reliability in Harsh Conditions

The KL3454 was not designed for a climate-controlled server room. It was built for the kind of environments where panels run hot, vibration is constant, and humidity is a daily variable.

The CAGE CLAMP® spring-cage termination system is the first line of defense. Unlike screw terminals that loosen under thermal cycling and vibration, the spring-cage maintains constant contact force regardless of temperature swings from 0 °C to +55 °C. In foundry and press applications where panels see 10–50 Hz vibration continuously, this matters more than any spec sheet number.

The 500 V channel-to-K-Bus isolation barrier protects the entire rack from ground loops and transient spikes that are endemic in thermocouple circuits running near VFDs, welding equipment, and high-current bus bars. We’ve seen installations where a single unshielded TC cable running parallel to a 400 A motor feeder induced enough noise to corrupt readings on lesser modules. The KL3454’s differential input architecture and isolation barrier handle this without external signal conditioning.

Internal conformal coating on the PCB provides additional protection against condensation in applications where panels are subject to temperature cycling that crosses the dew point — common in outdoor enclosures in coastal and tropical climates. The IP 20 rating covers the terminal body; for full environmental protection, the enclosure itself must be rated appropriately.

Operating range of 0 °C to +55 °C covers the vast majority of industrial panel environments. For applications approaching the upper limit — steel mills, glass plants, cement kilns — ensure panel cooling is adequate and that the KL3454 is not positioned directly above heat-generating power supplies or drives.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with daily DHL Express and FedEx International Priority flights to major hubs worldwide.

The standard process from your order confirmation to your panel:

• Order confirmed before 14:00 CST → Same-day pick, pack, and handover to carrier.
• DHL Express / FedEx IP tracking number issued within 2 hours of dispatch.
• Southeast Asia (SG, MY, TH, VN, ID): 1–2 business days typical transit.
• Middle East (AE, SA, QA, KW): 2–3 business days typical transit.
• Europe (DE, NL, FR, PL, IT): 2–4 business days typical transit.
• Americas (US, CA, MX, BR): 3–5 business days typical transit.

All shipments include commercial invoice, packing list, and country-of-origin documentation. HS code 8537.10 applies to this module. We can provide advance shipment notification (ASN) and proforma invoice for import clearance on request. For critical single-unit emergency shipments, FedEx First Overnight to US destinations and DHL 9:00 Express to select European cities are available — contact us before placing the order to confirm availability.
