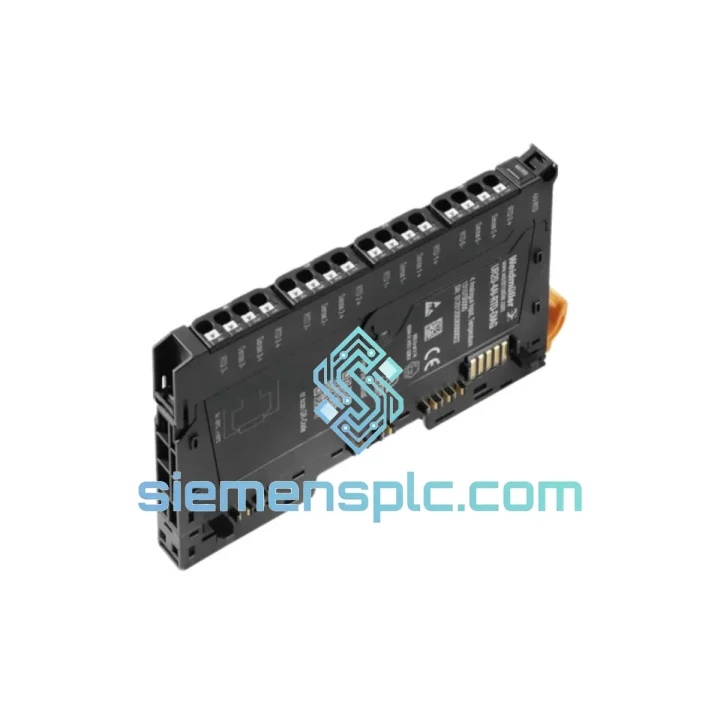

Weidmuller UR20-4DI-P 1315700000 Digital Input Module

UR20-4DI-P 1315700000 — Line Down? This Module Ships Today. Every Hour of Delay Has a Price Tag.

You already know the cost. A halted conveyor, a tripped safety interlock, a head station screaming a slot fault at 2 AM — the UR20-4DI-P is the weak link that just snapped. The question is not what failed. The question is how fast you can get a verified replacement into that slot and get production back online.

We stock the Weidmuller UR20-4DI-P (Part No. 1315700000) in our Xiamen warehouse. Not on consignment. Not on a 6-week European lead time. On the shelf, tested, and ready to pack the moment you confirm. Our dispatch team hands sealed units to DHL Express the same afternoon for orders confirmed before 15:00 CST. That is the difference between a shift lost and a shift saved.

This is a 4-channel PNP (P-switching) 24 V DC digital input module for the Weidmuller u-remote decentralized I/O system. It mounts on a 35 mm DIN rail backplane, uses tool-free push-in spring clamp wiring, and requires zero address configuration — the head station handles slot mapping automatically. Swap the module, reconnect field wires, clear the fault. That is the entire procedure.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on u-remote systems produce a very short list of recurring failure modes for the UR20-4DI-P. Here is what to verify before you pull the module — and exactly how to execute the swap when you confirm it is dead.

Symptom: Head Station Reports Slot Configuration Error or Module Missing Fault
The head station (UR20-FBC-PN, UR20-FBC-EIP, or similar) flags a slot mismatch or module absence diagnostic. Before condemning the module, check the 24 V DC field supply rail feeding that module group — a blown fuse on the field power bus will produce an identical diagnostic. Confirm field voltage at the module’s power terminals. If voltage is present and all four channel LEDs are dark with confirmed live field signals, the module’s internal input circuit has failed. Replace.

Symptom: One or More Channels Stuck HIGH with No Field Signal Present
Disconnect the field wiring at the push-in terminals for the affected channel. If the channel input still reads HIGH in your PLC with no wire connected, the input optocoupler is shorted — this is an internal hardware failure, not a wiring issue. The module must be replaced. Do not waste time re-checking the sensor or cable; the fault is inside the module.

Symptom: Intermittent Channel Dropout Under Vibration
This is almost always a loose push-in terminal, not a module failure. The spring clamp requires the conductor to be fully inserted to the stop mark. Re-seat the field wires with a firm push until you feel the click. If dropout continues after re-seating, check for conductor strand breakage at the terminal entry point — a common result of repeated flexing on mobile machinery.

Hot-Swap Replacement Procedure:

1. Verify whether your head station supports hot-swap (most UR20 head stations do — check the head station datasheet for the “Module Hot-Swap” specification). If supported, the backplane bus can remain energized.
2. De-energize the 24 V DC field supply to the module group being replaced. This is mandatory regardless of hot-swap capability — you are working on live field wiring.
3. Photograph or label all field wire positions before disconnecting. The push-in terminals release with a 3 mm flat-blade screwdriver inserted into the orange release slot.
4. Slide the UR20-4DI-P laterally off the backplane rail. The module unclips without disturbing adjacent modules or their wiring.
5. Slide the replacement 1315700000 into the same slot position. The backplane connector is mechanically keyed — it cannot be inserted incorrectly.
6. No DIP switch setting. No address configuration. No firmware flash. The u-remote system uses automatic slot-based I/O mapping. The head station detects the new module within one bus scan cycle (typically under 10 ms on PROFINET). Your PLC program requires no modification.
7. Reconnect field wiring in the original positions. Re-energize the field supply. Observe the channel LEDs — each active input should illuminate green within one scan cycle.
8. Clear the module fault in your PLC or DCS. Confirm all four channels respond correctly to field signals before returning the line to production.

Note on Firmware: The UR20-4DI-P carries no user-accessible firmware. All protocol stack and diagnostic handling resides in the head station. A replacement 1315700000 module is immediately operational with any existing head station configuration — no engineering workstation connection required at the module level.

Reliability in Harsh Conditions

The UR20-4DI-P was not designed for a climate-controlled server room. It was designed for the inside of a panel on a steel billet caster, a coastal desalination plant, or a cold-chain conveyor running at -15 °C. The specifications reflect real industrial operating envelopes, not marketing headroom.

Mechanical Integrity Under Vibration: The push-in spring clamp terminal technology maintains consistent contact force independent of vibration amplitude. Unlike screw terminals that loosen under cyclic mechanical load, the spring clamp applies constant clamping force to the conductor. The module-to-backplane latch is a positive mechanical engagement — it does not work loose from press vibration, conveyor harmonics, or transport shock during panel relocation.

Thermal Performance: The -25 °C to +60 °C operating range covers outdoor field cabinets in northern European winters and non-air-conditioned machine rooms in tropical manufacturing environments. The internal component selection is rated to this envelope, not just the housing. Thermal cycling between these extremes does not degrade the backplane connector contacts or the spring clamp terminals.

EMC Immunity: The UR20-4DI-P meets EN 61000-6-2 for industrial electromagnetic immunity. The galvanic isolation between the channel group and the backplane bus is a critical protection layer in environments with large VFDs, servo drives, or resistance welding equipment. A noise event on the field wiring side cannot propagate onto the backplane bus and corrupt other modules in the station.

Humidity and Condensation Tolerance: IP20 protection is the module’s own rating — it is designed to operate inside a sealed enclosure. The u-remote architecture explicitly supports split installations where the head station and I/O modules are inside an IP65 or IP67 cabinet while field connections exit through cable glands. This is the correct installation method for wash-down, outdoor, or high-humidity environments.

Long-Term Backward Compatibility: Weidmuller has maintained full mechanical and electrical backward compatibility across the u-remote product generation. A 1315700000 module purchased today installs directly into a backplane rail commissioned a decade ago. No panel re-engineering, no head station firmware update, no GSDML re-import is required for a like-for-like module replacement.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model. For orders confirmed before 15:00 CST with a verified delivery address, the module is packed, documented, and handed to the carrier the same afternoon. Here is the exact sequence from your order to your cabinet:

Confirmation (0–30 min): Contact us by email or WhatsApp with your delivery address and required-by date. We confirm physical stock availability and issue a proforma invoice within 30 minutes during business hours (08:00–18:00 CST, Monday–Saturday).

Export Documentation (30–90 min): We prepare the commercial invoice, packing list, and HS code declaration (HS 8538.90) in parallel with packing. For EU-bound shipments, the CE declaration of conformity is included. For US imports, we pre-flag the HTS code and ECCN classification to prevent CBP holds at the port of entry.

Carrier Dispatch: DHL Express and FedEx International Priority are our primary carriers for urgent industrial parts. Indicative transit times from Xiamen: Southeast Asia 1–2 business days, Europe 3–4 business days, North America 3–5 business days, Middle East 2–3 business days, Australia 3–4 business days. For extreme time-critical situations, airport-to-airport freight with local courier pickup at destination is available on request.

Tracking and Monitoring: The AWB number is sent to you within 2 hours of dispatch. We actively monitor shipment status and notify you proactively of any customs holds or carrier exceptions — you are not left managing a tracking number alone while your line is down.

Post-Delivery Support: If the delivered unit has any issue, contact us immediately. We maintain replacement stock and can dispatch a second unit before the first is returned. Our goal is your line running, not a returns process.

We have shipped u-remote replacement modules to automotive plants in Germany, petrochemical facilities in Saudi Arabia, food processing lines in Australia, and semiconductor fabs in Taiwan. The process is identical every time — documented, fast, and traceable end to end.
