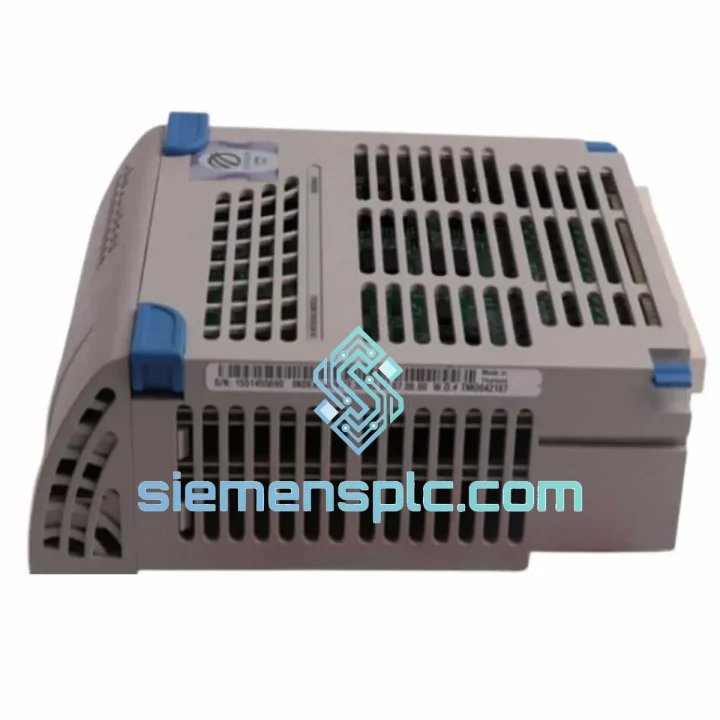

Westinghouse 1C31116G01 Analog Input Module

Westinghouse 1C31116G01 — Every Minute Offline Costs You Money. We Ship in 24 Hours.

Your WDPF system is down. The control room is dark on that loop. Maintenance is standing by. You’ve already spent two hours chasing the fault to a dead 1C31116G01 analog input card — and now the clock is running on your production loss. This is exactly the scenario we exist for.

We stock the Westinghouse 1C31116G01 in our Xiamen warehouse. Not on order. Not inbound next week. On the shelf, tested, and packed. Orders confirmed before 14:00 CST ship the same day via DHL Express or FedEx International Priority. We’ve put this exact card on a plane to power stations in the Gulf, refineries in Southeast Asia, and paper mills in Scandinavia — all on emergency timelines. Your plant doesn’t have to be the exception.

One call or message is all it takes to get a dispatch commitment in writing before you pay.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1C31116G01 fails in predictable patterns. Knowing which fault signature you’re looking at cuts your diagnosis time from hours to minutes.

Fault signatures and what they actually mean:

• “BAD AI” card alarm at the WDPF operator station — the card has lost communication with the data highway or its A/D converter has failed internally. Before condemning the card, power-cycle the rack slot once. If the alarm clears and returns within 30 minutes, the card is done.
• All 16 channels frozen at the same stale value — the input multiplexer IC has failed. This is not a field wiring issue. The transmitters are fine. Replace the card.
• Channels dropping in groups of four (e.g., CH1–4 or CH13–16) — a failed input buffer bank. This failure mode accelerates with age and thermal cycling. Partial channel loss is the early warning; total card failure follows within weeks if not addressed.
• COMM FAIL alarm with no field changes — the card has lost its slot address registration on the WDPF highway. Power-cycle the slot. If it re-registers and holds for more than 24 hours, monitor closely. If it drops again, the card’s highway interface logic is degrading.
• Calibration drift on specific channels only — precision resistor network degradation on the affected channel bank. Recalibration will not hold. Replace the card and recalibrate the loop at the transmitter.

Replacement procedure — field-verified sequence:

1. At the DCS console, place every control loop fed by this card into manual mode. Verify each loop is holding its manual setpoint before proceeding. Do not rely on automatic fallback — confirm it manually.
2. Record the physical slot number. The 1C31116G01 uses backplane auto-addressing — the replacement card inherits the slot address on power-up. No jumper or DIP switch configuration is needed for standard WDPF racks.
3. Ground yourself with a wrist strap before touching the card. The analog front-end is ESD-sensitive. Handle by the ejector levers only — never touch the PCB edge connectors.
4. Extract the failed card and insert the replacement. Seat it firmly until both ejector clips engage with an audible click. A card that is 90% seated will power up and report intermittent channel errors — a trap that wastes hours.
5. After insertion, wait 90 seconds for the card to complete its internal self-test and re-register on the WDPF data highway. Watch for the green STATUS LED to go solid and steady. A flashing STATUS LED indicates the self-test is still running or has found a fault.
6. At the operator station, verify all 16 channels are reading live values that match your field instruments. Do not return loops to automatic based on the DCS display alone — cross-check at least two channels against local gauges or handheld calibrators before releasing.
7. Firmware compatibility check: If your WDPF system runs firmware earlier than R4.x, verify the replacement card’s firmware revision label matches the other cards in the same I/O node. Mixed firmware revisions within a single node can introduce scan-rate anomalies that are difficult to trace. Contact us before ordering if you need a specific firmware revision — we can advise on what we have in stock.

Reliability in Harsh Conditions

The WDPF platform was not designed for office environments. The 1C31116G01 was built to run continuously in power generation, petrochemical, and heavy process facilities — places where temperature swings, vibration, and atmospheric contamination are daily operating conditions, not edge cases.

The analog front-end uses precision resistor networks with a temperature coefficient below 25 ppm/°C. Across the full 0–60 °C operating range, measurement accuracy holds without recalibration. In turbine halls where ambient temperature can swing 30 °C between a cold startup and full-load operation, this matters more than the datasheet suggests.

The optical isolation barrier between field inputs and the backplane bus is rated at 1500 V RMS. In power plant environments where lightning strikes on field cabling are a seasonal reality, this isolation is the difference between replacing one card and replacing an entire I/O node. Ground fault events on the field side stay on the field side.

Vibration resistance is validated to IEC 60068-2-6 — sinusoidal vibration, 10–150 Hz, 1 g. The card’s through-hole construction on all critical analog components eliminates the solder joint micro-fracture failure mode that plagues surface-mount-only designs in high-vibration installations. Turbine hall mounting is not a concern.

Humidity performance is rated to 95% RH non-condensing. The PCB conformal coating provides a secondary barrier against moisture ingress and corrosive atmospheric contaminants — H₂S and SO₂ exposure common in petrochemical and pulp-and-paper environments. Cards that lack conformal coating show measurable leakage current degradation within 18 months in these atmospheres.

Every unit we dispatch — new surplus or tested refurbished — completes a 4-hour elevated-temperature burn-in before final inspection and packing. Infant mortality failures are caught in our warehouse. Not in your rack, not during a startup, not at 02:00 on a Sunday.

Global Express Logistics

Our warehouse operates out of Xiamen, Fujian, China — a tier-one logistics hub with daily international freight departures via DHL Express, FedEx International Priority, and UPS Worldwide Express. Transit times to major industrial regions are consistent and predictable.

Dispatch and transit schedule:

• Order confirmed before 14:00 CST → same-day dispatch, tracking number within 2 hours
• Order confirmed after 14:00 CST → next business day dispatch
• Europe / Middle East / Southeast Asia → 2–4 business days via DHL Express
• North America / Australia → 3–5 business days via FedEx International Priority
• South Asia / Africa → 4–6 business days, carrier selected by destination

Every shipment includes:

• Commercial invoice and packing list formatted for customs clearance
• ESD anti-static inner bag with foam-lined outer carton — no bare boards in transit
• Pre-shipment photo documentation available on request before dispatch
• Export declaration compliant with Chinese customs regulations (HS Code: 8537.10)
• Written dispatch confirmation with tracking number before courier collection

If your plant has a hard shutdown deadline, contact us on WhatsApp before placing the order. We will confirm physical stock, prepare the shipment, and issue a written dispatch commitment — time-stamped and specific — before you pay. We do not quote lead times we cannot meet.
