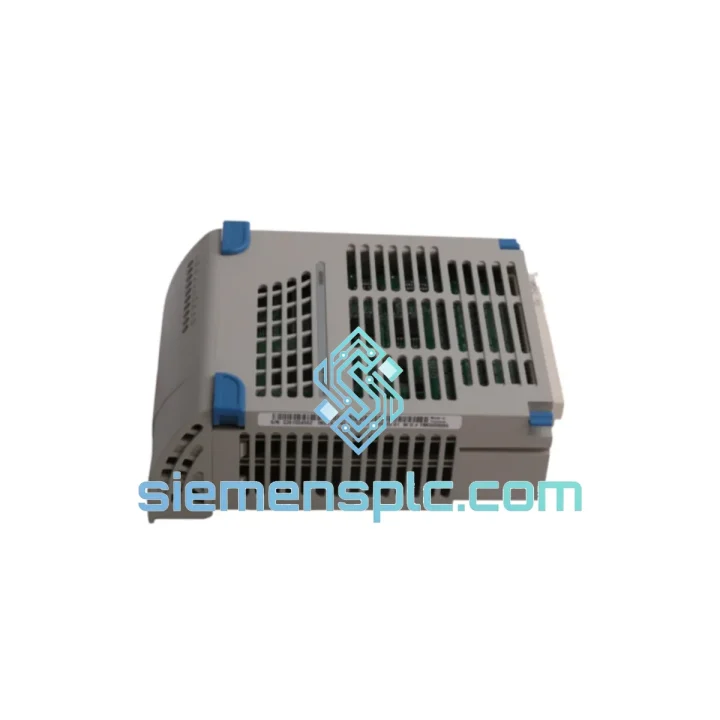

Westinghouse 5X00226G03 I/O Interface Controller

Westinghouse 5X00226G03 WDPF I/O Interface Controller — Stop the Clock on Your Unplanned Outage

Every hour your plant sits idle waiting on a control system part, you’re bleeding money. A failed Westinghouse 5X00226G03 in a WDPF rack doesn’t just interrupt a process loop — it can cascade into a full unit trip, forcing your operations team into emergency mode while procurement scrambles. We’ve been on that plant floor. We know what 3 AM looks like when the DCS alarm board is lit up red.

This is why we stock the 5X00226G03 in Xiamen, ready to pull, test, and ship within hours of your order confirmation. No waiting on OEM lead times. No back-and-forth with a distributor who has to “check with the warehouse.” You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5X00226G03 is a field-replaceable unit, but a blind swap without checking configuration will cost you another hour of downtime. Here’s what 10 years of WDPF field work has taught us:

Common Failure Signatures

• WHB Communication Loss (Error Code: WHB FAIL / NODE OFFLINE) — The module stops responding on the WDPF data highway. Before condemning the card, check the WHB termination resistors at both ends of the highway segment. A degraded terminator mimics a dead I/O controller.
• Intermittent I/O Dropout — Typically caused by backplane connector oxidation or a cracked solder joint on the edge connector. Reseat the card first. If dropout persists under vibration, the card is the culprit.
• POWER LED On, STATUS LED Off — The module is receiving backplane power but failing its internal self-test. This is a definitive card failure. Replace immediately.
• Node Address Conflict — After inserting a replacement 5X00226G03, the WDPF OWS may report a duplicate node address. Verify the rotary address switches (SW1/SW2 on the card face) match the failed unit’s node assignment exactly. The WDPF system does not auto-assign addresses — this is a manual step that is frequently missed during emergency swaps.

Replacement Procedure (Field-Verified)

• 1. Document the failed card’s node address from the OWS node map before pulling the card.
• 2. Power down the affected WDPF rack segment if hot-swap is not confirmed for your revision level. Early WDPF revisions do not support live insertion.
• 3. Set SW1 and SW2 on the replacement 5X00226G03 to match the original node address. Double-check against the plant’s WDPF node assignment sheet.
• 4. Seat the card firmly — WDPF backplane connectors require deliberate pressure. A half-seated card will power up but fail communication.
• 5. Restore rack power and observe the STATUS LED. Solid green within 30 seconds indicates successful initialization and WHB acquisition.
• 6. Confirm all associated I/O points are reading correctly at the OWS before returning the loop to automatic control.

Firmware Note: The 5X00226G03 carries embedded firmware tied to the G03 revision suffix. Do not substitute a G01 or G02 variant — the revision suffix denotes hardware and firmware differences that affect WHB protocol handling. Mixing revisions in the same WDPF segment has caused intermittent communication faults in the field.

Reliability in Harsh Conditions

The WDPF platform was engineered for power generation environments — not office-grade control rooms. The 5X00226G03 reflects that design philosophy. The card’s conformal-coated PCB resists moisture ingress from steam leaks and humidity swings common in turbine halls and boiler rooms. The edge connector is gold-plated to maintain low-resistance contact even after years of thermal cycling that causes lesser connectors to oxidize and fail.

Vibration is the silent killer of rack-mount electronics. WDPF modules were qualified to withstand the continuous low-frequency vibration present near large rotating machinery — turbines, compressors, and pumps. The 5X00226G03’s component mounting and PCB layout were designed with this in mind, using through-hole construction for critical components rather than surface-mount, which is inherently more resistant to vibration-induced solder fatigue.

Thermal management is handled passively through the WDPF rack’s forced-air cooling system. The card’s operating range of 0°C to 60°C covers the full envelope of industrial control room environments, including those in tropical climates where ambient temperatures push the upper boundary. Units in our Xiamen stock are stored in climate-controlled conditions and inspected before dispatch to ensure no thermal stress damage from improper storage.

Global Express Logistics

Our Xiamen warehouse is positioned for fast international dispatch. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx international hubs, enabling next-flight-out shipments to most major industrial regions within 24–48 hours of order confirmation.

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): DHL Express / FedEx International Priority — typically 1–2 business days door-to-door.
• Middle East (UAE, Saudi Arabia, Kuwait): FedEx International Priority — typically 2–3 business days. We handle all commercial invoice and packing list documentation for customs clearance.
• Europe (Germany, Netherlands, UK, Poland): DHL Express — typically 3–4 business days. We declare accurate HS codes (8537.10) to prevent customs holds.
• North America (USA, Canada, Mexico): FedEx International Priority — typically 3–5 business days. We can provide a commercial invoice formatted for US Customs CBP entry.
• South America (Brazil, Chile, Colombia): DHL Express — 4–6 business days. We advise on import duty implications for industrial automation components in your jurisdiction.

Every shipment includes full tracking from pickup to delivery, ESD-safe anti-static packaging, and a printed inspection report. For plant shutdowns with hard restart deadlines, contact us directly on WhatsApp for real-time coordination — we have shipped parts on the same day for customers with critical outage windows.
