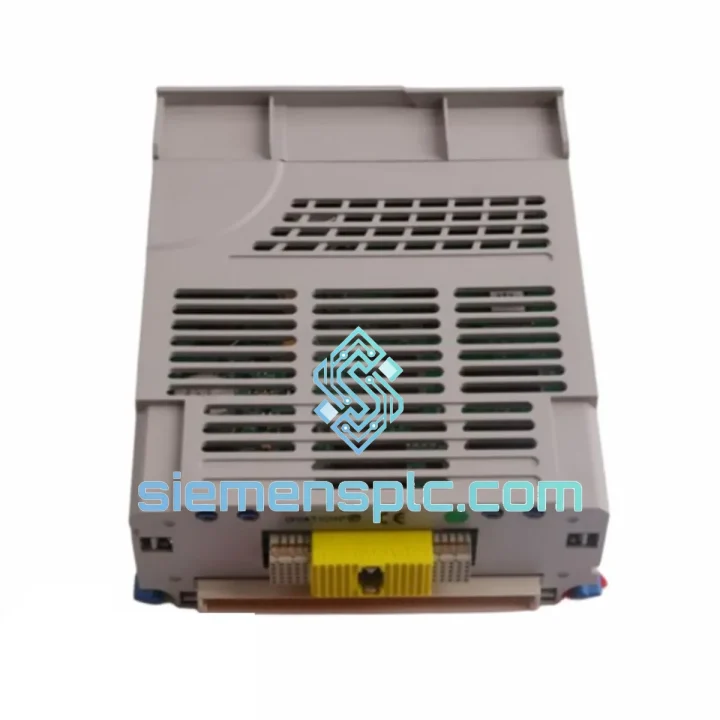

WESTINGHOUSE 1C31129G03 Analog Output Module – Ovation DCS

WESTINGHOUSE 1C31129G03 — Precision Analog Output Module for Ovation DCS Control Loops

The WESTINGHOUSE 1C31129G03 is a diagnostics-integrated analog output module purpose-built for the Ovation Distributed Control System platform, originally developed by Westinghouse Process Control and subsequently maintained under Emerson’s industrial automation portfolio. Within a continuous process control architecture, this module occupies the final output stage of the control loop: it receives digital setpoint data from the Ovation Controller via the proprietary I/O backplane bus, converts that data through an onboard 12-bit digital-to-analog converter, and drives a precision 4–20 mA current signal to field-mounted actuators, control valves, and electropneumatic positioners. The G03 revision designation indicates a third-generation hardware iteration that incorporates enhanced diagnostic circuitry and improved electromagnetic compatibility shielding relative to the G01 and G02 variants, while maintaining full backward compatibility with existing Ovation I/O chassis installations.

In power generation facilities — coal-fired boilers, gas turbine combined-cycle plants, and nuclear balance-of-plant systems — the analog output module is the physical interface between the DCS control algorithm and the mechanical world. Signal accuracy, loop integrity monitoring, and fault transparency are not optional features in these environments; they are engineering requirements. The 1C31129G03 addresses each of these requirements at the hardware level, without reliance on software polling or external field transmitters for loop health assessment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1C31129G03 implements a three-stage signal chain that begins at the backplane interface, passes through the conversion core, and terminates at the field output terminals. Understanding each stage clarifies why this module maintains output fidelity under the electrical stress conditions common to heavy industrial environments.

Backplane Bus Interface and Data Latching: The module receives setpoint data from the Ovation Controller over the proprietary parallel I/O bus. An onboard bus interface ASIC handles address decoding, data latching, and handshake acknowledgment. The latch architecture ensures that the output channel holds its last valid setpoint during any transient bus communication interruption — a critical behavior in turbine control loops where output freeze is preferable to a zero-output fault condition.

12-Bit D/A Conversion Core: The digital setpoint word is passed to a precision 12-bit D/A converter. At 12-bit resolution, the converter produces 4,096 discrete current steps across the 4–20 mA span, yielding a step size of approximately 3.9 µA per LSB. This resolution is sufficient for valve positioning applications where positioner hysteresis typically exceeds 0.1% of span, meaning the D/A resolution is not the limiting factor in loop accuracy. The reference voltage for the D/A converter is derived from an onboard precision bandgap reference, which maintains stability across the module’s full operating temperature range without requiring external calibration.

Galvanic Isolation Architecture: Each output channel is galvanically isolated from the backplane bus and from adjacent channels using transformer-coupled power supplies and optocoupler-based signal paths. This isolation topology serves two functions: it prevents ground loop currents from corrupting the 4–20 mA signal, and it protects the backplane bus from field-side transients — including inductive kickback from solenoid valve coils and electrostatic discharge events during field wiring maintenance. The isolation barrier is rated to withstand the common-mode voltage differentials encountered in large industrial installations where field devices and control panels may share different ground reference potentials.

Integrated Diagnostic Monitor Circuit: The G03 revision introduced a dedicated diagnostic monitor circuit that continuously samples the actual output current and compares it against the commanded setpoint. If the measured current deviates beyond a configurable threshold — indicating an open-circuit wire break or a short-circuit fault — the diagnostic circuit asserts a fault flag on the backplane bus. The Ovation Controller reads this flag during its normal I/O scan cycle and can trigger an alarm, initiate a safe-state output, or execute a backup control strategy without operator intervention. This hardware-level fault detection eliminates the latency associated with software-based loop monitoring, which depends on process variable feedback and may not detect a wire break until the control algorithm observes an unexpected process response.

EMC Design and Shielding: The G03 PCB layout incorporates a ground plane layer that provides a low-impedance return path for high-frequency noise currents, reducing radiated emissions and improving immunity to conducted interference from adjacent variable-frequency drives and power switching equipment. The module’s metal faceplate provides additional shielding continuity when seated in the Ovation chassis, which itself forms a Faraday enclosure for the I/O card array.

System Integration Benefits

• Deterministic Output Update Rate: The module’s output is refreshed synchronously with the Ovation Controller’s I/O scan cycle, ensuring that control algorithm output changes are reflected at the field terminals within one scan period — typically 100 ms or less in standard Ovation configurations. This determinism is essential in fast-response loops such as turbine speed control and boiler drum level control.
• Transparent Loop Diagnostics Without Additional Hardware: The onboard diagnostic circuit reports open-loop and short-circuit faults directly to the DCS historian and alarm management system. Maintenance teams can identify a broken field wire from the control room without dispatching a technician to the field, reducing mean time to repair in geographically distributed plant installations.
• Hot-Swap Capability Reduces Planned Downtime: The module supports live insertion and removal within a powered Ovation I/O chassis. A failed module can be replaced during plant operation without shutting down the associated control loop, provided the process can tolerate a brief output hold during the swap sequence. This capability is particularly valuable in continuous-process industries where planned shutdowns carry significant production cost.
• Galvanic Isolation Eliminates Ground Loop Interference: In large industrial facilities, field devices and control panels frequently operate at different ground potentials due to distributed grounding systems. The channel-to-channel and channel-to-bus galvanic isolation prevents ground loop currents from introducing offset errors into the 4–20 mA signal, maintaining output accuracy across the full installation.
• Backward Compatibility with Existing Ovation Infrastructure: The 1C31129G03 is a drop-in replacement for G01 and G02 revision modules in the same chassis slot. No controller firmware update or I/O configuration change is required when substituting the G03 for an earlier revision, simplifying spare parts management and reducing the risk of configuration errors during emergency replacements.
• Reduced Wiring Complexity via Backplane Power: The module draws its operating power from the Ovation I/O backplane bus, eliminating the need for dedicated module power wiring. This simplifies cabinet design, reduces terminal block count, and removes a potential failure point from the installation.
• Fault Status Integration with DCS Alarm Management: Diagnostic fault flags are mapped directly into the Ovation Controller’s I/O status registers, making them available to the alarm management system, the DCS historian, and any custom control logic that references the module’s health status. This integration supports IEC 62682-compliant alarm rationalization by providing hardware-sourced, unambiguous fault signals rather than inferred alarms derived from process variable behavior.
• Long-Term Parts Availability for Extended Plant Life: Many Ovation DCS installations in power generation and nuclear facilities operate on 20–40 year plant life cycles. Sourcing verified 1C31129G03 modules from qualified distributors provides a cost-effective path to maintaining I/O infrastructure without committing to a full DCS migration, which carries significantly higher engineering and commissioning costs.

Quality Assurance & Global Logistics

Every WESTINGHOUSE 1C31129G03 unit offered through siemensplc.com is sourced from verified supply channels including authorized industrial distributors, documented plant decommissions, and OEM surplus inventory. Each unit undergoes a structured incoming inspection protocol prior to listing:

• Visual and Mechanical Inspection: PCB surface examination for corrosion, component damage, solder joint integrity, and connector pin condition. Modules with evidence of unauthorized repair or component substitution are rejected.
• Revision Verification: The G03 hardware revision is confirmed against the module’s silkscreen markings and component date codes. Mixed-revision assemblies are identified and documented.
• Functional Bench Test: Where test fixtures are available, modules are powered and output channel functionality is verified against the 4–20 mA specification prior to shipment.
• ESD-Safe Packaging: Units are packaged in anti-static bags with desiccant, placed in foam-lined cartons rated for international air freight handling. Outer cartons are labeled with part number, revision, and inspection date.
• 12-Month Warranty: All units carry a 12-month operational warranty against manufacturing defects from the date of shipment. Warranty claims are processed with a replacement-first policy to minimize customer downtime.

Logistics operations are based in Xiamen, China, with established carrier accounts with DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders ship within 2–3 business days. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. Customs HS code classification and export control screening are completed prior to shipment to avoid clearance delays at destination ports. Air freight transit times to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 4–5 days.
