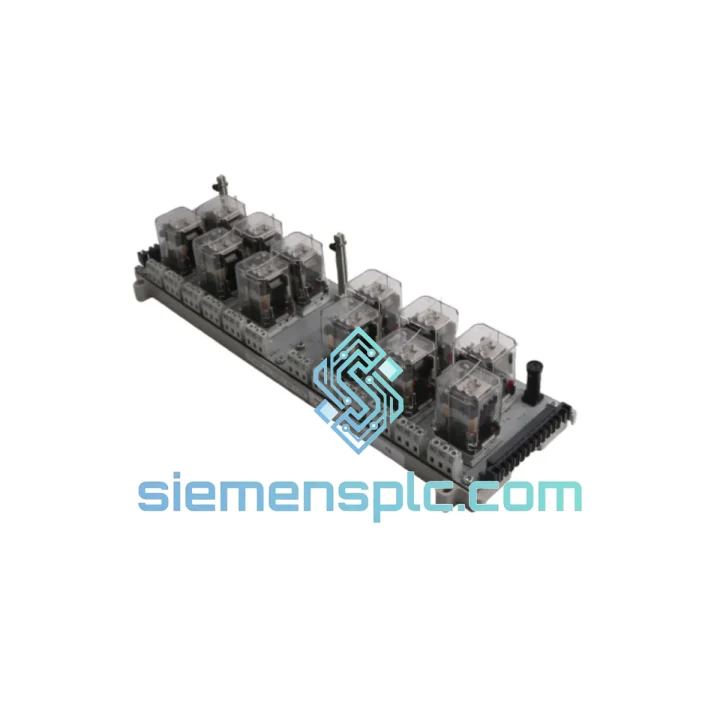

Westinghouse 1C31222G01 / 5A26458G05 Relay Output Panel — Stop the Bleeding, Get Your Line Back Up

Every minute your Ovation DCS is down, you’re burning money. Whether it’s a tripped relay, a failed output channel, or a board that simply won’t respond after a surge event — the Westinghouse 1C31222G01 (Assembly: 5A26458G05) Relay Output Panel is the part you need, and we have it on the shelf in Xiamen right now. No lead-time games, no “check back in 6 weeks.” We ship DHL/FedEx Express within 24 hours of order confirmation.

This is a genuine Westinghouse Ovation DCS relay output module — not a clone, not a grey-market substitute. It slots directly into your existing Ovation I/O rack with zero rack modification. If your plant runs coal, gas, nuclear, petrochemical, or water treatment processes on an Ovation platform, this is the exact card you need to restore control loop integrity fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of Ovation DCS field calls, here are the failure patterns we see most often with the 1C31222G01 and what to watch for during swap-out:

Common Failure Modes:

• Relay coil burnout: Typically caused by sustained overcurrent on the output loop. Before installing the replacement, verify the field device load hasn’t shorted — you’ll burn the new card the same way within hours if you skip this step.
• Stuck relay contacts: Often misdiagnosed as a controller fault. Check the Ovation diagnostic screen for “Output Disagreement” alarms on the affected channel. If the controller is commanding ON but the field device isn’t responding, the relay contact is the first suspect.
• Intermittent channel faults after vibration events: Solder joint fatigue on the relay coil pins. Visible under 10x magnification as hairline cracks around the through-hole pads. No field repair — replace the board.
• Module not recognized after insertion: 99% of the time this is a backplane connector seating issue or a firmware mismatch. See configuration notes below.

Replacement Procedure — Key Steps:

• 1. De-energize the output loop first. This is a relay output card — the field side can carry 120VAC or 24VDC depending on your wiring. Isolate before pulling the card. Do not rely on the DCS software inhibit alone.
• 2. Note the slot address. The 1C31222G01 uses backplane-based slot addressing in the Ovation I/O subsystem. The replacement card will inherit the slot address automatically — no DIP switch setting required on this model. Confirm the slot number in the Ovation Developer Studio before pulling the old card.
• 3. Check firmware compatibility. If your Ovation controller is running a version prior to R3.x, verify the replacement card’s firmware label. Cards manufactured after 2015 may carry firmware that requires R3.1 or later for full diagnostic feature support. Basic relay output function is backward-compatible, but alarm reporting may be degraded on older controller versions.
• 4. Seat the card firmly. The 1C31 backplane connector requires deliberate pressure — you should feel a positive click. A half-seated card will power up but generate intermittent I/O errors that look like a controller fault.
• 5. Force a channel scan after insertion. In Ovation Developer Studio, navigate to the I/O module, right-click, and select “Force Module Rescan.” This clears any cached fault state from the previous failed card and re-initializes the relay output map.
• 6. Verify output state before releasing to operations. Command each relay channel ON/OFF from the DCS and confirm field-side continuity with a multimeter. Don’t hand the loop back to the operator until you’ve physically verified every channel.

Reliability in Harsh Conditions

The Ovation 1C31222G01 was engineered for continuous operation in environments that would kill consumer-grade electronics. The relay output panel is designed to handle the realities of a live plant floor — not a climate-controlled server room.

• Vibration tolerance: The board layout and component selection account for the low-frequency vibration profiles common in turbine halls and compressor stations. Relay coils are potted or mechanically secured to prevent resonance-induced fatigue over multi-year service cycles.
• Thermal performance: Rated for continuous operation across the full industrial temperature range. The relay contacts are specified for thermal cycling without contact resistance drift — critical for alarm and trip circuits where a few milliohms of contact resistance can cause nuisance trips.
• Humidity and contamination resistance: The PCB conformal coating provides protection against condensation and airborne particulates common in coastal plants, paper mills, and chemical processing environments. Units stored in our Xiamen warehouse are kept in climate-controlled, anti-static conditions to preserve coating integrity.
• Electrical noise immunity: The relay output architecture provides inherent galvanic isolation between the DCS logic side and the field device side. This isolation is what makes relay outputs the preferred choice for safety-critical trip circuits where ground loops and common-mode noise from variable frequency drives (VFDs) would corrupt solid-state output signals.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order confirmed → same-day picking: Orders confirmed before 15:00 CST are picked, photographed, and packed the same day. You receive pre-shipment photos of the actual unit with serial number visible before we hand it to the courier.
• DHL Express / FedEx International Priority: Standard routing for urgent orders. Transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days. We book the fastest available service by default — no need to ask.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every shipment. HS code 8537.10 (industrial control panels/modules) is pre-classified. For markets requiring import licenses or ECCN classification, contact us before ordering.
• Customs clearance support: We’ve shipped to 40+ countries. Our logistics team handles export declarations from the China side and can provide supporting documentation to assist your import broker on the destination side.
• Tracking: AWB number sent within 2 hours of carrier pickup. We monitor the shipment and proactively flag any customs holds — you won’t be left chasing a tracking number that hasn’t updated in 3 days.
