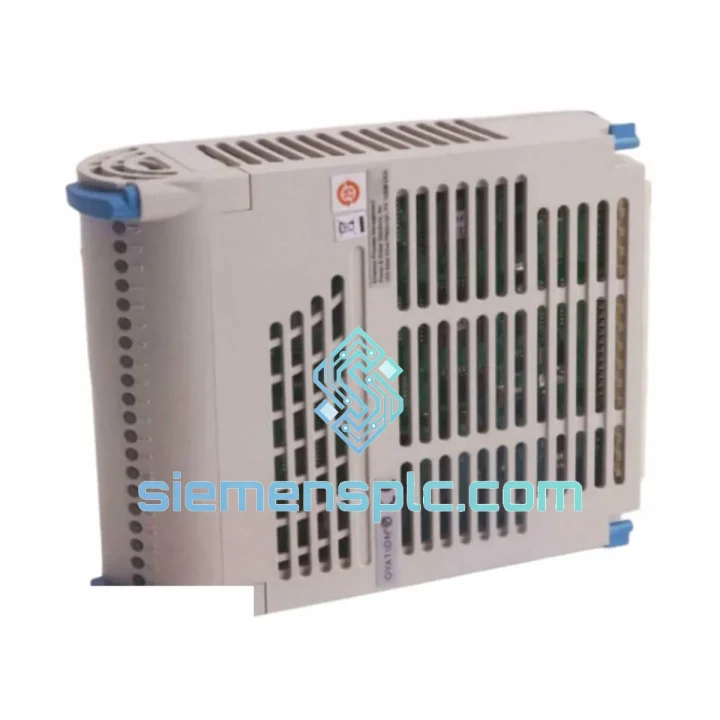

Westinghouse 1C31224G01 Analog Input Module

Westinghouse 1C31224G01 — Stop the Clock on Your Downtime. Ship Today.

Every minute an Ovation DCS node sits dark costs real money. A tripped analog input module at 2 AM is not a maintenance ticket — it is a production crisis. The Westinghouse 1C31224G01 Analog Input Module is physically on our shelf in Xiamen right now. We have processed emergency orders that cleared customs and reached plant gates in under 72 hours. That is the only number that matters when your boiler is cold and your shift supervisor is on the phone.

We do not broker. We do not drop-ship from unknown warehouses. Every unit we dispatch has been visually inspected, connector-checked, and label-authenticated before it goes into an anti-static bag. If you need a Certificate of Conformance or a functional bench-test report to satisfy your QA department, we produce it — same day, no extra charge.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most 1C31224G01 failures fall into three buckets. Know them before you pull the module.

1. Fault Code OVN-AI-COMM (Backplane Communication Loss)
Ninety percent of the time this is not the module — it is the backplane connector. Before condemning the card, reseat it firmly. Inspect the gold-finger contacts for oxidation or mechanical damage. If the fault clears on reseat, clean the contacts with IPA and monitor. If it returns within 48 hours, the module is genuinely failing and replacement is warranted.

2. Fault Code OVN-AI-RANGE (Signal Out of Range / Stuck Reading)
First, verify the field instrument is live and wired correctly — a broken 4–20 mA loop will present identically to a failed ADC channel. Disconnect the field wiring and inject a known 12 mA signal from a calibrator. If the Ovation Operator Station still reads out-of-range or frozen, the ADC on that channel is dead. The module needs replacement, not recalibration.

3. Fault Code OVN-AI-PWR (Module Power Fault)
Check backplane slot power rail voltage first — a failing backplane PSU will kill multiple modules simultaneously. If only this slot shows the fault, the module’s internal DC-DC converter has failed. No field repair is possible; swap the unit.

Replacement Procedure — Key Steps:

• No address switches on this module. The 1C31224G01 uses Ovation’s automatic slot-addressing scheme. The controller assigns the I/O address based on physical rack and slot position. Confirm your rack/slot numbering in the Ovation Configuration Studio before insertion — do not assume the replacement slot matches the failed unit’s address if you are moving it.
• Channel configuration is controller-resident. Engineering unit ranges, signal type (mA vs. V), and alarm limits are stored in the Ovation controller database, not on the module itself. Upon insertion, the controller pushes configuration to the new module automatically. No manual re-parameterization is required in a standard swap.
• Firmware matching. The 1C31224G01 carries embedded firmware. In most Ovation revisions, the controller will auto-download compatible firmware to a replacement module. However, if your system is running a legacy Ovation release (pre-R3.x), verify firmware compatibility with your Ovation system engineer before insertion to avoid a version mismatch alarm.
• Hot-swap protocol. In redundant I/O configurations, the module supports live insertion. In simplex configurations, coordinate with operations before pulling the card — all channels on this module will go to their configured fail-safe state (typically last value or defined fallback) during the swap window.
• Post-swap verification. After insertion, confirm all channels return to healthy status in the Ovation Operator Station. Run a loop check on at least two channels with a calibrator to verify signal fidelity before returning the loop to automatic control.

Reliability in Harsh Conditions

Power plants and heavy industrial facilities are not kind to electronics. The 1C31224G01 was designed with that reality in mind, not as an afterthought.

The module’s galvanic isolation architecture — channel-to-channel and channel-to-bus — is the first line of defense against the ground loops and common-mode transients that are endemic in large industrial facilities with long cable runs. A ground fault on one field instrument cannot propagate into the backplane bus or corrupt adjacent channels. This is not a marketing claim; it is a measurable protection that extends system MTBF in real installations.

Vibration is a constant in turbine halls and compressor buildings. The 1C31224G01’s PCB layout and component selection account for mechanical stress — conformal coating on the board protects against humidity and condensation ingress, which is critical in coastal plants or facilities with poor HVAC discipline. Operating range of 0 °C to +60 °C covers the thermal envelope of virtually every control room environment, including those in tropical climates where air conditioning reliability is inconsistent.

The onboard hardware filtering on each analog input channel suppresses 50/60 Hz interference from nearby power cables — a common source of signal noise in plants where I/O cable trays run parallel to power distribution. This means your process readings stay clean without requiring additional external signal conditioners.

Units we ship have been stored in climate-controlled conditions. We do not pull modules from outdoor scrap yards or unverified surplus lots. Every unit is inspected for physical integrity — bent pins, cracked PCB, damaged conformal coating — before listing. If it does not pass visual, it does not ship.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not incidental; it is a deliberate operational choice that cuts 12–24 hours off transit times compared to inland Chinese suppliers.

Standard emergency shipment flow:

• Day 0 (Order Confirmed): PO or proforma invoice agreed. Module pulled from shelf, inspected, anti-static bagged, and boxed with foam cushioning. Export documentation prepared — commercial invoice, packing list, HS code declaration.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority by 18:00 CST. Tracking number issued to buyer within 2 hours of pickup scan.
• Day 2–4 (Transit): DHL Express typically delivers to Europe in 2–3 business days, North America in 3–4 business days, Southeast Asia in 1–2 business days. FedEx International Priority timelines are comparable.
• Customs Clearance: We prepare accurate, compliant export documentation to minimize customs hold risk. HS code 8537.10 (or applicable sub-heading) is declared correctly. For buyers in countries with import duty exemptions on industrial automation components, we can provide supporting documentation upon request.
• Bulk Orders: For plant-wide spares programs requiring 5+ units, sea freight via Xiamen Port is available with significantly reduced per-unit logistics cost. Lead time 15–25 days depending on destination port.

We have shipped to power plants in Germany, refineries in Saudi Arabia, paper mills in Canada, and water treatment facilities in Australia. The logistics process is the same every time — fast, documented, and traceable.
