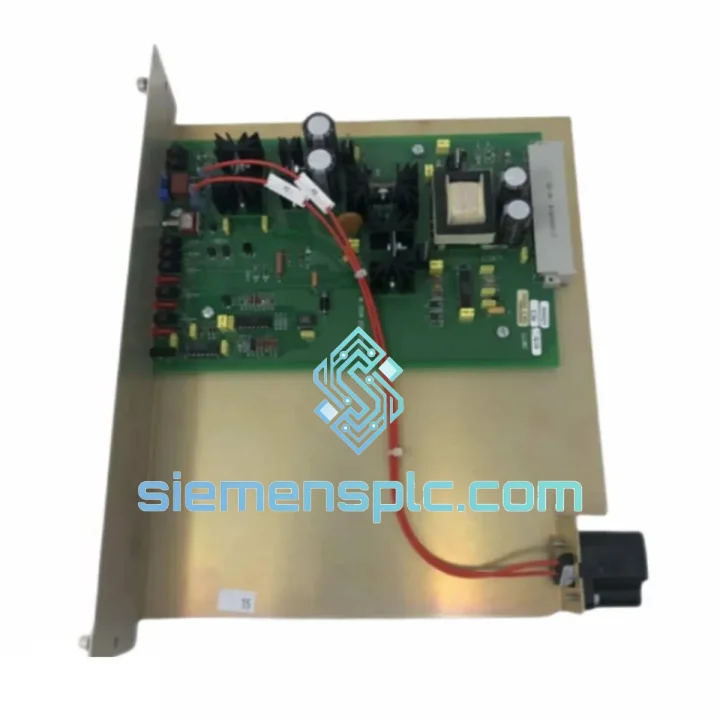

WESTINGHOUSE 3A99220G01 Power Supply Card – Ovation DCS

WESTINGHOUSE 3A99220G01 Power Supply Card: Backbone of Ovation DCS Controller Power Architecture

The WESTINGHOUSE 3A99220G01 is a dedicated power supply card engineered for the Emerson Ovation Distributed Control System platform. Within a DCS controller node, the power supply card occupies the most electrically critical slot in the backplane: it converts and conditions incoming AC or DC bus voltage into the regulated, low-noise DC rails that feed every logic board, I/O module, and communication interface in the chassis. Without a stable, well-filtered supply rail, deterministic scan-cycle execution collapses — controller jitter increases, analog input accuracy degrades, and fieldbus communication integrity is compromised. The 3A99220G01 is designed to eliminate these failure modes through hardware-level regulation and isolation architecture.

In the Ovation platform, the power supply card interfaces directly with the backplane power bus, distributing regulated voltage to the OCR-series controller modules and associated I/O cards. The card’s internal topology employs a switched-mode power supply (SMPS) design with active power factor correction, ensuring that upstream power quality variations — common in industrial substations — do not propagate into the controller logic domain. The output rails are held within tight tolerance bands, typically ±1% or better, which is a prerequisite for 16-bit analog I/O accuracy and stable fieldbus clock generation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3A99220G01 power supply card’s internal architecture reflects the design philosophy of high-availability process control: every subsystem is built to fail gracefully rather than catastrophically.

Galvanic Input-Output Isolation: The primary-to-secondary isolation barrier uses a high-frequency transformer operating in the 100–400 kHz range, which physically decouples the controller logic domain from the plant power bus. This prevents ground loops, common-mode noise injection, and transient coupling from motor drives, contactors, and variable-frequency drives (VFDs) that share the same electrical infrastructure. The isolation barrier is rated to withstand surge transients per IEC 61000-4-5, Class 3 (2 kV line-to-earth).

Active Power Factor Correction (PFC): The front-end PFC stage maintains input power factor above 0.95 across the full load range. This is not merely a utility compliance feature — in industrial environments with long cable runs and shared distribution panels, a high-PF load reduces reactive current, which in turn reduces voltage drop on the supply bus. The result is more stable input voltage to the SMPS stage, which directly improves output rail regulation under dynamic load steps.

Output Ripple Suppression: Post-regulation LC filtering on each output rail attenuates switching ripple to levels below the noise floor of the Ovation controller’s analog-to-digital converters. For a 16-bit ADC with a 10 V full-scale range, the LSB resolution is approximately 153 µV. Power supply ripple exceeding this threshold introduces quantization errors in analog input readings — a failure mode that manifests as unexplained measurement noise rather than a hard fault, making it difficult to diagnose without oscilloscope-level analysis.

Thermal Management: The card’s PCB layout routes high-current traces away from temperature-sensitive analog components. Power dissipation elements — rectifier diodes, switching FETs, and output inductors — are positioned to maximize airflow from the rack’s forced-air cooling system. The thermal design supports continuous operation at 60°C ambient without derating, which is the standard qualification requirement for Ovation DCS installations in non-air-conditioned electrical rooms.

Backplane Connector Integrity: The edge connector interface to the Ovation backplane uses gold-plated contacts with a specified insertion cycle rating. Gold plating prevents oxidation-induced contact resistance increase, which is a common failure mode in humid or coastal industrial environments. Contact resistance increase on a power supply card connector directly increases I²R losses at the backplane interface, causing localized heating and voltage drop at the load.

System Integration Benefits

• Deterministic Scan-Cycle Stability: Regulated output rails eliminate voltage-induced clock jitter in the OCR controller’s processor subsystem, preserving the deterministic scan cycle timing that process control loops depend on for PID stability.
• Analog I/O Accuracy Preservation: Clean, low-ripple supply rails maintain the reference voltage accuracy of analog input modules, ensuring that 4–20 mA and thermocouple measurements are not corrupted by power supply noise.
• Fieldbus Communication Integrity: PROFIBUS, FOUNDATION Fieldbus, and Modbus RTU transceivers on I/O cards require stable supply voltage for correct signal level generation. Rail sag or ripple causes bit errors and retransmissions that increase network latency and reduce determinism.
• Redundant Power Architecture Support: The 3A99220G01 is designed for use in N+1 redundant power configurations. Dual power supply cards in a single chassis provide automatic failover without controller restart, supporting continuous process operation during card replacement.
• Hot-Swap Replacement Capability: The card supports live replacement in redundant configurations, allowing maintenance personnel to swap a failed unit during plant operation without initiating a controlled shutdown — a critical capability in continuous-process industries.
• EMC Noise Isolation: The galvanic isolation barrier prevents conducted EMI from propagating from the plant power bus into the controller logic domain, reducing spurious I/O state changes and false alarms in safety-instrumented systems.
• Diagnostic Transparency: The Ovation DCS platform’s hardware diagnostics can monitor power supply card status via backplane communication. Voltage rail health, over-temperature conditions, and output fault states are reported to the operator workstation, enabling predictive maintenance before a hard failure occurs.
• Long-Term Platform Compatibility: The 3A99220G01 is a standard Ovation platform component with a documented hardware revision history. Replacement units sourced from authorized channels maintain full backward compatibility with existing controller firmware and configuration databases, eliminating re-commissioning risk.

Quality Assurance & Global Logistics

Every 3A99220G01 unit shipped from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection covers PCB surface condition, connector pin integrity, component seating, and housing for physical damage or evidence of prior thermal stress. Functional bench testing verifies power-on behavior and output rail presence using calibrated test equipment. Units sourced from OEM-authorized channels carry full traceability documentation including manufacturer serial numbers and batch records.

Packaging is ESD-safe: anti-static bags, foam-lined inner boxes, and double-wall export cartons rated for international air and sea freight. Export documentation — commercial invoice, packing list, certificate of origin, and HS code classification — is prepared for every international shipment. Standard dispatch is via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Emergency procurement requests are processed within 24 hours. All units carry a 12-month warranty from the date of shipment.
