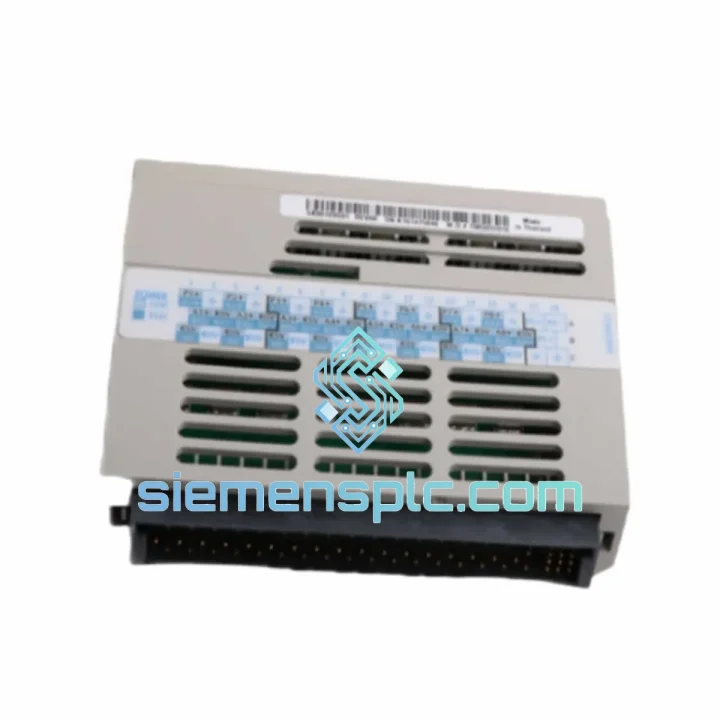

Westinghouse 5X00109G01 Digital Input Module

Westinghouse 5X00109G01 — Stop the Clock on Your Downtime. Ship Today.

Every minute your Ovation DCS is offline, you’re bleeding money. A tripped digital input module shouldn’t shut down a power plant, a refinery unit, or a water treatment facility for days while you chase parts through slow distribution channels. The Westinghouse 5X00109G01 is on our shelf in Xiamen right now. We’ve handled enough emergency callouts to know that the difference between a 6-hour fix and a 3-day nightmare is whether your replacement module ships the same afternoon you call.

This is not a catalog listing. This is a field-ready replacement sourced, tested, and packed for engineers who need it yesterday.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After pulling dozens of these cards in the field, here’s what actually matters when you’re doing a hot-swap or planned replacement of the 5X00109G01:

1. Confirm the Revision Before You Pull the Card
The G01 suffix is critical. G02 and G03 are later hardware revisions with minor circuit changes. In most Ovation 2.x and 3.x systems they are interchangeable, but on older 1.x racks running firmware below v3.2, swapping in a G02/G03 can trigger a module mismatch fault at the OCC (Ovation Controller Cabinet). Check your controller firmware version first — if you’re below v3.2, source a G01 specifically. Don’t assume upward compatibility without verifying.

2. Backplane Slot Assignment — No DIP Switches, But Address Matters
The 5X00109G01 uses automatic slot addressing via the Ovation backplane — there are no physical DIP switches to set. However, the slot position in the I/O rack is mapped in the Ovation database. If you’re replacing a failed card in the same slot, the address is inherited automatically. If you’re moving the card to a different slot (e.g., due to rack damage), you must update the I/O point assignments in the Ovation Developer Studio before the controller will recognize the new address. Skipping this step results in a persistent “Module Not Found” alarm that won’t clear on its own.

3. Common Fault Codes and What They Actually Mean
When this module fails, the Ovation system typically throws one of three diagnostic states:

• “DI Module Comm Fault” — Loss of backplane communication. First suspect: card not fully seated. Re-seat with firm, even pressure. If fault persists after re-seat, the backplane connector pins on the card may be oxidized or the backplane itself is damaged.
• “DI Channel Fault — Group X” — One or more input channels reading incorrectly. Can be caused by field wiring issues (check terminal block continuity first) or internal channel driver failure. Swap the card to confirm before condemning field wiring.
• “Module Hardware Mismatch” — Firmware/revision conflict as described above. Resolve at the controller level, not by swapping cards repeatedly.

4. Power Cycling Protocol
The 5X00109G01 supports hot-swap in most Ovation rack configurations, but verify your specific rack model supports live insertion before attempting it on a running system. On racks that do not support hot-swap, a controller-level I/O scan inhibit must be issued before card removal to prevent spurious input transitions from triggering process alarms or interlock logic.

5. Post-Replacement Verification
After seating the replacement card, confirm the following in sequence: module LED goes green within 30 seconds of power-up; all 32 channels report correct state in the Ovation operator display; no new alarms generated in the alarm summary. If any channel shows inverted logic after replacement, check the field wiring polarity — the 5X00109G01 is polarity-sensitive on its 24 VDC inputs.

Reliability in Harsh Conditions

The 5X00109G01 was engineered for continuous operation in environments that would kill consumer-grade electronics inside a week. Power generation control rooms, petrochemical marshalling cabinets, and water treatment SCADA panels are not climate-controlled offices. This module is built to handle the reality of industrial deployment:

Vibration Resistance: The card’s PCB layout and component mounting are designed to withstand the low-frequency vibration common in turbine halls and pump stations. Conformal coating on the board protects solder joints from micro-fracture under sustained mechanical stress — a failure mode that kills cheaper alternatives within 18 months of installation.

Thermal Stability: Rated for 0°C to 60°C continuous operation, the module maintains signal accuracy across the full temperature range. Internal thermal management relies on convective airflow through the Ovation rack — ensure rack fan modules are functional before blaming the I/O card for erratic readings in a hot cabinet.

Humidity and Condensation: The conformal coating provides a barrier against humidity ingress up to 95% RH non-condensing. In coastal or high-humidity plant environments, this matters. Modules sourced from uncontrolled storage without proper anti-static and moisture-barrier packaging may have compromised coating — all units we ship are stored in climate-controlled conditions and packed with desiccant.

EMI/RFI Immunity: The backplane-powered design and shielded card edge connector reduce susceptibility to electromagnetic interference from variable frequency drives, large motor starters, and welding equipment operating in the same facility. If you’re seeing intermittent channel faults that correlate with VFD operation, check your cabinet grounding before replacing the module.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected export cities on the mainland, with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

Same-Day Dispatch: Orders confirmed and paid before 15:00 CST ship the same business day. We don’t batch orders overnight. When you’re managing a plant shutdown, every hour counts and we operate accordingly.

Carrier Options:

• DHL Express Worldwide — 2–4 business days to most of Europe, Middle East, Southeast Asia, and Australia. Tracking updates every leg of the journey.
• FedEx International Priority — 1–3 business days to North America. Preferred for US and Canadian plant sites with tight maintenance windows.
• FedEx International Economy — 4–6 business days for non-urgent replenishment orders where cost matters more than speed.

Export Documentation: Every shipment includes a commercial invoice, detailed packing list, and certificate of origin — all formatted for smooth customs clearance. For orders to countries with specific import requirements (India, Brazil, Saudi Arabia), we prepare documentation proactively to avoid customs holds. If your procurement team needs an HS code for import duty calculation, the applicable code for this module is 8537.10.

Packaging: Anti-static bag, foam-lined rigid box, outer carton with fragile marking. The module arrives in the same condition it left our warehouse — we’ve shipped to offshore platforms, desert refineries, and Arctic substations without a single transit damage claim.

Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided. For urgent shipments, our logistics team monitors the shipment and proactively contacts you if any delay is detected at customs.
