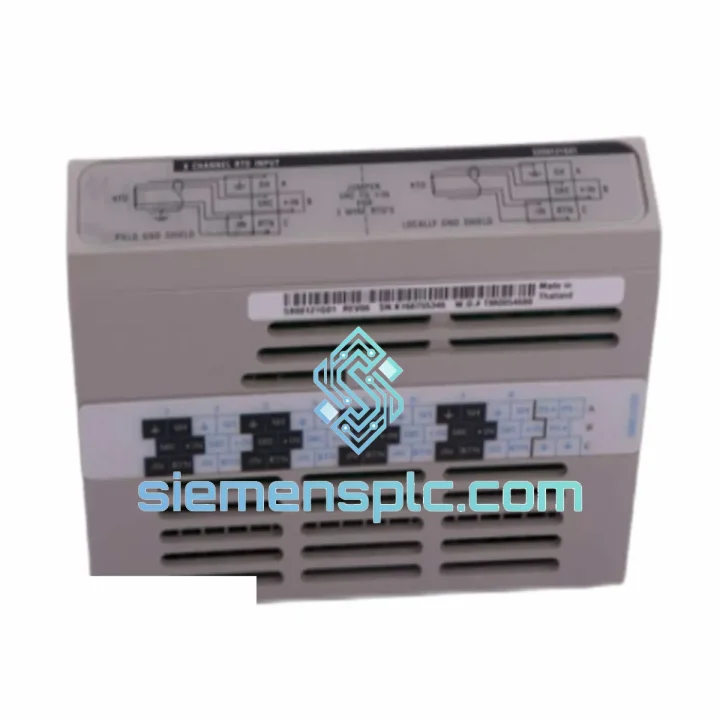

Westinghouse 5X00121G01 RTD Input Module – Ovation DCS

Westinghouse 5X00121G01 — 8-Channel RTD Input Module for Ovation DCS Process Control

The Westinghouse 5X00121G01 is an 8-channel Resistance Temperature Detector (RTD) input plug-in module (PMOD) engineered for the Ovation Distributed Control System platform. Deployed across power generation, petrochemical refining, and heavy process industries, this module performs direct RTD signal conditioning at the I/O subsystem level — removing the need for field-mounted temperature transmitters, reducing wiring infrastructure, and delivering measurement data with sub-degree accuracy directly onto the Ovation I/O bus.

Unlike generic analog input cards that require external signal conditioning, the 5X00121G01 integrates linearization, lead resistance compensation, and per-channel A/D conversion within a single PMOD form factor. Each of its eight channels is independently configurable for RTD element type and wiring topology, making it suitable for heterogeneous sensor arrays within a single enclosure slot.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5X00121G01 implements a multiplexed sigma-delta A/D architecture. A precision current source excites each RTD element in sequence; the resulting voltage drop — proportional to resistance and therefore temperature — is routed through a differential input stage before digitization. This approach eliminates the offset drift associated with single-ended measurement and rejects common-mode noise induced by long field cable runs in electrically noisy plant environments.

Lead Resistance Compensation: In 3-wire mode, the module measures the resistance of one lead and subtracts it symmetrically from the total loop resistance, correcting for cable impedance without requiring matched-pair conductors. In 4-wire (Kelvin) mode, the excitation and sense paths are fully separated, reducing lead resistance error to below the measurement noise floor for cable runs up to approximately 300 m with 0.5 mm² copper conductors.

Galvanic Isolation Architecture: Each channel pair is isolated from the Ovation I/O bus through optocoupler barriers rated for continuous operation in environments with high-frequency switching transients. This isolation topology prevents ground loop currents — a common failure mode in multi-point RTD arrays where field sensors share a common process ground — from corrupting adjacent channel readings. The isolation barrier also protects the Ovation backplane from field-side overvoltage events.

EMC Design: The module’s PCB layout routes high-impedance analog signal traces away from digital clock lines, with guard rings around the differential input stage. Ferrite beads on the backplane power rails suppress conducted emissions from the digital section. The result is a module that maintains specified accuracy in environments with radiated field strengths typical of variable-frequency drive installations and high-current bus systems.

Linearization Engine: RTD resistance-to-temperature conversion is non-linear across wide temperature spans. The 5X00121G01 applies Callendar-Van Dusen coefficients in firmware for platinum elements and equivalent polynomial tables for nickel and copper types, delivering engineering-unit output directly to the Ovation controller without requiring linearization function blocks in the control strategy.

System Integration Benefits

• Zero-transmitter field architecture: Direct RTD termination at the PMOD eliminates 4–20 mA transmitter loops, reducing installed BOM cost per measurement point and removing transmitter calibration from the maintenance schedule.
• High channel density per enclosure slot: Eight RTD inputs occupy a single PMOD position, allowing engineers to instrument dense temperature arrays — such as turbine bearing journals or multi-zone reactor beds — within a compact I/O footprint.
• Native Ovation Developer Studio configuration: Channel parameters (RTD type, wire mode, engineering units, alarm limits) are set entirely within the Ovation configuration environment. No hardware jumpers, DIP switches, or external calibration tools are required after installation.
• Deterministic scan cycle: The module delivers updated channel values to the Ovation controller on each I/O bus scan cycle, supporting control strategies that require synchronized multi-point temperature data — such as differential temperature protection schemes in power transformers or heat exchanger fouling detection algorithms.
• Diagnostic transparency: The module reports channel-level fault codes (open circuit, short circuit, out-of-range resistance) to the Ovation controller, enabling the DCS historian to log sensor degradation events and allowing operators to identify failing field sensors before they cause process upsets.
• Hot-swap compatibility: Subject to Ovation system configuration, the PMOD supports live replacement within the I/O enclosure, allowing maintenance teams to swap a failed module without shutting down the associated control loop or requiring a controller restart.
• Mixed RTD type support per module: Channels are independently configurable, so a single 5X00121G01 can simultaneously serve PT100 sensors on bearing temperature loops and Ni100 sensors on motor winding protection — reducing the number of distinct module part numbers held in spare inventory.
• Backplane power integration: The module draws operating power from the Ovation I/O backplane, eliminating the need for a dedicated 24 V DC field power supply rail for the measurement subsystem and simplifying enclosure power budgeting.

Quality Assurance & Global Logistics

Every 5X00121G01 unit offered through siemensplc.com is sourced as genuine Westinghouse-manufactured hardware. Units are inspected for physical integrity, connector condition, and label/revision traceability prior to listing. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard order processing time is 1–3 business days. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to support customs clearance in destination countries. For time-critical plant maintenance requirements, expedited same-day dispatch is available upon request. Contact the sales team to confirm current stock status and lead time before placing an order.
