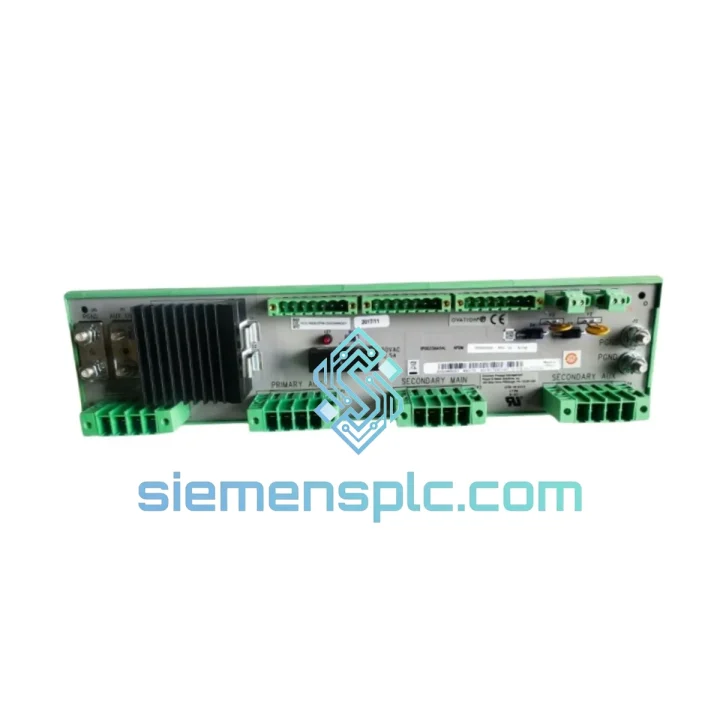

Westinghouse 5X00489G01 Power Distribution Module

Westinghouse 5X00489G01 Power Distribution Module – Stop the Clock on Your Ovation DCS Downtime

Every hour an Ovation DCS cabinet sits dark costs real money. Whether you are managing a coal-fired boiler control loop, a refinery distillation column, or a nuclear auxiliary system, a failed power distribution module does not wait for a convenient maintenance window. The Westinghouse 5X00489G01 is a rack-mount power distribution card that feeds regulated DC voltage rails to every I/O module slot on the Ovation/WDPF backplane. When it fails, the entire nest goes offline. We stock it. We ship it today.

Our Xiamen warehouse holds verified units of the 5X00489G01 ready for same-day dispatch via DHL Express or FedEx International Priority. From the moment you send an RFQ to the moment the courier hands the box to your maintenance technician, our process is built around one metric: your MTTR.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5X00489G01 fails in predictable patterns. Knowing them saves diagnostic time on the floor.

Symptom 1 – Entire I/O nest goes dark, PSU LED remains green. This is the classic signature of a failed 5X00489G01. The cabinet power supply is healthy, but the distribution card is not passing voltage to the backplane rails. Confirm with a multimeter at the backplane edge connector: if +5 V and ±15 V rails read zero while the PSU output is nominal, the 5X00489G01 is the fault point.

Symptom 2 – Intermittent I/O module dropouts on one side of the nest. The 5X00489G01 distributes power in two zones across the backplane. A partial failure — typically a degraded internal regulator or a cracked solder joint on the output filter capacitor bank — causes one zone to brown out under load. You will see sporadic “Module Not Responding” alarms on slots 8–16 while slots 1–7 remain stable, or vice versa.

Symptom 3 – Ovation controller logs fault code PWR-DIST-FAIL or equivalent WDPF diagnostic. Cross-reference with the nest’s local fault LED. If the PWR indicator on the nest faceplate is amber or flashing, the distribution module is the first component to swap before suspecting the PSU or backplane traces.

Replacement Procedure (Cold Swap):

1. Coordinate with the control room operator to place the affected controller in manual or transfer to redundant path before de-energizing the nest.
2. De-energize the cabinet section feeding this nest. Verify zero-energy state with a calibrated meter at the PSU output terminals.
3. The 5X00489G01 is retained by two captive screws on the faceplate. Loosen both, then pull the module straight out along the card guide rails — do not rock or twist, as the backplane connector is a high-density 96-pin DIN type.
4. Inspect the backplane connector on the nest for bent pins or carbon tracking before inserting the replacement unit.
5. Slide the new 5X00489G01 fully home until the faceplate is flush. Tighten both captive screws to finger-tight plus one quarter turn — over-torquing cracks the faceplate bracket.
6. Re-energize the section. Verify all nest slot LEDs return to green within 10 seconds. If any slot remains amber, check that the I/O module in that slot is fully seated before suspecting a secondary fault.
7. No firmware download or address configuration is required. The 5X00489G01 is a passive power distribution card — it carries no firmware and has no DIP switches or jumpers.
8. Return the controller to automatic and confirm process variable tracking before releasing to operations.

Note on Hot-Swap: The Ovation nest does not support hot-insertion of the power distribution module. Attempting live insertion risks a voltage transient that can latch-up adjacent I/O modules. Always cold-swap this card.

Reliability in Harsh Conditions

The 5X00489G01 was designed for continuous-process environments where ambient conditions are rarely benign. The PCB substrate is a high-Tg FR4 laminate rated for sustained operation at elevated temperatures without delamination — relevant in boiler rooms and compressor halls where cabinet ambient can reach 55 °C during summer peaks.

The output filter capacitor bank uses low-ESR electrolytic types rated at 105 °C, extending service life in thermally stressed installations compared to standard 85 °C components. The edge connector plating is gold over nickel, which resists the fretting corrosion that affects tin-plated contacts in high-vibration environments such as turbine halls and reciprocating compressor skids.

Conformal coating on the PCB assembly provides protection against humidity ingress and airborne contaminants — sulfur compounds from refinery atmospheres, chlorine derivatives in water treatment facilities, and conductive dust in cement or mining operations. Units in our stock are inspected for coating integrity before dispatch; any unit showing coating breach or PCB discoloration is quarantined and not shipped.

Vibration tolerance is consistent with IEC 60068-2-6 test profile Fc, covering the 10–150 Hz range at 1 g acceleration — sufficient for most industrial cabinet installations mounted on anti-vibration pads. For installations with direct structural vibration coupling (e.g., modules mounted on a compressor skid frame), verify that the cabinet itself meets the required isolation specification.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — a major international cargo gateway with direct DHL and FedEx hub connections. Transit times from Xiamen to major industrial regions are consistent and predictable:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes: commercial invoice with accurate HS code declaration, packing list, and — upon request — a pre-shipment test report. We handle export customs clearance from the China side. For destinations requiring an import permit or specific documentation (e.g., nuclear facility procurement compliance), notify us at the RFQ stage and we will prepare the required paperwork in advance.

Packaging: the 5X00489G01 is wrapped in anti-static poly bag, placed in a foam-lined rigid carton, and sealed with tamper-evident tape. A humidity indicator card is included inside the bag. If the card reads above 10% RH on arrival, photograph it and contact us immediately — we will arrange a replacement at no charge.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, our logistics coordinator is reachable on WhatsApp for real-time status updates.
