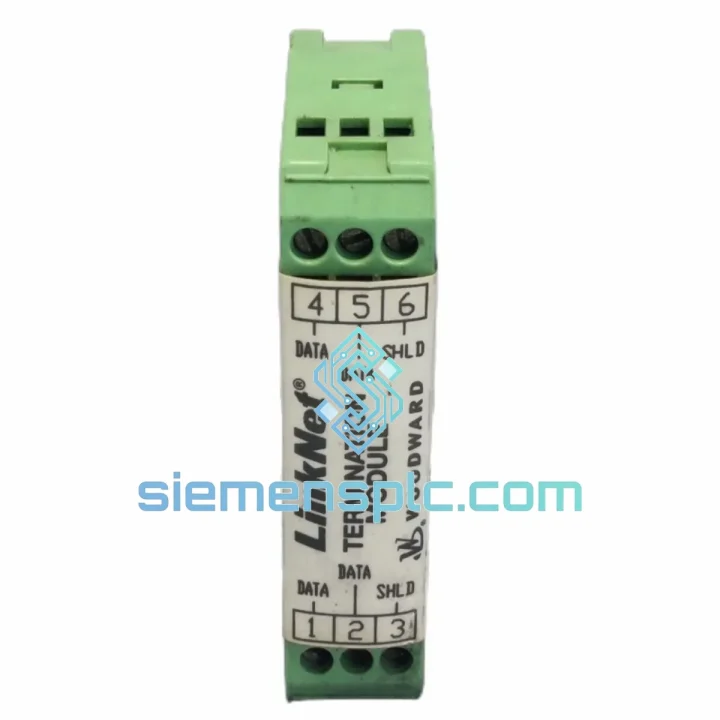

WOODWARD 9905-760 Termination Resistor Module

WOODWARD 9905-760: Stop the Bleed — Get Your Bus Back Online Before the Next Shift

Every hour your turbine control rack sits offline, the losses compound. A failed or missing bus termination module on a WOODWARD 9905 Series system doesn’t announce itself with a clean fault code — it masquerades as intermittent communication dropouts, ghost alarms, and unexplained module resets that send your team chasing ghosts across the rack. By the time the root cause is confirmed as the 9905-760 Termination Resistor Module, you’ve already burned half a shift. We stock it. It ships today.

The 9905-760 is the physical-layer anchor of the WOODWARD 9905 Series communication bus. Without it seated correctly at the terminal position of the rack, signal reflections propagate back through the backplane, corrupting data frames between the controller and every I/O module downstream. The result is a system that appears to be running but is silently degrading — until it isn’t. Replacing this module is a 10-minute job. Getting the right part to your site is where most teams lose days. We cut that to hours.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom pattern that points to a failed 9905-760:

• Intermittent “Communication Loss” or “Module Not Responding” faults on the WOODWARD HMI with no clear hardware failure on the flagged module itself.
• Fault codes that clear on power cycle but return within minutes to hours — classic reflection-induced data corruption behavior.
• Multiple modules reporting faults simultaneously, especially those at the far end of the backplane from the controller card.
• Oscilloscope readings on the bus showing ringing or overshoot on the trailing edge of data pulses — direct evidence of missing termination impedance.

Replacement procedure — field-tested steps:

1. Confirm safe state: Place the turbine or generator unit in manual/local control and verify the process is in a safe hold condition before touching the rack. Do not hot-swap this module without confirming the system supports it — most 9905 Series installations require a controlled shutdown.
2. Document the slot position: Photograph the rack before removal. The 9905-760 must be reinstalled in the designated termination slot — typically the last slot on the right side of the backplane. Installing it in the wrong slot will not provide termination and may cause a slot conflict fault.
3. No DIP switch or address configuration required: The 9905-760 is a passive module. There are no rotary switches, DIP banks, or firmware parameters to set. Seat it, secure the locking lever, and power up.
4. Post-installation verification: After power-up, confirm all previously faulting modules return to “OK” status within the first communication scan cycle (typically under 5 seconds). If faults persist, check backplane connector pins for corrosion or bent contacts — the termination module itself is rarely the only casualty in a rack that has been running degraded for an extended period.
5. Firmware note: The 9905-760 carries no firmware. No firmware matching or download procedure is required. This is a passive resistor assembly — the only compatibility requirement is the correct 9905 Series rack form factor.

Reliability in Harsh Conditions

WOODWARD designed the 9905 Series for deployment in environments that would destroy consumer-grade electronics within weeks. The 9905-760 Termination Resistor Module is built to the same standard. The passive resistor network inside is encapsulated against moisture ingress — a critical requirement for offshore platforms and coastal power plants where salt-laden air accelerates corrosion on exposed PCB traces. The module housing is rated for the vibration profiles encountered in gas turbine enclosures, where mechanical resonance from the turbine itself is a constant stress on rack-mounted electronics.

Thermal performance is equally robust. Control rooms in oil & gas facilities and marine engine rooms routinely exceed 50°C ambient during summer operations or when HVAC systems are degraded. The 9905-760’s passive design means it generates no self-heat and its resistor network maintains stable impedance across the full industrial temperature range. There are no electrolytic capacitors to dry out, no active ICs to latch up under voltage transients, and no firmware to corrupt. It either works or it doesn’t — and when it doesn’t, replacement is the only action required.

Units sourced through our Xiamen warehouse are inspected for physical integrity, connector condition, and label authenticity before dispatch. Anti-static packaging with foam cushioning is standard on every shipment. We do not ship loose modules in bubble wrap.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct access to DHL, FedEx, and UPS international express networks. For critical shutdown situations, we offer same-day dispatch on orders confirmed before 15:00 CST, with DHL Express or FedEx International Priority as the default carrier for urgent shipments.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of conformance. For customers in regulated industries requiring additional documentation — material traceability reports, country-of-origin certificates, or customs pre-clearance support — contact us before placing the order and we will prepare the documentation package in parallel with dispatch.

We have experience shipping to sites under active shutdown conditions where customs clearance speed is critical. We can pre-advise shipments, provide AWB numbers within 2 hours of dispatch, and coordinate with your local freight forwarder if required. When every hour of downtime costs more than the part itself, logistics execution is not an afterthought.
