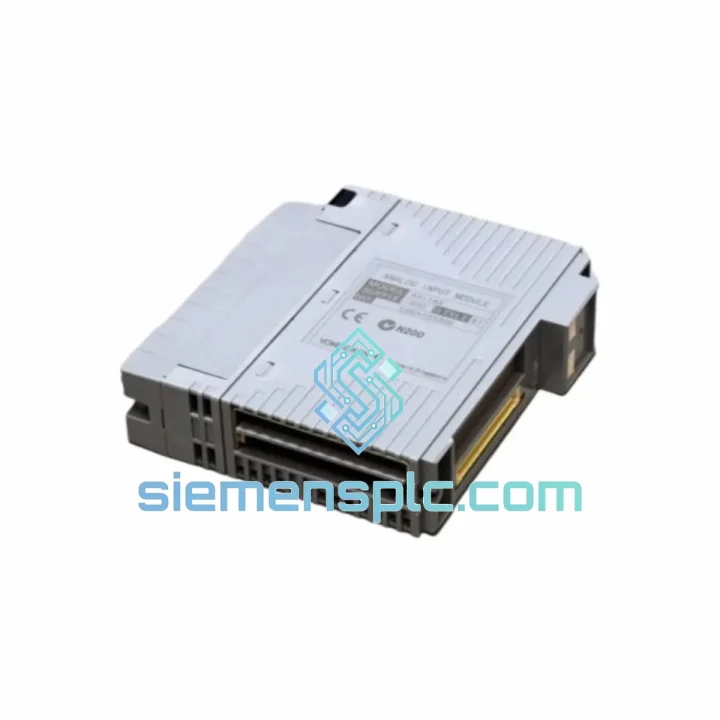

YOKOGAWA AAI143-S00 S1 HART Analog Input Module

YOKOGAWA AAI143-S00 S1 — Stop the Bleed: Get Your DCS Loop Back Online Before the Next Shift

Every minute a CENTUM VP or CS 3000 field control station sits with a faulted I/O card, your process is either running blind or not running at all. The YOKOGAWA AAI143-S00 S1 is a 16-channel HART-enabled analog input module — and we have it on the shelf in Xiamen right now. No lead-time negotiation with the OEM. No waiting three weeks for a factory order. You call, we ship, your loop comes back up.

We’ve seen this failure mode dozens of times: a single AI card takes out an entire FCS nest, the on-call engineer pulls the card at 2 AM, and procurement can’t source a replacement until Monday. That gap costs real money — in lost throughput, in emergency labor, in regulatory exposure. Our job is to close that gap as fast as physically possible.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on AAI143-S00 S1:

• IOM ALM / I/O Module Alarm on the HIS operator station — first thing you’ll see when the card loses communication with the FCS. Don’t assume it’s a field instrument issue; pull the card and inspect the bus connector pins for corrosion or mechanical damage.
• All 16 channels reading 0 mA or pegged at 20 mA simultaneously — classic sign of a failed A/D converter or internal power rail fault. Individual channel failures are more likely a field wiring issue; simultaneous failure of all channels points to the card itself.
• HART communication dropout on specific channels — check the HART filter capacitors on the terminal block side first. If the issue persists after re-termination, the HART modem circuit on the card may be degraded.
• Intermittent ALM that clears on power cycle — often caused by ESB bus connector oxidation. Clean the gold-finger connector with IPA before condemning the card.

Hot-swap replacement procedure (CENTUM VP):

1. Confirm the FCS is in MANUAL or the affected loops are suppressed at the HIS before pulling the card — never yank a live AI card in an active control loop without suppressing the alarms first.
2. Note the slot address (node number + slot number) from the system builder or the physical label on the I/O nest. The AAI143 uses auto-addressing via the ESB bus — no DIP switch setting required for slot assignment on CENTUM VP.
3. On CS 3000 with older ER bus nests, verify the node address rotary switch on the nest itself matches your system builder configuration before inserting the replacement card.
4. Insert the replacement AAI143-S00 S1 firmly until the card-lock lever clicks. The FCS will auto-detect the module within 30–60 seconds and begin downloading the I/O configuration.
5. Verify channel-by-channel in the FCS diagnostic screen. HART device recognition may take an additional 60–90 seconds per channel depending on the number of HART devices on the loop.
6. Confirm firmware compatibility: AAI143 firmware is embedded and non-user-upgradeable. If your system builder reports a firmware mismatch, contact YOKOGAWA or your authorized integrator — do not force-download.
7. Return loops to AUTO one at a time, monitoring PV values against field readings before releasing control.

Suffix validation before ordering: S1 = CE-marked. If your plant is in the EU, Middle East (CE-required projects), or any IECEx-governed zone, you must specify S1. Substituting S00 (non-CE) in a CE-required installation is a compliance violation — not just a paperwork issue.

Reliability in Harsh Conditions

The AAI143-S00 S1 was engineered for the environments where DCS hardware actually lives — not a clean server room, but a petrochemical marshalling cabinet running at 45°C ambient with vibration from nearby compressors and humidity swings from coastal or tropical climates.

The module’s conformal-coated PCB provides a barrier against condensation and airborne contaminants — sulfur compounds, chlorine, and particulate matter that are endemic to refinery and chemical plant environments. The bus connector uses gold-plated contacts rated for thousands of insertion cycles, which matters when you’re doing annual PM card pulls.

Vibration tolerance is validated to IEC 60068-2-6 test profiles — the card won’t develop intermittent faults from the structural vibration transmitted through the cabinet frame in a compressor station or offshore platform. The 16-bit A/D converter maintains accuracy across the full 0–55°C operating range without field calibration drift that would require loop re-ranging.

Channel-to-channel isolation prevents a ground fault on one field loop from propagating to adjacent channels — a critical design feature in multi-vendor field instrument installations where ground potential differences are common. In our experience, this isolation architecture is one of the primary reasons YOKOGAWA AI cards outlast competitors in chemically aggressive environments.

All units in our Xiamen warehouse are stored in ESD-safe packaging in a climate-controlled environment. Cards are inspected for connector integrity, label authenticity, and physical condition before dispatch. We do not ship cards with bent pins, cracked housings, or missing firmware labels — if it doesn’t pass visual inspection, it doesn’t go out the door.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express
• India / South Asia: 3–4 business days via DHL Express

We handle all CN export documentation in-house — commercial invoice, packing list, HS code classification (HS 8537.10 for PLC/DCS I/O modules), and any required certificates of origin. For orders requiring end-user certificates or import permits (e.g., certain Middle East or South Asian destinations), contact us in advance and we’ll coordinate the paperwork before shipment.

Emergency same-day dispatch is available for orders confirmed before 14:00 CST. If your plant is down and every hour counts, tell us when you call — we will prioritize your shipment over standard queue orders and provide a tracking number within 2 hours of payment confirmation.

All shipments are fully insured at declared value. In the rare event of transit damage, we handle the claim and dispatch a replacement immediately — you don’t wait for the insurance process to resolve before getting a working card.
