YOKOGAWA AAI543-H03 S1 Analog Output Module – CENTUM VP

YOKOGAWA AAI543-H03 S1 — 16-Channel Analog Current Output Module for CENTUM VP / CS 3000 Field Control Stations

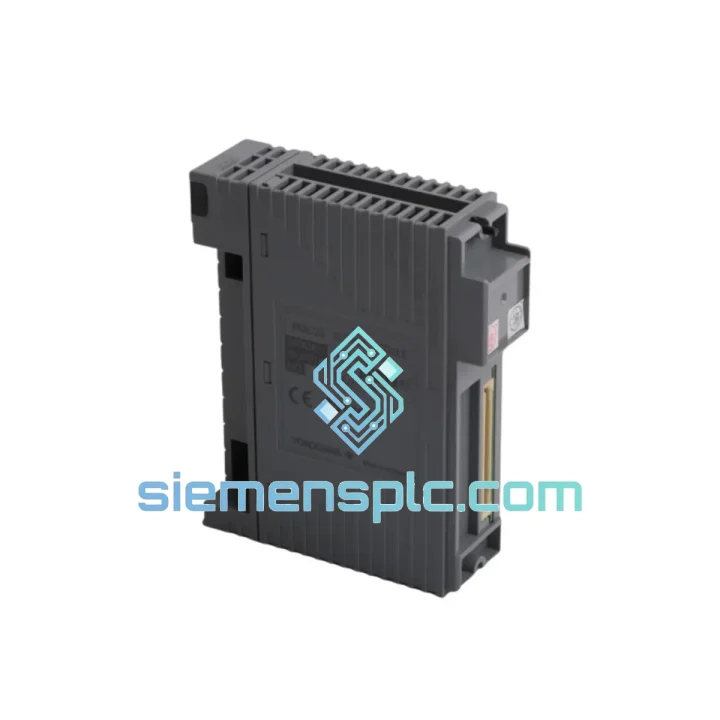

The AAI543-H03 S1 occupies a single I/O slot within a YOKOGAWA CENTUM VP or CENTUM CS 3000 Field Control Station (FCS) nest and delivers 16 independent 4–20 mA current output channels to final control elements. In a closed-loop process control architecture, this module sits at the terminal boundary between the DCS controller and the physical plant: it receives setpoint data from the FCS CPU over the V-net/IP or ESB backplane bus, converts each digital word through a 16-bit D/A converter, and drives a calibrated current signal into the field loop — typically a control valve positioner, variable-frequency drive, or electro-pneumatic transducer. The -H03 suffix designates the CE-marked, ATEX-ready hardware variant, while the S1 suffix specifies conformal coating applied to the PCB assembly for operation in high-humidity and tropical environments. Together, these options make the AAI543-H03 S1 the preferred selection for process plants in Southeast Asia, the Middle East, and coastal industrial zones where ambient conditions accelerate corrosion on unprotected electronics.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AAI543-H03 S1 implements a distributed D/A conversion architecture in which each of the 16 output channels is served by a dedicated 16-bit digital-to-analog converter cell rather than a shared multiplexed converter. This design eliminates inter-channel crosstalk and ensures that a fault or saturation condition on one loop does not propagate to adjacent channels — a critical requirement in multi-loop PID configurations where simultaneous setpoint updates must arrive at final control elements within the same scan cycle.

Channel-to-channel isolation is achieved through optocoupler barriers placed between the backplane data bus and each output driver stage. This galvanic separation limits ground-loop currents that would otherwise introduce offset errors in long cable runs — a common failure mode in refineries where field junction boxes may be located several hundred metres from the control room. The isolation barrier also attenuates conducted EMI from variable-frequency drives and high-power switching equipment operating in the same cable tray, maintaining output accuracy within the ±0.1% specification even in electrically noisy environments.

The conformal coating applied under the S1 specification uses a polyurethane or acrylic compound deposited over the entire PCB surface, including solder joints, component leads, and connector interfaces. This coating forms a dielectric barrier that resists moisture ingress, salt-laden air, and fungal growth — failure modes that are statistically significant in tropical process plants operating at sustained relative humidity above 80%. The -H03 CE/ATEX designation means the module has been evaluated as associated apparatus, allowing it to supply intrinsically safe field instruments in Zone 1 and Zone 2 hazardous areas when used with appropriate zener barriers or galvanic isolators in the field loop.

The module communicates with the FCS CPU via the ESB backplane at a fixed scan rate determined by the FCS configuration. Output data is latched and held by the D/A converter until the next scan update, ensuring that the field loop receives a stable, ripple-free current signal between scan cycles. The HART pass-through capability is implemented by superimposing the FSK-modulated HART signal on the 4–20 mA loop without disturbing the analog setpoint, enabling a HART master — either the FCS itself or an external handheld communicator — to interrogate and configure HART-capable field devices without loop interruption.

System Integration Benefits

• Deterministic scan-cycle output update: The ESB backplane delivers setpoint data to the D/A converter within a fixed, bounded latency window, supporting control loops with scan periods as short as 100 ms without jitter-induced process variability.
• High channel density reduces cabinet footprint: 16 AO channels per single slot translates to a significant reduction in nest slots consumed, lowering cabinet space requirements and associated wiring infrastructure costs in large DCS installations with hundreds of analog output loops.
• HART transparency for device diagnostics: HART pass-through allows the FCS or an external asset management system to read device variables, diagnostic status, and configuration parameters from HART-capable positioners and transmitters without additional wiring or loop interruption.
• Online module replacement in redundant FCS configurations: CENTUM VP supports hot-swap of I/O modules in redundant FCS pairs, allowing the AAI543-H03 S1 to be replaced during plant operation without forcing a control loop to manual mode — a measurable contribution to process availability metrics.
• Integrated open-circuit and short-circuit detection: The module monitors each output loop for wire-break and overload conditions, generating diagnostic alarms visible in the CENTUM VP HIS operator station and the FCS alarm log, reducing mean time to repair for field wiring faults.
• Conformal coating extends MTBF in harsh environments: By preventing moisture-induced PCB tracking and corrosion of solder joints, the S1 specification statistically extends module mean time between failures in tropical and coastal installations, reducing unplanned maintenance events.
• CE and ATEX compliance simplifies regulatory documentation: The -H03 variant ships with a Declaration of Conformity covering the EMC Directive (2014/30/EU) and Low Voltage Directive (2014/35/EU), reducing the documentation burden for European plant projects and hazardous-area installations.
• Backward compatibility with CENTUM CS 3000: The AAI543 series is electrically and mechanically compatible with both CENTUM CS 3000 and CENTUM VP FCS nests, allowing the module to be deployed as a direct replacement in legacy CS 3000 systems undergoing partial migration to CENTUM VP without requiring nest hardware changes.

Quality Assurance & Global Logistics

Every AAI543-H03 S1 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol before it is offered for sale. Physical inspection verifies label integrity, part number suffix accuracy, and the absence of mechanical damage to the PCB edge connector and front-panel latch. Serial numbers are cross-referenced against supplier documentation to confirm provenance. Where test equipment permits, a functional power-on check is performed to verify that the module initialises without fault codes. Units are then sealed in anti-static bags with humidity indicator cards and packed in double-wall corrugated cartons with foam cushioning rated for air freight handling.

Shipments are dispatched from Xiamen via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with transit times of 3–7 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. For time-critical plant shutdowns, same-day dispatch is available on confirmed in-stock units when orders are placed before 14:00 CST. Air freight consolidation and sea freight options are available for multi-unit orders. All shipments include a commercial invoice, packing list, and certificate of origin. Export classification and customs documentation are prepared in accordance with the destination country’s import requirements. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
