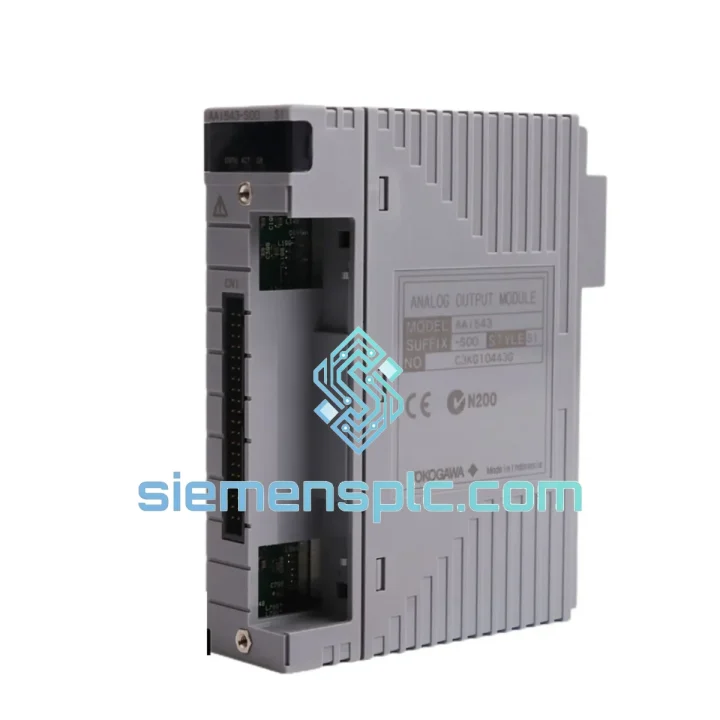

YOKOGAWA AAI543-S00 S1 Analog Output Module

YOKOGAWA AAI543-S00 S1 — Stop the Bleeding: Every Minute of DCS Downtime Costs You Real Money

Your CENTUM VP or CS 3000 system just flagged a module fault. The loop is dead. The process is down. You’ve already pulled the card and confirmed it: AAI543-S00 S1 — failed. Now you need one, fast, and it has to be the right one. Not a substitute. Not a refurb with unknown history. The original.

We stock the YOKOGAWA AAI543-S00 S1 in Xiamen, China. DHL Express to most destinations in 3–5 business days. We’ve shipped to refineries in the Middle East, chemical plants in Southeast Asia, and power stations in Europe — all on emergency timelines. This is what we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here’s what actually trips people up when swapping an AAI543-S00 S1 in the field:

1. Confirm the fault is the module, not the field wiring. Before you pull the card, check the CENTUM VP HIS alarm list for IOM fault codes. A persistent AO Hardware Fault or Channel Open Loop alarm that clears on a module reset — then returns — is a strong indicator of internal DAC failure. If the fault is channel-specific (e.g., only CH03 and CH11), suspect a blown output driver rather than a bus communication issue.

2. Hot-swap procedure on CENTUM VP. The AAI543 supports online replacement without a full system shutdown — but you must follow the sequence. In the HIS, navigate to the I/O module status screen, set the target slot to Maintenance Mode before physically removing the card. Skipping this step can cause a momentary output spike on adjacent channels sharing the same I/O bus segment. On CS 3000, hot-swap is not supported — plan for a controlled shutdown window.

3. No DIP switches or address jumpers on this module. The AAI543 uses automatic slot addressing via the CENTUM VP I/O bus. When you seat the replacement card, the system reads the slot position and assigns the node address automatically. You do not need to set any hardware switches. If the module shows Unregistered status after insertion, check that the I/O module definition in the system builder matches the installed card type — a mismatch between AAI543-S00 and AAI543-S10 (HART variant) will cause a configuration error.

4. Firmware compatibility. For CENTUM VP R6.04 and later, verify that the replacement module’s firmware revision is compatible with your system software version. The firmware version is printed on the module label. If you’re running an older CS 3000 R3.x system, confirm with YOKOGAWA that the S1 suffix hardware revision is supported — early CS 3000 builds had slot-specific firmware requirements.

5. Loop calibration after replacement. The AAI543 stores calibration data internally. A new module ships with factory default calibration (±0.1% FS). In most CENTUM VP installations, this is sufficient for immediate return to service. However, if your process requires tighter loop accuracy, perform a channel-by-channel calibration using the CENTUM VP engineering tools before handing back to operations.

Common fault codes to know:

• IOM-E01 — Module hardware failure; replace card
• IOM-E03 — Bus communication timeout; check backplane connector seating before condemning the module
• AO-W02 — Output at limit; check field device load resistance, not a module fault
• AO-E05 — DAC output failure on specific channel; module replacement required

Reliability in Harsh Conditions

The AAI543-S00 S1 was not designed for a climate-controlled server room. It was built for the cabinet floors of refineries in the Arabian Gulf, chemical plants in coastal China, and power stations in tropical Southeast Asia — environments where ambient temperatures swing, humidity condenses on cold mornings, and vibration from rotating machinery is a constant background condition.

The module’s channel-to-channel and channel-to-bus isolation architecture means a fault in one output loop — whether from a field wiring short, a valve positioner failure, or a lightning-induced surge — is contained at the channel level. The remaining 15 channels keep running. In a 16-channel module driving 16 control loops, that isolation boundary is not a specification footnote; it’s the difference between a single loop trip and a full unit shutdown.

The conformal coating on the PCB provides protection against humidity and airborne contaminants — a practical necessity in coastal industrial sites where salt-laden air accelerates corrosion on unprotected boards. Operating range of 0–55°C covers the vast majority of industrial cabinet environments, even in regions without active cooling.

Vibration tolerance meets IEC 61131-2 requirements for industrial control equipment — the module will not develop intermittent contact faults from the low-frequency vibration typical of pump and compressor skids. The card-edge connector is designed for repeated insertion cycles, which matters when you’re doing a hot-swap under pressure at 2 AM.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For emergency orders confirmed before 14:00 CST, same-day dispatch is available.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx

Every shipment includes full tracking from pickup to delivery. We prepare commercial invoices, packing lists, and certificates of origin as standard. For customers requiring export documentation (ECCN classification, end-user declarations), we handle this as part of the order process — not as an afterthought.

For orders requiring customs clearance in regulated markets, we work with established freight forwarders who know the HS code classifications for industrial automation components and can pre-clear documentation to avoid customs holds. A module sitting in customs for three days defeats the purpose of express shipping — we’ve learned this the hard way, and we’ve built the process to prevent it.

Insurance is included on all express shipments. If a package is damaged in transit, we ship a replacement immediately — we don’t wait for the carrier claim to resolve before acting.
