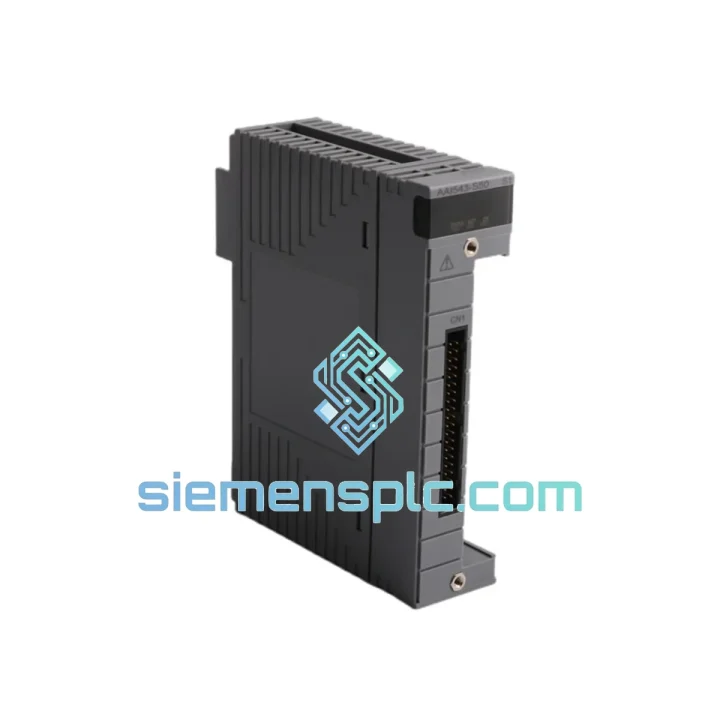

YOKOGAWA AAI543-S50 S1 Analog Output Module – CENTUM VP DCS

YOKOGAWA AAI543-S50 S1 — 16-Channel 4–20 mA Analog Output Module: Signal Conditioning Architecture in CENTUM VP Process Control Loops

The AAI543-S50 S1 is a 16-channel analog output module manufactured by Yokogawa Electric Corporation, designed for direct integration into CENTUM VP and CENTUM CS 3000 Distributed Control System (DCS) platforms. Its primary function within a control loop is to translate digital setpoint values generated by the Field Control Station (FCS) into precision 4–20 mA current signals that drive field actuators — control valve positioners, I/P transducers, variable-speed drive references, and electro-pneumatic converters. The module occupies a single slot in a CENTUM VP Field Control Unit (FCU) node and communicates with the FCS via the high-speed Vnet/IP or ESB backplane bus, sustaining deterministic scan-cycle integrity across all 16 output channels simultaneously.

The S50 suffix designates the 50-pin MIL-C-24308 connector interface, which mates directly with Yokogawa’s standard marshalling terminal blocks without adapter hardware. The S1 suffix identifies the standard (non-redundant) output configuration, distinguishing it from the S2 dual-module redundant variant. This combination makes the AAI543-S50 S1 the standard-density, cost-optimized choice for non-safety-critical analog output loops in continuous-process facilities — refineries, petrochemical complexes, power stations, and specialty chemical plants.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

D/A Conversion Architecture and Output Linearity
Each of the 16 channels on the AAI543-S50 S1 is served by an independent 16-bit digital-to-analog converter. Unlike shared-DAC designs that multiplex a single converter across multiple channels through sample-and-hold circuits, the per-channel DAC architecture eliminates inter-channel crosstalk and ensures that a transient disturbance on one output loop — such as a load impedance spike from a valve positioner — does not propagate to adjacent channels. The 16-bit resolution yields 65,536 discrete current steps across the 4–20 mA span, translating to a step size of approximately 0.244 µA. For a typical control valve with a 0–100% travel range, this resolution supports positioning granularity well below 0.01% — sufficient for tight composition control loops in distillation columns or reactor temperature cascades.

Optical Isolation and EMC Design
The module implements galvanic isolation between the digital backplane domain and each analog output channel via optocoupler barriers. This architecture serves two functions: it prevents ground loop currents — common in large-scale plant installations where field cable runs may span hundreds of meters across multiple earthing zones — from corrupting the DAC reference, and it limits the propagation of transient overvoltages from field wiring into the FCU backplane. The isolation barrier is rated to withstand common-mode voltages consistent with IEC 61000-4-5 surge immunity requirements. The PCB layout employs guard traces and localized decoupling capacitors at each DAC output stage to suppress high-frequency switching noise from the backplane power supply, maintaining output ripple below the accuracy threshold of ±0.1% FS.

Open-Circuit Detection Logic
The AAI543-S50 S1 incorporates a continuous output current monitoring circuit on each channel. The firmware compares the measured output current against the commanded DAC value at every scan cycle. If the measured current falls below a configurable threshold — indicating a broken field wire, disconnected terminal, or failed positioner coil — the module asserts an open-circuit fault flag on the diagnostic bus. This flag propagates to the CENTUM VP HIS alarm display within one scan cycle, enabling operators to identify the faulted loop without manual loop testing. The detection circuit operates independently of the DAC output stage, so a fault on one channel does not affect the commanded output of the remaining 15 channels.

Backplane Bus Timing and Scan Determinism
Within the CENTUM VP FCU node, the AAI543-S50 S1 receives updated setpoint data from the FCS application at the configured control scan period — typically 100 ms, 200 ms, or 500 ms depending on the process loop requirements. The module’s internal firmware latches the new setpoint value and updates all 16 DAC outputs within a fixed settling time, ensuring that the output current reaches the commanded value within the DAC settling specification before the next scan cycle begins. This deterministic update behavior is essential for cascade control structures where the output of one loop serves as the setpoint for a downstream loop — any jitter in the AO update timing would introduce phase lag into the cascade, degrading closed-loop stability margins.

System Integration Benefits

• Reduced Cabinet Footprint: 16 AO channels per single FCU slot reduces the number of I/O modules required for a given channel count by up to 50% compared to 8-channel alternatives, directly lowering panel space, wiring labor, and marshalling terminal costs in greenfield and brownfield installations.
• Deterministic Real-Time Response: Per-channel DAC architecture with fixed backplane update latency ensures that all 16 output channels are refreshed within a single FCS scan cycle, eliminating the scan-time variability that affects multiplexed AO designs and preserving closed-loop stability in fast-response control applications.
• Diagnostic Transparency to HIS: Open-circuit detection and output deviation alarms are reported directly to the CENTUM VP Human Interface Station alarm summary without requiring additional field instruments or manual loop checks, reducing mean time to repair (MTTR) for field wiring faults.
• Hot-Swap Capability: The module supports online replacement within the FCU node without requiring a system shutdown or process interruption, enabling corrective maintenance during normal plant operation and supporting high-availability process architectures.
• SIL 2 Compatibility: When integrated with a certified CENTUM VP safety logic solver and documented in a Safety Requirements Specification (SRS), the AAI543-S50 S1 can serve as the final element interface in SIL 2 safety-instrumented functions, eliminating the need for separate safety-rated AO hardware in mixed standard/safety loop configurations.
• Backward Compatibility with CS 3000: The AAI543 series maintains hardware and firmware compatibility with CENTUM CS 3000 R3 FCU nodes, allowing facilities migrating from CS 3000 to CENTUM VP to reuse existing I/O modules and marshalling wiring, reducing migration project capital expenditure.
• Standardized Wiring Interface: The 50-pin MIL-C-24308 connector mates with Yokogawa’s standard terminal block assemblies, preserving existing field wiring and marshalling panel layouts during module replacement — no re-termination or adapter hardware required.
• Extended Lifecycle Support: Yokogawa’s documented I/O module lifecycle policy provides spare parts availability and firmware support for a minimum of 10 years post-production, aligning with the 20–30 year operational horizons typical of refinery and petrochemical DCS installations and reducing long-term obsolescence risk.

Quality Assurance & Global Logistics

Every AAI543-S50 S1 unit dispatched from our Xiamen, China facility is a genuine Yokogawa-manufactured component, sourced through documented supply channels including authorized distributor surplus, decommissioned plant inventories with full chain-of-custody records, and OEM-certified stock. Yokogawa’s manufacturing process for CENTUM VP I/O modules applies IPC-A-610 Class 3 workmanship standards, automated optical inspection (AOI) of PCB assemblies, and 100% functional burn-in testing prior to factory release — quality controls that are preserved in the units we stock.

Pre-shipment inspection at our Xiamen facility covers: visual examination of the MIL connector pin integrity and PCB surface condition; label legibility and part number verification against the order; power-on functional verification confirming module initialization and self-test pass status; and firmware revision recording for compatibility disclosure. Units are packaged in IEC 61340-5-1 compliant anti-static bags, placed in foam-lined corrugated cartons with humidity indicator cards for moisture-sensitive international shipments.

Logistics from Xiamen port to major industrial hubs: DHL Express to Rotterdam, 3–5 business days; FedEx International Priority to Houston, 4–6 business days; air freight consolidation to Singapore, 2–3 business days. For urgent plant shutdowns or turnaround maintenance windows, same-day dispatch is available for in-stock units confirmed before 14:00 CST. All shipments include commercial invoice, packing list, and certificate of origin. Import duties and customs clearance at the destination port are the buyer’s responsibility unless a DDP (Delivered Duty Paid) arrangement is agreed in writing prior to order confirmation.
