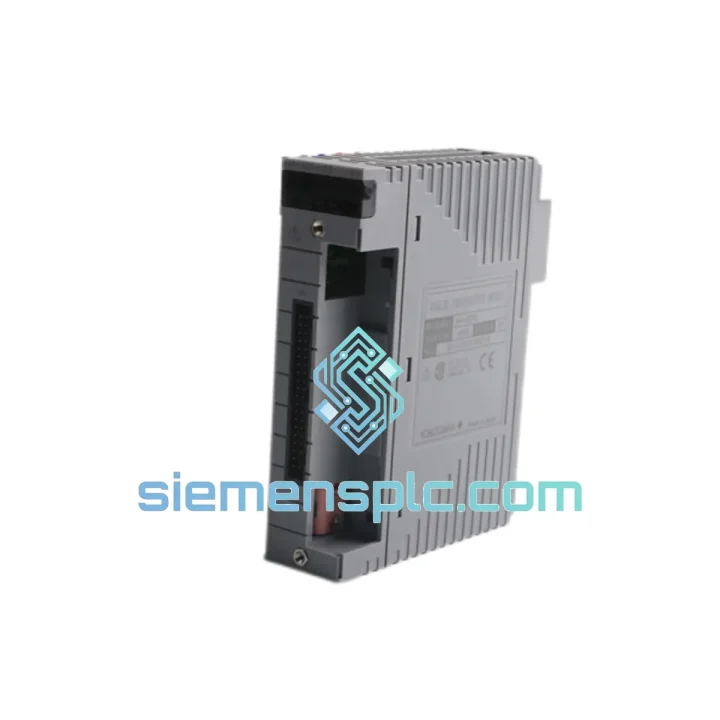

YOKOGAWA AAI835-H03 S1 Analog Input Module

YOKOGAWA AAI835-H03 S1 — Stop the Bleeding: Every Hour of DCS Downtime Costs You Real Money

Your CENTUM VP or CS 3000 system is down. The AAI835-H03 S1 analog input module has failed — or you already know it will. Eight channels of 4–20 mA process data have gone dark, and your operators are running blind. Production is halted. The clock is ticking. We stock the AAI835-H03 S1 and ship same-day from Xiamen. That is the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the AAI835-H03 S1:

• IOM ALM / I/O Module Alarm on the HIS operator station — the FCS has lost communication with the module. First check the I/O nest seating; a partially ejected module will throw this alarm before any hardware fault develops.
• All 8 channels reading 0 mA or pegged at 20 mA simultaneously — points to a failed A/D converter or internal power rail, not a field wiring issue. Swap the module before chasing field loops.
• Intermittent HART communication dropout on one or two channels while the 4–20 mA value remains stable — the HART modem section on the -H03 board is degrading. This often precedes full channel failure by days to weeks.
• ERR LED lit on the module faceplate — pull the module, inspect the edge connector for corrosion or bent pins, then reseat. If the ERR LED persists after reseating in a known-good slot, the module itself has failed.

Step-by-step hot-swap replacement procedure (CENTUM VP):

1. On the HIS, navigate to System View → I/O Module and confirm the target slot address (e.g., IOM-01-01). Note the node number and slot number — you will need these for post-swap verification.
2. Inform the control room operator. Place affected loops in manual or cascade-hold before pulling the module to prevent spurious control actions.
3. The AAI835-H03 S1 supports hot-swap within the CENTUM VP I/O nest. No nest power-down is required. Grip the module handle firmly, press the release latch, and extract in one smooth motion.
4. Insert the replacement AAI835-H03 S1 into the same slot. The module performs automatic self-addressing from the I/O nest backplane — no DIP switch or rotary address setting is required on this model. Confirm the green RUN LED illuminates within 10 seconds.
5. On the HIS, verify that all 8 channel tags return to valid engineering-unit values. Check HART device status in Plant Resource Manager (PRM) if HART diagnostics are in use.
6. Return loops to automatic. Document the swap in your maintenance log with the old module serial number and the replacement unit serial number.
7. Firmware note: The AAI835-H03 S1 firmware is embedded and non-field-upgradeable. Ensure your FCS firmware version is compatible — CENTUM VP R5.03 and later support all AAI835 variants without additional patches. If running CS 3000 R3.08 or earlier, confirm compatibility with your Yokogawa service representative before installation.

Post-replacement calibration check: Connect a calibrated 4–20 mA source to channel 1. Verify the FCS reads 0.0% at 4 mA and 100.0% at 20 mA. Repeat for any channel that was showing drift prior to failure. The AAI835-H03 S1 does not require field calibration under normal replacement conditions — factory calibration is retained in the module hardware.

Reliability in Harsh Conditions

The AAI835-H03 S1 was not designed for a climate-controlled server room. It was built for the realities of process plant environments — and it shows in every design decision.

The S1 conformal coating is factory-applied to the entire PCB assembly, not just selected components. This matters in coastal refineries, offshore platforms, and chemical plants where salt-laden or corrosive atmospheres attack unprotected circuit boards within months. The coating provides protection against humidity excursions up to 95% RH and resists common industrial solvents encountered during panel cleaning.

Vibration resistance is addressed through Yokogawa’s I/O nest locking mechanism combined with the module’s internal component mounting practices. The AAI835 series has accumulated field hours in environments with continuous vibration from rotating machinery — compressors, pumps, and turbines — without the connector fatigue failures that plague lower-grade I/O hardware.

Thermal performance is validated across the full 0°C to +60°C operating range, with the A/D conversion accuracy specification maintained across the entire band. In practice, CENTUM VP cabinets with adequate ventilation keep module temperatures well within this envelope even in tropical climates. The ≤4.5 W power dissipation per module also means the AAI835-H03 S1 contributes minimally to cabinet thermal load — a real consideration when you are running a fully populated I/O nest in a 45°C ambient environment.

Channel-to-channel isolation eliminates ground-loop interference — the single most common source of signal quality problems in multi-loop analog installations. Each of the 8 channels is independently isolated from every other channel and from the module bus, so a ground fault on one field loop cannot corrupt adjacent measurements. In a refinery or chemical plant where field instruments are spread across multiple earthing zones, this is not a nice-to-have — it is essential.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia. When you confirm your order, here is exactly what happens:

• Same-day dispatch for orders confirmed before 14:00 CST (UTC+8). The module is pulled from stock, inspected, packed in anti-static bag and foam-lined carton with humidity indicator card, and handed to DHL or FedEx the same afternoon.
• DHL Express Worldwide — typical transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days. We use DHL’s industrial account with priority handling, not standard retail rates.
• FedEx International Priority available as an alternative carrier where DHL coverage is limited or where your site has an existing FedEx account for customs clearance purposes.
• Export documentation provided as standard: commercial invoice, packing list, certificate of origin (China), and HS code declaration (HS 8537.10 or 8471.49 as applicable). We can prepare documentation to support your import customs clearance in advance of shipment arrival.
• Tracking provided immediately upon dispatch. We send the AWB number via email and WhatsApp so you can monitor the shipment in real time and coordinate your receiving team.
• Emergency freight options including charter courier and hand-carry delivery available for critical shutdowns — contact us directly to discuss.

We have shipped YOKOGAWA modules to refineries in Saudi Arabia, power plants in India, chemical complexes in Germany, and paper mills in Brazil. The logistics process is repeatable and documented. Your procurement team will receive everything they need to process the import without delays.
