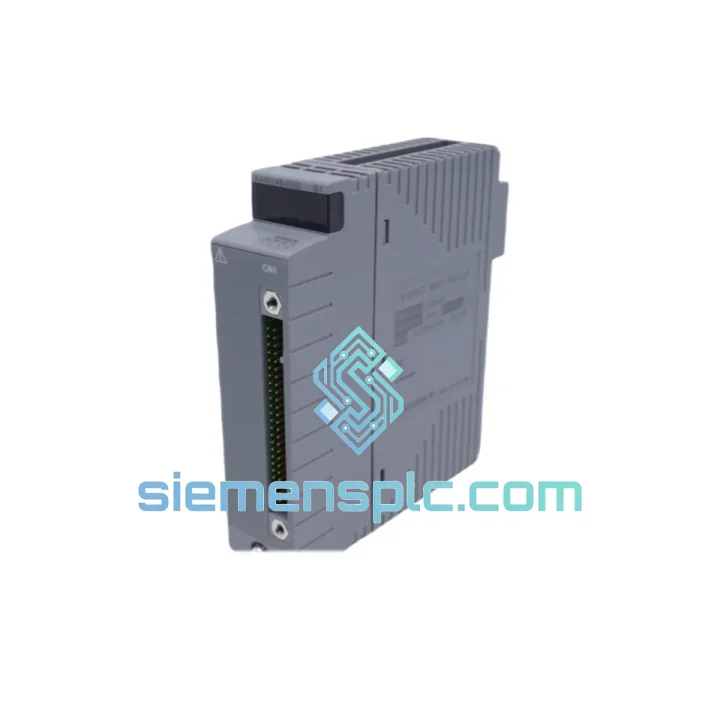

Yokogawa AAR145-S50 Analog Output Module

AAR145-S50 Down? Every Minute Costs You — Ship Today from Xiamen Stock

Your CENTUM VP system is offline. The AAR145-S50 analog output module has failed, and 16 control loops are dead. Valve positioners are frozen. The board is calling. You need a verified, drop-in replacement — not a lead time quote, not a “we’ll check availability” email. You need it on a plane today.

We stock the Yokogawa AAR145-S50 in Xiamen. Verified original. Bench-tested before dispatch. DHL Express or FedEx IP label printed within hours of payment confirmation. This is what we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AAR145-S50 fails in predictable ways. Here’s what you’ll see in the field and how to handle the swap without creating new problems:

Common Fault Signatures:

• IOM ALM (I/O Module Alarm) on HIS — The FCS detects the module has dropped off the V-net/ER bus. Check the module LED status first: a solid red FAIL LED with no green RUN confirms hardware failure, not a wiring issue.
• AO channels stuck at 4 mA or 20 mA — Often caused by internal DAC failure or a blown output driver on one or more channels. If only 1–4 channels are affected, confirm with a loop calibrator before condemning the whole module.
• Intermittent output drift — Typically a sign of capacitor degradation on aging boards (10+ years in service). Drift worsens with temperature cycling. Replace proactively during the next planned shutdown rather than waiting for full failure.
• Module not recognized after nest insertion — Verify the nest slot address matches the FCS configuration. CENTUM VP uses automatic slot addressing via the V-net bus, but a corrupted module EEPROM can cause misidentification. Swap to a known-good slot first to isolate.

Replacement Procedure (Hot-Swap Capable):

• Confirm CENTUM VP FCS is in online mode and the target module is in a non-redundant slot before proceeding with hot-swap. Redundant configurations require a different sequence.
• In HIS, navigate to the I/O module status screen and place the target module in MANUAL mode for all associated AO tags. This prevents field devices from responding to stale output values during the swap.
• Pull the failed AAR145-S50 straight out — no tools required. The nest connector is a direct-pull design. Avoid rocking the module sideways; the PCB edge connector is fragile on aged units.
• Insert the replacement module. The FCS will auto-detect and download the configuration from the FCS database within 30–60 seconds. Watch the HIS for the IOM ALM to clear.
• Verify all 16 AO channels return to AUTO mode and confirm output values match the process setpoints before releasing loops to automatic control.
• If the module fails to auto-configure, check firmware revision compatibility. AAR145-S50 requires CENTUM VP R4.01 or later. Earlier FCS firmware versions may require a manual module registration step via the Engineering Environment (ENG).

Configuration Notes:

• The AAR145-S50 does not use physical DIP switches for address setting — slot position in the I/O nest determines the logical address automatically via V-net enumeration.
• If replacing a unit in a CS 3000 system, confirm the nest type (ANB10S vs. ANB10D) and FCS firmware version. The AAR145-S50 is backward-compatible but requires CS 3000 R3.08 or later for full feature support.
• After replacement, run a full AO channel calibration check using your reference loop calibrator. Factory calibration is intact on new units, but field verification is mandatory for SIL-rated loops.

Reliability in Harsh Conditions

The AAR145-S50 was not designed for a climate-controlled server room. It was built for the realities of industrial process control — and those realities are unforgiving.

Yokogawa engineered this module to operate continuously in environments where ambient temperatures swing from near-freezing in winter shutdowns to 60°C in poorly ventilated DCS cabinets during summer. The internal power regulation and thermal management design keeps the DAC circuitry stable across that entire range, maintaining ±0.1% FS accuracy without recalibration.

Vibration is a constant in rotating equipment environments — compressor halls, pump stations, turbine decks. The AAR145-S50’s PCB layout and component selection account for mechanical stress. Conformal coating on the board protects against humidity ingress and condensation, which is critical in coastal refineries and tropical climates where relative humidity regularly exceeds 80%.

The full channel-to-channel and channel-to-bus isolation architecture is not just a spec-sheet feature. In real installations, ground potential differences between field devices and the DCS common can reach several volts. Without proper isolation, this induces measurement errors and accelerates component degradation. The AAR145-S50’s isolation barrier eliminates this failure mode entirely.

EMC immunity is validated to IEC 61000-4 series standards — ESD, electrical fast transient, surge, and conducted RF. In environments with large VFDs, switchgear, and high-current bus bars nearby, this matters. The module will not misfire outputs due to electrical noise on the plant floor.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways.

Standard dispatch timeline:

• Order confirmed before 14:00 CST → Same-day dispatch. Tracking number issued by 18:00 CST.
• Order confirmed after 14:00 CST → Next business day dispatch.
• DHL Express transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days
• FedEx IP transit times: Similar to DHL; carrier selection based on destination and current rate optimization.

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance documentation or specific HS code declarations, contact us before order placement and we will prepare the paperwork in advance.

ESD-safe anti-static packaging is standard. The module is wrapped in a grounded anti-static bag, placed in foam-lined inner carton, and packed in a double-wall outer carton rated for international air freight handling. We have shipped to refineries in Saudi Arabia, power plants in Germany, and chemical facilities in Brazil — the packaging holds.

For emergency orders requiring same-day courier pickup, contact us directly via WhatsApp. We will coordinate with the freight forwarder in real time to meet your deadline.
