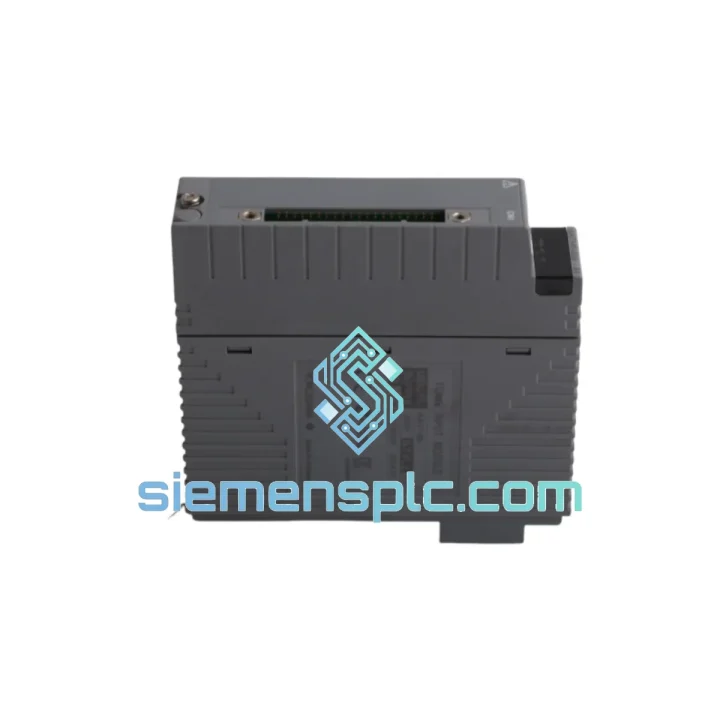

YOKOGAWA AAT145-S53 S1 DCS Analog I/O Module

AAT145-S53 S1 — Stop the Bleed: Every Minute of DCS Downtime Costs You Real Money

Your CENTUM VP field control station just flagged a module fault. The HIS alarm banner is red. Your process engineer is on the phone. You’ve already isolated the loop — now you need a verified, drop-in replacement in your hands before the next shift. That’s exactly why this page exists.

The YOKOGAWA AAT145-S53 S1 is a multi-channel analog input/output module built for the CENTUM CS and CENTUM VP distributed control system platforms. We stock it. We ship it today. From Xiamen, via DHL or FedEx Express, to your plant gate — typically within 48–72 hours to most of Asia, Europe, and the Americas.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls have taught me that most AAT145-series failures fall into three buckets. Here’s how to diagnose fast and swap clean.

Fault Code IOM-ERR / I/O Module Error on HIS: This is the most common alarm you’ll see when the AAT145-S53 S1 starts to fail. Before pulling the card, check the FCS node status in CENTUM VP Builder. If the node itself is healthy and only this slot is flagging, the module is the culprit. Power-cycle the FCS node first — if the error clears and returns within 30 minutes, you have a dying module, not a wiring issue.

Channel-Specific Signal Drift (one or two channels reading flat or erratic): Isolate the affected channels in the FCS engineering tool. If adjacent channels on the same module are clean, the issue is internal to the card — typically a failed ADC or DAC stage. Do not waste time re-calibrating a module with internal hardware failure. Replace it.

Replacement Procedure — Step by Step:

1. Place the FCS node in Manual mode for all loops tied to this module. Do not skip this — an uncontrolled output swing during hot-swap can trip downstream equipment.
2. In CENTUM VP Builder, note the slot address and I/O channel assignments for the AAT145-S53 S1 being replaced. Screenshot or print the configuration before touching hardware.
3. The AAT145 series supports online replacement (hot-swap) in most CENTUM VP FCS configurations — confirm this is enabled in your FCS node settings before proceeding. If hot-swap is not enabled, a controlled FCS shutdown is required.
4. Slide out the faulty module. Inspect the backplane connector for bent pins or corrosion. A damaged backplane connector means a larger problem — stop and assess before inserting the replacement.
5. Insert the AAT145-S53 S1 replacement. The module performs automatic self-addressing from the slot position — no DIP switch setting is required for standard CENTUM VP deployments. The FCS will recognize the new module within 10–30 seconds.
6. Verify in CENTUM VP Builder that the module status returns to NORMAL. Check each channel’s engineering unit reading against your field transmitter values before returning loops to Auto.
7. If the module was part of a redundant I/O pair, confirm the redundancy status indicator shows both primary and secondary modules as healthy before closing out the work order.

Firmware Matching: The AAT145-S53 S1 does not carry user-flashable firmware in the field. Hardware revision (S1) must match your FCS node’s supported module revision list. Check YOKOGAWA TI (Technical Information) document IM 33S01B30-01EN for revision compatibility tables. If you’re running CENTUM VP R6.x or later, the S1 revision is fully supported.

Common Mistake to Avoid: Engineers sometimes order the AAT145-S50 or AAT145-S55 by mistake. The -S53 suffix specifies a distinct channel count and signal range configuration. Installing the wrong suffix variant will result in channel mapping errors and incorrect engineering unit scaling. Always verify the full part number including suffix before ordering.

Reliability in Harsh Conditions

Process plants are not server rooms. The AAT145-S53 S1 is built to operate where temperature swings, vibration, and humidity are daily realities — not edge cases.

YOKOGAWA designs CENTUM I/O modules to IEC 61131-2 environmental standards. The AAT145 series is rated for continuous operation across an ambient temperature range of 0°C to 55°C, with short-term excursions handled by the module’s thermal management design. In high-ambient installations — compressor buildings, outdoor marshalling cabinets in tropical climates — this thermal headroom matters.

Vibration resistance is validated to IEC 60068-2-6 sinusoidal vibration profiles, covering the frequency ranges typical of rotating machinery environments: pumps, compressors, turbines. Modules installed in FCS cabinets mounted directly to structural steel in refineries have demonstrated multi-year service lives without mechanical failure of internal components.

Humidity performance is rated to 5–95% RH non-condensing. In coastal and tropical installations where humidity control inside control rooms is imperfect, the conformal coating on YOKOGAWA I/O module PCBs provides an additional layer of protection against moisture-induced corrosion on solder joints and trace surfaces.

Every unit we ship has been inspected for physical integrity: connector pins, PCB surface condition, component seating, and housing integrity. Units showing any sign of corrosion, mechanical damage, or suspect solder joints are rejected before listing. What you receive is a module that has been verified to be in serviceable condition — not a cosmetically cleaned unit with hidden damage.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. This is not a drop-ship arrangement. Stock is physically on our shelf. When you confirm an order, we pick, pack, and hand off to the carrier the same business day for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Northeast Asia (South Korea, Japan, Taiwan): 2–3 business days
• Middle East (UAE, Saudi Arabia, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 4–6 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a full commercial invoice, packing list, and country of origin documentation — required for customs clearance in most jurisdictions. For regulated industries requiring a certificate of conformance or material traceability documentation, contact us before ordering and we will prepare the necessary paperwork.

We have shipped to refineries in the Middle East, chemical plants in Germany, power stations in Southeast Asia, and pharmaceutical facilities in the United States. Export compliance is handled in-house. HS code classification, ECCN review, and end-use documentation are part of our standard export process for controlled-destination shipments.

If your plant is facing an active shutdown and you need the fastest possible routing, contact us directly via WhatsApp. We will coordinate with the carrier for priority handling and provide you with a tracking number within hours of shipment.
