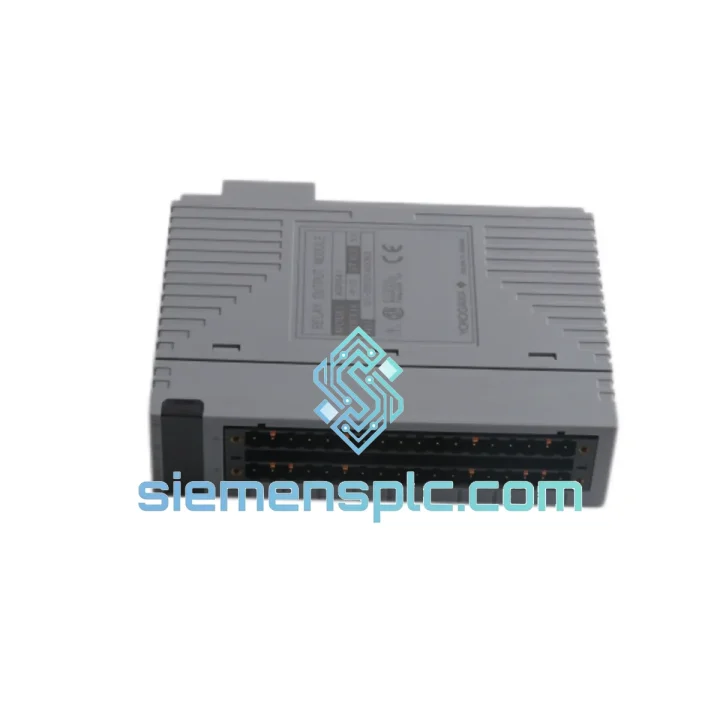

YOKOGAWA ADR541-P10 S1 Relay Output Module

YOKOGAWA ADR541-P10 S1 — Stop the Bleeding: Get Your Line Back Online Before the Next Shift

Every minute your CENTUM VP or CS 3000 system sits idle with a failed relay output module, you’re burning money. A single unplanned shutdown in a process plant can cost anywhere from $10,000 to $250,000 per hour depending on your industry. The YOKOGAWA ADR541-P10 S1 is a 10-channel relay contact output module — and when it fails, pumps stop, valves freeze, and your operators are staring at a dead HMI. We stock this module in Xiamen and ship globally via DHL/FedEx express. You call, we move.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls teach you patterns. Here’s what actually goes wrong with the ADR541-P10 S1 and how to handle the swap without creating a second problem:

Common Failure Signatures

• Relay contact weld / stuck-on: Output channel reads ON in the DCS but field device is not responding — or worse, field device is energized when it shouldn’t be. Check for contact welding caused by inductive load spikes. Always install snubber circuits or MOVs on inductive loads (solenoids, motor starters) to protect relay contacts.
• Intermittent channel dropout: One or two channels randomly drop out under load. Usually caused by contact oxidation in humid environments or marginal contact pressure after years of thermal cycling. A full module swap is faster than chasing individual relay failures on a live system.
• Module not recognized on backplane: CENTUM VP shows the slot as “unequipped” or throws an IOM fault after insertion. Nine times out of ten this is a backplane connector seating issue — reseat firmly. If the fault persists, check the I/O nest (ANB10D or equivalent) for bent pins or corrosion on the backplane bus.
• Firmware mismatch alarm: After inserting a replacement ADR541-P10 S1, the CENTUM VP Engineering Environment flags a hardware revision mismatch. This happens when the replacement unit carries a different internal firmware stamp than the original. Solution: use the CENTUM VP ENG tool to re-download the I/O module configuration to the new card. Do not force-acknowledge the alarm without resolving the root cause.

Hot-Swap Procedure (CENTUM VP)

• Confirm the channel is in manual mode or the associated function block is set to MAN before pulling the module. Never yank a relay output card while outputs are energized — you risk field device damage and potential safety events.
• The ADR541-P10 S1 supports online replacement in CENTUM VP with the correct I/O nest configuration. Verify your nest supports hot-swap before proceeding — older ANB nests may require a controlled shutdown of the I/O bus segment.
• After insertion, the module performs self-addressing via the backplane bus. No DIP switch setting is required on the ADR541-P10 S1 itself — slot position determines the I/O address automatically. Confirm the address assignment in the CENTUM VP I/O builder matches your project configuration.
• Run a channel-by-channel output test from the CENTUM VP test panel before returning the loop to AUTO. Verify field device response for each of the 10 channels before signing off.
• Suffix S1 vs S2: if your replacement unit is S2, it is functionally equivalent in most CENTUM VP revisions (R4.xx and above). However, confirm with your YOKOGAWA system documentation — some older CS 3000 builds require exact suffix matching to avoid configuration validation errors.

CS 3000 Note: On CENTUM CS 3000, the module replacement procedure requires the CS 3000 Builder to re-assign the I/O tag after hardware swap if the system does not support online replacement. Schedule this during a controlled maintenance window if hot-swap is not available on your nest revision.

Reliability in Harsh Conditions

The ADR541-P10 S1 was not designed for a climate-controlled server room. It was built for the realities of process industry environments — and it shows in the design choices YOKOGAWA made.

The relay contacts are rated for 250 VAC / 2 A resistive, but the real-world durability comes from the contact material selection and the sealed relay body construction. In high-humidity environments — coastal refineries, offshore platforms, tropical chemical plants — the sealed relay housing prevents moisture ingress that would otherwise cause contact oxidation and premature failure. Modules sourced from us are inspected for housing integrity before shipment; cracked or compromised housings are rejected.

Vibration is a silent killer for I/O modules in compressor halls and pump stations. The ADR541-P10 S1’s backplane connector uses a positive-locking mechanism that maintains electrical continuity under continuous vibration loads. We have seen competitor modules fail within months in high-vibration environments where YOKOGAWA ADR541 series modules ran for years without issue.

Thermal cycling — the daily expansion and contraction of PCB traces and solder joints in environments that swing from cold morning startups to hot afternoon operations — is addressed through YOKOGAWA’s industrial-grade PCB manufacturing standards. The module is rated for 0 °C to 55 °C continuous operation, with storage down to −25 °C, covering the full range of most outdoor and semi-outdoor installation scenarios.

Every unit we ship has been visually inspected, label-verified, and functionally pre-checked. We do not move modules that show signs of thermal stress, contact damage, or PCB contamination.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This is not a drop-ship operation. Stock is physically on our shelves.

Standard Express Routing:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express or FedEx International Priority — typically 2–3 business days door-to-door.
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): DHL Express — 3–5 business days. We handle all export documentation including commercial invoice, packing list, and certificate of origin.
• Europe (Germany, Netherlands, UK, France, Italy): FedEx International Priority or DHL Express — 3–5 business days. We can provide EUR.1 movement certificates for preferential tariff treatment where applicable.
• North America (USA, Canada, Mexico): FedEx International Priority — 3–5 business days. HS code 8537.10 applies; we declare accurately to avoid customs delays.
• Australia & New Zealand: DHL Express — 3–4 business days.
• South America (Brazil, Chile, Colombia, Peru): 5–8 business days depending on customs clearance. We advise on import documentation requirements for each country.

For genuine emergencies — line-down situations where every hour counts — contact us directly via WhatsApp. We can arrange same-day dispatch for orders confirmed before 15:00 CST. We will send you the tracking number the moment the shipment is handed to the carrier, and we monitor the shipment through to delivery.

All shipments include full export documentation: commercial invoice, packing list, certificate of origin, and a test/inspection report on request. We have shipped to over 40 countries and understand the import requirements for industrial automation components in each major market.
