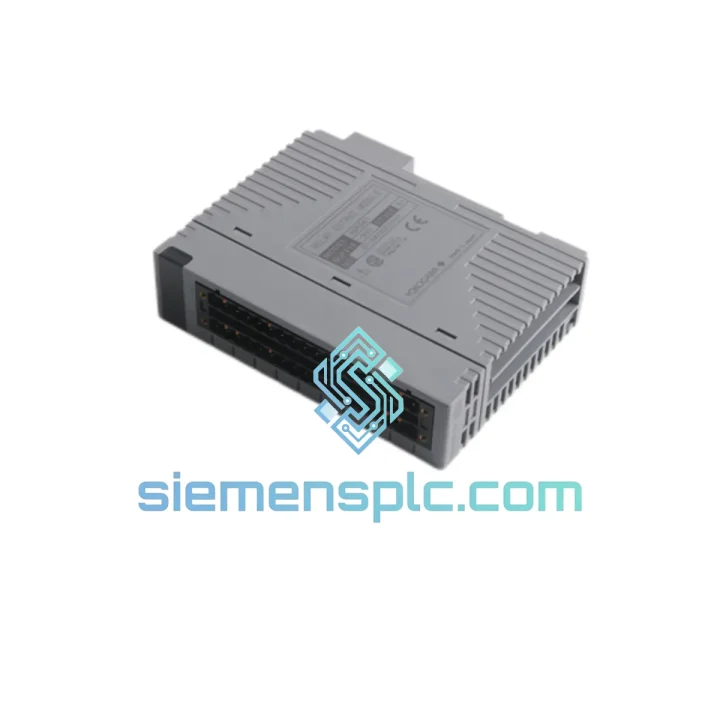

YOKOGAWA ADR541-S00 S1 Relay Output Module – CENTUM VP

YOKOGAWA ADR541-S00 S1 — Relay Output Module for CENTUM VP Distributed Control Architecture

The ADR541-S00 S1 is a relay-type discrete output module engineered for deployment within YOKOGAWA’s CENTUM VP and CENTUM CS 3000 distributed control system platforms. Its function within a control loop is unambiguous: it serves as the final-stage switching interface between the DCS controller and field-side actuators — solenoid valves, motor contactors, alarm annunciators, and interlock relays — where galvanic isolation and contact-rated switching capacity are mandatory design requirements.

Unlike transistor-based solid-state output modules, the ADR541-S00 S1 employs electromechanical relay contacts, which present a true open-circuit condition under de-energized state. This characteristic is operationally significant in safety-instrumented environments: the module’s output state is physically verifiable without reliance on firmware diagnostics, and contact resistance remains stable across the rated load range without thermal derating under normal operating conditions.

The S00 suffix designates the standard hardware revision of the ADR541 series. The S1 suffix appended to the part number indicates compliance with CE marking requirements — specifically the EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU — making this variant the correct specification for projects subject to European regulatory frameworks or international EPC contractor standards that mandate CE-compliant field devices.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ADR541-S00 S1 is built around a relay-switching architecture that addresses three principal engineering concerns in process DCS environments: galvanic isolation integrity, contact load flexibility, and backplane signal fidelity.

Optical Isolation Front-End: Each output channel incorporates an optocoupler stage between the ESB bus logic and the relay coil driver circuit. This two-stage isolation topology — optical at the logic boundary, mechanical at the field boundary — ensures that field-side voltage transients (inductive kickback from solenoid coils, capacitive discharge from long cable runs) cannot propagate into the DCS backplane. The isolation barrier is rated to withstand common-mode voltages consistent with IEC 61000-4-5 surge immunity requirements.

EMC Design (S1 Variant): The S1 hardware revision incorporates additional filtering on the relay coil drive lines and shielded PCB trace routing to suppress conducted emissions generated by relay switching transients. Ferrite bead arrays on the I/O connector interface attenuate high-frequency noise coupling between adjacent channels. This design approach meets CISPR 11 Class A radiated and conducted emission limits without requiring external suppression components on the field wiring.

Contact Architecture: The relay contacts are SPDT (single-pole double-throw) configuration, providing both normally-open (NO) and normally-closed (NC) switching paths per channel. This allows the module to drive fail-safe actuator circuits where the de-energized contact state must correspond to a defined process-safe condition — a requirement explicitly addressed in IEC 61511 functional safety engineering practice.

Backplane Bus Arbitration: The module communicates with the CENTUM VP Field Control Station via the ESB bus, which operates on a deterministic polling cycle. The ADR541-S00 S1 responds to output write commands within the FCS scan period, ensuring that relay state changes are executed within the control loop’s defined response time. The module’s internal watchdog logic de-energizes all relay outputs if bus communication is interrupted beyond a configurable timeout threshold — a hardware-enforced fail-safe behavior independent of application software.

Thermal Management: Relay coil power dissipation is managed through a duty-cycle-aware coil driver that reduces holding current after initial energization. This reduces steady-state thermal load on the module PCB and extends relay mechanical life in applications where outputs remain energized for extended periods.

System Integration Benefits

• Zero-Configuration Hot-Swap: The ADR541-S00 S1 supports online module replacement within a live CENTUM VP FCS. The FCS automatically re-downloads output configuration to the replacement module upon insertion, eliminating the need for manual parameter re-entry and reducing mean time to repair (MTTR) in continuous-process facilities.
• Deterministic Output Response: Relay state changes are executed within the FCS control scan period (configurable from 100 ms to 1000 ms), providing predictable, bounded output latency for time-critical interlock and sequencing applications.
• Diagnostic Transparency: The module reports channel-level status — including relay coil continuity and output state feedback — to the CENTUM VP HIS (Human Interface Station) via the ESB bus. Operators can verify actual relay state against commanded state without physical inspection of the I/O nest.
• Galvanic Field Isolation: Dry contact outputs eliminate ground potential differences between DCS common and field device common, preventing ground loop currents that degrade analog signal accuracy in mixed I/O installations.
• Wide Load Compatibility: The 2 A / 250 VAC contact rating accommodates direct switching of small motor starters, solenoid valve coils (up to 500 VA inrush), and pilot relay coils without intermediate interposing relays in the majority of process applications.
• Reduced Wiring Infrastructure: 16 channels per module slot minimizes the number of I/O nests required for large discrete output counts, directly reducing cabinet footprint, wiring labor, and marshalling panel complexity.
• Redundancy-Ready Architecture: The module can be deployed in 1:1 redundant output configurations within CENTUM VP redundant FCS architectures, with automatic switchover managed by the FCS without operator intervention.
• Compliance Alignment: The S1 CE-marked variant satisfies the EMC and electrical safety documentation requirements of European and international EPC project specifications, eliminating the need for supplementary compliance testing at the system integration stage.

Quality Assurance & Global Logistics

Every ADR541-S00 S1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Physical inspection covers label authenticity, connector pin integrity, housing condition, and serial number traceability against YOKOGAWA’s documented part numbering conventions. Units sourced from authorized distribution channels are accompanied by original YOKOGAWA documentation where available from the supply chain.

Packaging follows ESD-protective standards: each module is sealed in anti-static poly bags with desiccant and humidity indicator cards, then secured in foam-lined cartons rated for international air freight handling. Export documentation — including commercial invoice, packing list, and HS code classification (HS 8537.10) — is prepared in-house to expedite customs clearance at destination ports.

Standard dispatch from Xiamen is within 1–3 business days for in-stock units. International air freight transit times are typically 3–7 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers used for time-sensitive plant maintenance requirements. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. DOA (Dead on Arrival) claims are processed within 5 business days of receipt notification.
