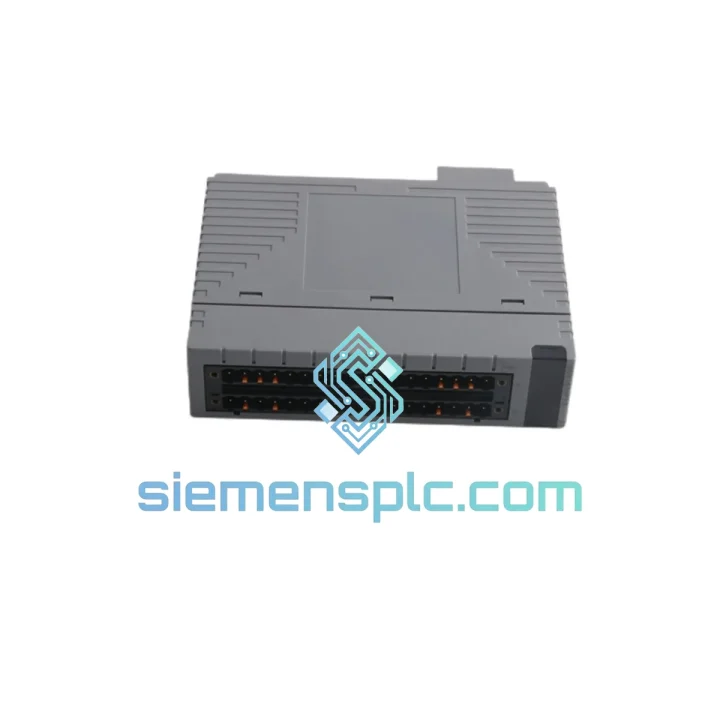

YOKOGAWA ADV142-P10 S1 Digital Input Module – CENTUM VP

YOKOGAWA ADV142-P10 S1 — 16-Point Optically Isolated Digital Input Module for CENTUM VP / CS 3000 Distributed Control Systems

The ADV142-P10 S1 is a 16-channel digital input module engineered for deployment within YOKOGAWA’s CENTUM VP and CENTUM CS 3000 distributed control system architectures. Its primary function is to acquire discrete field-level signals — dry contact closures, wet contact 24 VDC inputs, and proximity switch outputs — and relay that state data across the internal V-net/ESB backplane to the Field Control Station (FCS) for deterministic scan-cycle processing. In a typical process plant, this module sits at the boundary between the physical process and the control logic layer, converting binary field events (valve open/closed, motor run/stop, level switch high/low) into structured digital words that the FCS can act upon within its configured scan period.

The suffix breakdown is operationally significant: P10 designates the terminal block configuration — a screw-terminal I/O nest interface compatible with ANB10D and ANB11D nest units — while S1 identifies the standard specification variant, distinguishing it from region-specific or hazardous-area derivatives. Procurement teams must match both suffixes precisely to the installed nest wiring and system builder configuration to avoid field incompatibility.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ADV142-P10 S1 implements a per-channel photocoupler isolation architecture. Each of the 16 input channels routes the field-side signal through an independent LED-photodetector pair, establishing a galvanic barrier rated at 500 VAC rms between the field wiring and the module’s internal logic circuitry. This design eliminates ground loop currents that would otherwise corrupt signal integrity in installations where field devices share a common earth reference with the control cabinet at different potential levels — a common failure mode in large petrochemical plants with distributed earthing grids.

On the system side of the isolation barrier, the module’s input register is mapped directly onto the ESB (Extended Serial Bus) backplane. The FCS polls this register at the configured scan period — typically 100 ms, 200 ms, or 500 ms depending on the FCS type and system builder configuration. The ADV142-P10 S1 does not perform local logic processing; it functions as a transparent data acquisition front-end, which means scan-cycle determinism is governed entirely by the FCS scheduler rather than by module firmware. This is architecturally significant: there is no firmware version dependency for the module itself, reducing the risk of compatibility drift during CENTUM VP platform upgrades.

The P10 terminal block interface uses a captive screw-terminal design with a 3.5 mm pitch, accommodating field wire gauges from 0.5 mm² to 2.5 mm² (AWG 20–14). The terminal block is removable without disturbing the module card, which allows field wiring to remain intact during module hot-swap procedures — a critical operational advantage in continuous-process plants where loop isolation is costly.

EMC performance is achieved through a combination of the optical isolation barrier, internal signal filtering on each input channel (RC low-pass filter, typical cutoff ~50 Hz), and the module’s metal card frame which provides shielding continuity to the nest chassis ground. The result is a module that maintains signal integrity in environments with high-frequency switching noise from variable-frequency drives (VFDs) and large motor starters operating in adjacent panels.

System Integration Benefits

• Zero-configuration backplane integration: The ADV142-P10 S1 is auto-recognized by the CENTUM VP System Builder upon insertion into a registered nest slot. No manual address DIP-switch setting is required; slot position determines the I/O address, eliminating wiring-induced addressing errors.
• Deterministic scan-cycle participation: Because the module presents its 16-channel input register directly on the ESB bus, the FCS reads all 16 points within a single bus transaction, ensuring that all channel states captured in one scan cycle are temporally coherent — no inter-channel skew from sequential polling.
• Online diagnostics via CENTUM VP HIS: The module reports communication health status to the FCS, which propagates fault flags to the Human Interface Station (HIS). Operators receive module-level fault alarms without requiring physical inspection of the I/O cabinet.
• Hot-swap capability: The removable P10 terminal block allows module replacement under power in non-hazardous areas without disconnecting field wiring, reducing mean time to repair (MTTR) in maintenance scenarios.
• Optical isolation protects FCS backplane: Field-side transients — including inductive kickback from relay coils and capacitive discharge from long cable runs — are absorbed at the photocoupler stage and cannot propagate to the ESB bus or damage the FCS processor card.
• Consistent signal conditioning across all 16 channels: The per-channel RC filter provides uniform debounce behavior, preventing false state transitions from mechanical contact bounce in relay and limit switch inputs — a common source of spurious alarms in DI-heavy applications.
• Supports both dry and wet contact field devices: The module’s 24 VDC wet contact input mode allows direct connection of two-wire proximity sensors and NAMUR-compatible devices without external signal conditioners, reducing panel wiring complexity.
• Full traceability in CENTUM VP audit trail: Every state change on any of the 16 channels is time-stamped by the FCS and logged in the CENTUM VP sequence of events (SOE) recorder, providing millisecond-resolution event history for post-incident analysis and regulatory compliance reporting.

Quality Assurance & Global Logistics

Every ADV142-P10 S1 unit supplied through siemensplc.com is sourced from verified channels — authorized YOKOGAWA distributors, certified OEM surplus inventories, and factory-sealed new-old-stock (NOS) holdings. Prior to dispatch, each unit undergoes a structured inspection protocol: visual examination for physical damage, connector pin integrity check, label and serial number verification against known counterfeit indicators, and where applicable, a powered functional test confirming channel-level input response across all 16 points.

Units are shipped from our Xiamen, China operations center, which provides direct access to major international freight lanes serving Europe, Southeast Asia, the Middle East, and the Americas. Standard export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for every international shipment. For customers requiring expedited delivery, DHL Express and FedEx International Priority services are available with typical transit times of 3–5 business days to most destinations. All units are packed in anti-static ESD bags, placed in foam-lined cartons, and labeled with handling instructions to prevent transit damage to the module’s connector interface.

A 12-month warranty is provided on all new units from the date of shipment. Warranty coverage includes replacement or full refund for units that fail under normal operating conditions within the CENTUM VP / CS 3000 environment. Certificate of conformance (CoC) documentation is available on request for customers with quality management system (QMS) requirements under ISO 9001 or equivalent frameworks.
