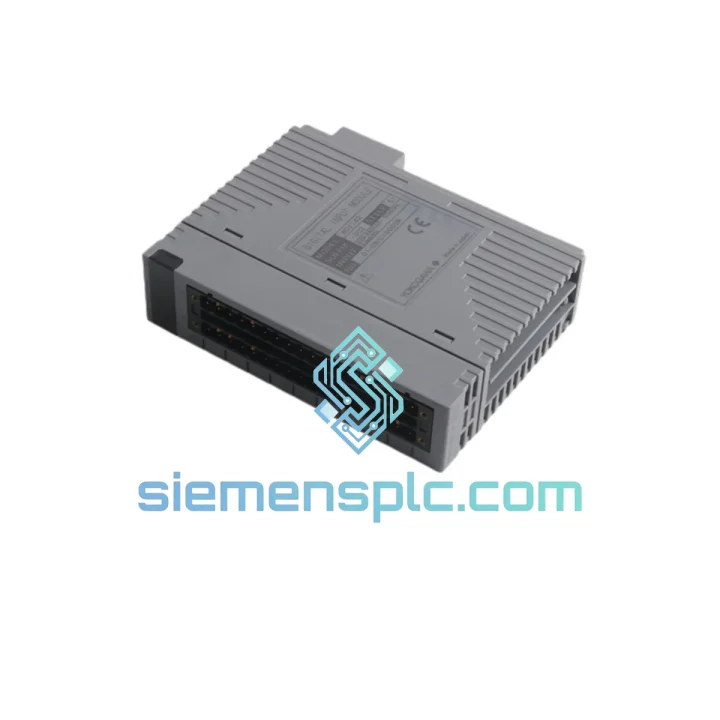

YOKOGAWA ADV142-S02 S1 Digital Input Module

YOKOGAWA ADV142-S02 S1 — 32-Channel DI Module: Stop the Clock on Your Unplanned Shutdown

Every hour your CENTUM VP or CS 3000 system sits idle costs real money. A failed ADV142-S02 S1 digital input module can take down an entire field control station, blinding your DCS to 32 critical process signals simultaneously. We stock this module in Xiamen and ship globally via DHL/FedEx — so your plant is back online before the next shift change, not next week.

The ADV142-S02 S1 is a 32-channel dry/wet contact digital input module purpose-built for YOKOGAWA’s CENTUM VP and CENTUM CS 3000 distributed control systems. It handles discrete field signals from limit switches, valve position feedback, motor run/stop status, and interlock logic — the backbone of any process safety and control loop. When this card fails, your operators are flying blind.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure symptoms for ADV142-S02 S1:

• All 32 DI channels show fixed state (all 0 or all 1): Classic sign of internal optical coupler array failure or bus communication loss. Check the module’s RUN LED — if it’s off or flashing red, the card has faulted out of the I/O nest.
• Intermittent channel dropouts on specific points: Usually caused by field-side wiring issues or degraded input filter capacitors. Isolate by swapping the suspect channel’s field wiring to a known-good channel before condemning the card.
• Module not recognized after hot-swap: The ADV142 series uses automatic slot addressing via the I/O nest backplane. If the replacement card isn’t recognized within 60 seconds, power-cycle the nest — do NOT cycle the entire FCS unless absolutely necessary.
• Fault code IOM-E1 or IOM-E3 in CENTUM VP alarm list: IOM-E1 indicates module communication timeout; IOM-E3 is a hardware self-diagnostic failure. Both require physical card replacement — firmware reload will not resolve hardware faults.

Step-by-step replacement procedure:

1. Confirm the fault in CENTUM VP HIS — note the FCS tag, nest number, and slot position before touching hardware.
2. Verify the replacement ADV142-S02 S1 suffix matches your installed unit. The S02 suffix defines the input voltage range and conformal coating spec — do not substitute S00 or S03 without engineering sign-off.
3. No DIP switch or jumper configuration is required on the ADV142-S02 S1. Slot addressing is automatic via the ESB/ER bus backplane. Do not attempt to manually configure addressing.
4. With the FCS in online mode, extract the failed card from its nest slot. The system will log a module-removed event — this is expected.
5. Insert the replacement card firmly until the ejector levers click. The RUN LED should illuminate green within 15–30 seconds as the card completes its self-test and re-registers on the bus.
6. Verify all 32 channel states in the CENTUM VP I/O monitor against field device status. If any channel reads incorrectly, check field wiring continuity before assuming card fault.
7. Clear the IOM alarm in the HIS alarm summary and document the replacement in your maintenance log with the serial number of the removed and installed cards.

Firmware note: The ADV142-S02 S1 carries embedded firmware that is not field-upgradeable. CENTUM VP R4.xx through R6.xx automatically recognizes this module without any software configuration change. If your system runs an older CS 3000 revision, confirm module recognition in the I/O builder before committing to the replacement.

Reliability in Harsh Conditions

Process plants don’t run in lab conditions. The ADV142-S02 S1 is engineered to operate continuously in environments that would destroy consumer-grade electronics. YOKOGAWA subjects this module to IEC 60068 environmental stress testing before it leaves the factory:

• Vibration resistance: Tested to IEC 60068-2-6 sinusoidal vibration profiles — critical for installations near rotating machinery, compressors, and pump skids where structural vibration is constant.
• Thermal cycling: Validated across the full 0–55 °C operating range with thermal shock testing to catch solder joint fatigue before field deployment. The conformal coating on the S02 variant adds an additional layer of protection against thermal condensation.
• Humidity and corrosion: The S02 suffix includes conformal coating on the PCB, providing resistance to humidity, salt fog, and airborne chemical contaminants — essential for coastal refineries, offshore platforms, and chemical plants with aggressive atmospheres.
• EMC immunity: Optical isolation between field terminals and the DCS bus provides inherent protection against field-side surge, ground loops, and conducted EMI from variable frequency drives and large motor starters.
• MTBF: YOKOGAWA publishes MTBF data for the ADV series exceeding 200,000 hours under rated conditions — but real-world failures happen, and when they do, you need a replacement on the shelf, not on order.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When you place an urgent order, here’s exactly what happens:

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. Orders after 15:00 ship the following morning.
• Carrier selection: We default to DHL Express Worldwide or FedEx International Priority based on your destination — whichever delivers faster to your country. Both services provide door-to-door tracking from our warehouse to your plant gate.
• Transit times: Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | Americas 4–6 days | Africa 5–7 days. Times are estimates based on carrier schedules and customs clearance.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared and attached to every shipment. HS code 8537.10 is pre-declared for smooth customs clearance in most jurisdictions.
• Customs support: For destinations with complex import requirements (India, Brazil, Saudi Arabia), we provide pre-shipment documentation review and can arrange a customs broker referral on request.
• Tracking: AWB number is emailed to you within 2 hours of dispatch. Real-time tracking link included.

We understand that a module sitting in customs is as useless as a module sitting on a shelf. Our logistics team actively monitors shipments and intervenes if a delay is detected.
