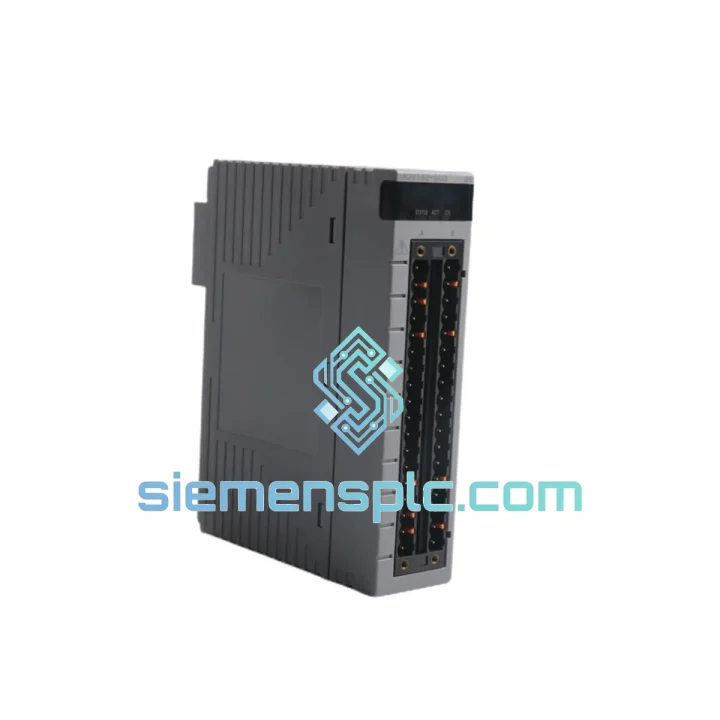

YOKOGAWA ADV142-S03 S1 Analog Input Module – CENTUM VP CS 3000

YOKOGAWA ADV142-S03 S1 — 16-Channel Analog Input Module in CENTUM VP / CS 3000 Distributed Control Architecture

The YOKOGAWA ADV142-S03 S1 is a field-proven analog input module engineered for deployment within YOKOGAWA’s CENTUM VP and CS 3000 distributed control system platforms. Positioned at the I/O tier of the control hierarchy, this module serves as the primary signal acquisition interface between field instrumentation and the Field Control Unit (FCU). Its role is not peripheral — every process variable that enters the control loop passes through this module’s analog front-end, making its electrical integrity and conversion accuracy directly consequential to loop stability, alarm fidelity, and regulatory compliance.

In a typical CENTUM VP architecture, the ADV142-S03 S1 occupies a dedicated slot within the I/O nest, communicating upstream to the FCU via the V-net/IP or RIO bus. The module handles signal conditioning, analog-to-digital conversion, and channel-level diagnostics autonomously, offloading these tasks from the CPU and preserving deterministic scan cycle performance across the entire control domain.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ADV142-S03 S1 implements a per-channel optical isolation barrier between the field wiring terminals and the internal signal processing bus. Each of the 16 input channels is galvanically isolated from adjacent channels and from the module’s backplane interface. This architecture eliminates ground loop currents that would otherwise introduce common-mode noise into the A/D conversion stage — a failure mode that is particularly destructive in installations where field instruments share grounding infrastructure with high-power drive equipment or variable-frequency drives (VFDs).

The analog front-end employs a successive-approximation register (SAR) ADC topology operating at 16-bit resolution. At this resolution, the minimum detectable signal increment over a 4–20 mA span is approximately 0.244 µA — sufficient to resolve process variable changes well below the threshold of conventional 4–20 mA transmitter noise floors. The module’s internal reference voltage is temperature-compensated, maintaining accuracy within ±0.1% FS across the full 0–55°C operating envelope without field calibration intervention.

EMC hardening is achieved through a combination of hardware filtering and PCB layout discipline. Input terminals incorporate RC low-pass filters with a cutoff frequency tuned to suppress conducted interference above the process signal bandwidth, while the PCB ground plane topology minimizes radiated susceptibility. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-6 (conducted RF immunity) without external shielding requirements — a design characteristic that simplifies cabinet layout in space-constrained marshalling panels.

The RIO bus interface logic implements a watchdog-supervised communication protocol. If the module loses synchronization with the FCU for a configurable timeout period, it asserts a hardware fault flag on the backplane and forces all associated channel outputs to a pre-defined fail-safe state. This behavior is deterministic and does not depend on software intervention from the FCU CPU, ensuring that field-side fault conditions do not propagate into undefined control states.

System Integration Benefits

• Deterministic scan cycle alignment: The ADV142-S03 S1 synchronizes its A/D conversion timing to the FCU’s control cycle clock, eliminating inter-scan jitter that would otherwise introduce phase error into derivative-action PID controllers operating on fast process loops.
• Per-channel diagnostic transparency: Each channel independently reports open-circuit, over-range, under-range, and A/D saturation conditions to the FCU’s diagnostic database, enabling the operator station to display channel-level fault status without requiring manual field inspection.
• Non-disruptive hot-swap capability: The module supports online replacement within the CENTUM VP I/O nest without requiring FCU shutdown or control loop transfer to manual mode, reducing planned maintenance windows to the physical swap time only.
• Scalable I/O density: With 16 channels per module slot, the ADV142-S03 S1 maximizes I/O density within the nest, reducing the number of occupied slots and the associated backplane power budget compared to 8-channel alternatives.
• Unified engineering environment: The module is fully enumerated within YOKOGAWA’s CENTUM VP Builder engineering tool, allowing channel tag assignment, range configuration, and alarm limit definition without leaving the DCS engineering environment.
• Redundancy-compatible architecture: The ADV142-S03 S1 can be deployed in redundant I/O configurations where the CENTUM VP platform supports dual-module redundancy, providing continuous process measurement availability during single-module failure events.
• Backward compatibility with CS 3000: The module’s electrical and mechanical form factor is compatible with CENTUM CS 3000 I/O nests, enabling direct reuse of existing field wiring and marshalling infrastructure during platform migration projects.
• Reduced loop commissioning time: Factory-calibrated accuracy of ±0.1% FS eliminates the need for individual channel calibration at commissioning, reducing loop checkout time per channel from approximately 20 minutes (with field calibration) to under 5 minutes (wiring verification only).

Quality Assurance & Global Logistics

Every ADV142-S03 S1 unit dispatched from our Xiamen, China facility is a genuine YOKOGAWA Electric Corporation manufactured component. Units are sourced through documented procurement channels and carry original YOKOGAWA factory labels, date codes, and serial numbers consistent with production batch records. We do not supply re-marked, refurbished-as-new, or third-party substitute modules under this part number.

Pre-shipment inspection covers label integrity verification, connector pin condition assessment, housing dimensional check against reference samples, and — where test fixtures are available — powered functional verification of bus communication response. Each unit ships in anti-static ESD packaging with a foam-lined outer carton rated for international air freight handling.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 2–4 business days to Southeast Asia, and 4–7 business days to North America. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. HS Code 8537.10 applies. Bulk orders may be consolidated for sea freight upon request.

A 12-month warranty covers manufacturing defects and DOA (Dead on Arrival) conditions from the date of shipment. Warranty claims are processed with replacement dispatch within 5 business days of confirmed fault verification. Extended service agreements are available for customers maintaining standing purchase orders.
