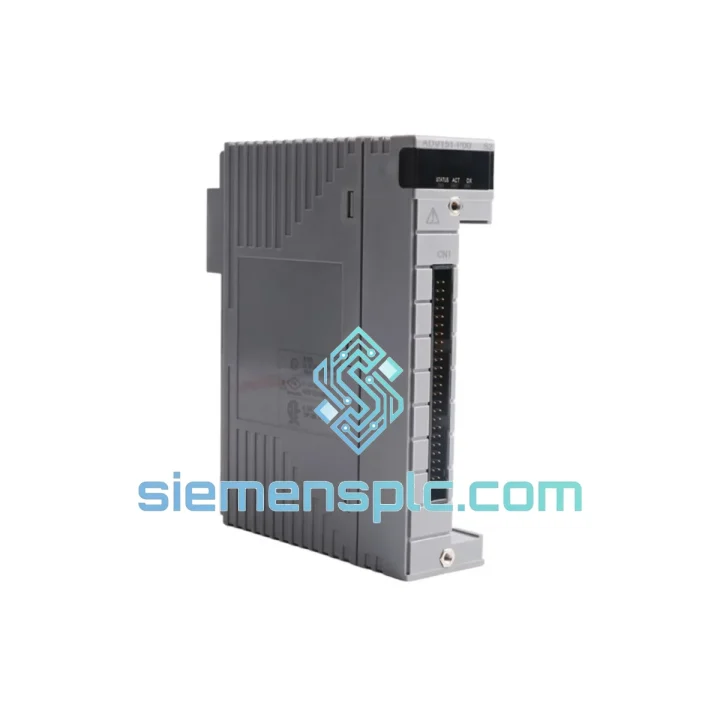

YOKOGAWA ADV151-P00 Digital Input Module

YOKOGAWA ADV151-P00 — Stop the Clock on Your Downtime, Ship Today

Every hour a CENTUM VP field control station sits idle costs real money. The ADV151-P00 is a 16-channel Digital Input module that sits at the nerve center of your DCS I/O nest — when it fails, valve status, pump feedback, and interlock signals go dark simultaneously. We stock this module in Xiamen and can have it on a DHL or FedEx aircraft within hours of order confirmation. No waiting on factory lead times. No broker markups. Direct from verified inventory to your plant gate.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with ADV151-series failures points to a consistent set of failure modes. Before pulling the module, run through this checklist to confirm the card is the fault source and not a wiring or FCS configuration issue.

Common Fault Indicators

• ALM LED solid red on I/O nest: The FCS has lost communication with the ADV151-P00. First check the module seating — a partially ejected card will trigger this. Re-seat firmly and observe for 30 seconds before condemning the module.
• All 16 channels reading OFF simultaneously: Unlikely to be a field wiring issue across all channels at once. Points to internal bus interface failure or blown input protection circuit. Replace the module.
• Intermittent channel dropouts (1–3 channels): Check terminal block tightening torque (0.5–0.6 N·m per YOKOGAWA spec). Loose field wiring on wet-contact inputs causes exactly this symptom under vibration.
• CENTUM VP System View showing IOM Fault on the affected slot: Pull the hardware diagnostic log from the FCS via CENTUM VP Builder. Error code 0x21 or 0x22 indicates I/O module communication timeout — the ADV151-P00 is not responding on the backplane bus. Replacement required.
• Module runs warm to the touch but no fault LED: Internal optical coupler degradation. Channels may still read but with increased propagation delay. Replace proactively during the next maintenance window.

Replacement Procedure — Key Configuration Points

1. Record slot address before removal. The ADV151-P00 uses slot-based addressing within the I/O nest (ANB10D/ANB11D). The FCS assigns the module address automatically based on physical slot position — no DIP switch setting required on this model. Confirm the slot number in CENTUM VP Builder matches the physical nest position before powering up the replacement.
2. Check terminal block suffix. The -P00 suffix designates a specific terminal block wiring pattern. Do not substitute with ADV151-P10 or ADV151-P50 without verifying your marshalling cabinet wiring diagram — terminal pin assignments differ between suffix variants.
3. Hot-swap capability. CENTUM VP supports online module replacement on standard I/O nests. Confirm your FCS firmware revision supports this before attempting live replacement. FCS firmware below R3.03 may require a controlled shutdown of the affected I/O nest segment.
4. Firmware matching. The ADV151-P00 hardware revision must be compatible with the running CENTUM VP system version. Check the module hardware revision label against the CENTUM VP compatibility matrix in TI 33J01B10-01EN before installation.
5. Post-replacement verification. After insertion, observe the module status in CENTUM VP System View. All 16 channels should transition from Unknown to their actual field state within 5 seconds. Force a known input on at least two channels to confirm signal path integrity before returning the loop to automatic.

Reliability in Harsh Conditions

The ADV151-P00 is designed from the substrate up for continuous operation in process plant environments where ambient conditions are rarely within office-equipment tolerances.

• Vibration: Qualified to IEC 60068-2-6 sinusoidal vibration testing across the 10–150 Hz spectrum at 1 g acceleration. Covers the vibration profile of compressor halls, pump skids, and turbine control rooms.
• Thermal cycling: Conformal-coated PCB tolerates daily thermal cycling common in outdoor-adjacent control rooms in tropical and desert climates. Operating range 0–55 °C with storage down to −25 °C.
• Humidity and condensation resistance: Rated to 95 % RH non-condensing. Conformal coating provides a physical barrier against moisture ingress that would otherwise cause leakage currents between signal traces.
• EMC immunity: Optical isolation between field-side inputs and the backplane bus provides inherent common-mode rejection. Meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-5 (surge) immunity levels — critical in plants where field cables run alongside high-voltage motor drives.
• Long MTBF design: YOKOGAWA publishes MTBF data for ADV151-series modules exceeding 500,000 hours under rated conditions. Premature failures almost always trace to installation errors rather than component fatigue.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — direct access to Xiamen Gaoqi International Airport (XMN) with daily freight consolidation to DHL, FedEx, and UPS international gateways.

• Order cut-off: Orders confirmed and paid before 15:00 CST are processed for same-day dispatch.
• DHL Express: Xiamen to Europe, Middle East, and Southeast Asia in 2–4 business days. North America typically 3–5 business days.
• FedEx International Priority: Xiamen to Frankfurt, Dubai, Singapore, Houston in 1–3 business days for time-critical shipments.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every international shipment. HS Code 8537.10 applied. Formal export declaration filed through Xiamen Customs.
• ESD-safe packaging: Anti-static bags, foam-lined inner carton, double-walled outer carton rated for air freight handling.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your registered email.
• Emergency freight: For critical plant shutdowns, contact us directly via WhatsApp for same-day courier booking and priority handling.
