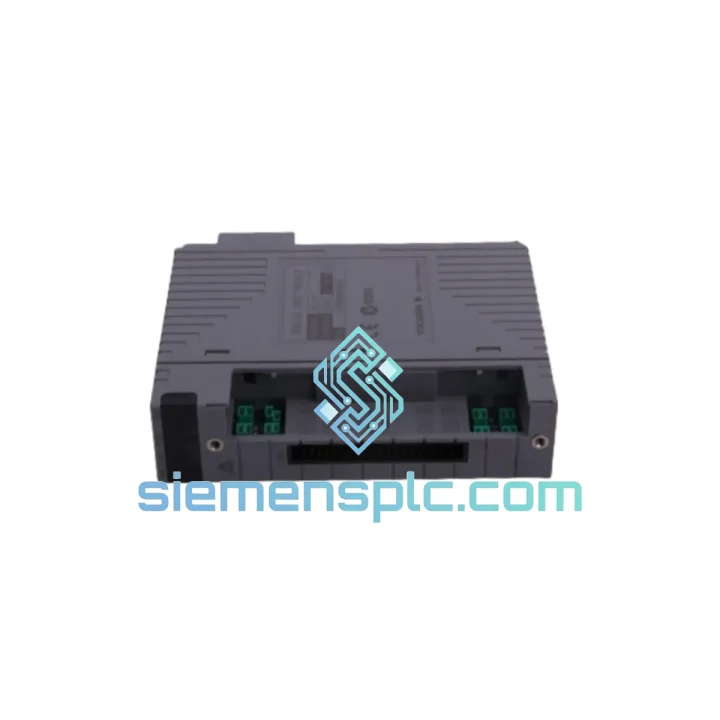

Yokogawa ADV157-S00 Digital Input Module – CENTUM VP

Yokogawa ADV157-S00 — 32-Channel Optically Isolated Digital Input Module for CENTUM VP Field Control Stations

The ADV157-S00 is a 32-channel digital input (DI) module engineered for deployment within Yokogawa CENTUM VP and CS 3000 Field Control Station (FCS) I/O nests. Its primary function in the control loop is to acquire discrete on/off state data from field devices — valve position switches, motor run/stop contacts, relay outputs, and emergency shutdown (ESD) interlock signals — and present that data to the FCS processor over the CENTUM VP internal I/O bus with deterministic scan-cycle synchronisation. Each of the 32 channels is individually optically isolated, eliminating common-mode noise paths that would otherwise corrupt signal integrity in large-scale process plants where cable runs routinely exceed 100 m and ground potential differences between marshalling panels and field junction boxes can reach several volts.

In a CENTUM VP architecture, the FCS executes its control application at a fixed cycle time — typically 100 ms, 200 ms, or 500 ms depending on the process requirement. The ADV157-S00 latches all 32 channel states synchronously at the start of each FCS scan, ensuring that the DI data presented to function blocks is temporally consistent with analog input (AI) and analog output (AO) data acquired in the same cycle. This synchronous acquisition model is architecturally distinct from asynchronous DI modules found in lower-tier PLCs, where channel-to-channel skew can introduce logic errors in interlock sequences that depend on the simultaneous evaluation of multiple discrete conditions.

The module occupies a single slot in any standard CENTUM VP I/O nest (ANB10D 8-slot or ANB11D 16-slot) and is hot-swappable when the nest is configured for redundant I/O operation. The FCS automatically identifies the module type via the backplane bus upon insertion, requiring no manual address configuration or DIP-switch setting — a design discipline that eliminates a common source of commissioning error in large I/O-intensive projects.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ADV157-S00’s optical isolation architecture uses a dedicated phototransistor coupler per channel rather than a shared isolation barrier across channel groups. This per-channel isolation topology means that a wiring fault — such as a field cable shorted to a high-voltage rail — on channel 7 does not degrade the isolation integrity of channels 1–6 or 8–32. In plants where DI field cables share conduit with 110 VAC or 220 VAC power conductors, this design characteristic is not a convenience feature; it is a functional requirement for maintaining signal validity across the full 32-channel array.

The module’s EMC design addresses two distinct threat vectors. The first is conducted interference: fast transients (IEC 61000-4-4, 2 kV) and surge events (IEC 61000-4-5, 1 kV line-to-earth) are suppressed at the field terminal interface by transient voltage suppression (TVS) diodes and RC filter networks before the signal reaches the optocoupler input stage. The second is radiated interference: the module’s PCB layout routes high-frequency backplane bus signals on inner copper layers with ground-plane shielding on outer layers, reducing radiated emissions and improving immunity to external RF fields in the 80 MHz–1 GHz band per IEC 61000-4-3.

The backplane bus interface implements a watchdog handshake protocol with the FCS processor. If the module fails to respond within a defined timeout window — caused by internal hardware fault, power loss, or physical removal — the FCS immediately sets the corresponding channel quality flags to BAD and triggers a module-fault alarm in the CENTUM VP HIS (Human Interface Station). This fail-detectable behaviour is a prerequisite for SIL 2 loop integrity, as it ensures that a silent hardware failure does not result in the FCS continuing to act on stale or invalid DI data.

Hot-swap operation is supported through a controlled power sequencing circuit on the module’s backplane connector. When the module is inserted into a live nest, inrush current is limited by a soft-start circuit to prevent voltage droop on the 24 VDC nest bus that could disturb adjacent modules. The FCS detects the new module, performs an automatic self-identification handshake, and resumes normal DI scanning within one control cycle — typically within 100 ms of physical insertion.

System Integration Benefits

• Zero-configuration auto-identification: The FCS reads the module’s hardware ID from the backplane bus on power-up or hot-swap insertion, eliminating manual address assignment and the associated commissioning errors on large I/O projects with hundreds of modules.
• Synchronous multi-channel acquisition: All 32 channels are latched simultaneously at the FCS scan boundary, ensuring that interlock logic evaluating multiple DI conditions operates on a temporally consistent data snapshot — a requirement for reliable sequence-of-events (SOE) analysis.
• 1:1 I/O redundancy support: When paired with an ANB11D dual-redundant nest and a redundant NIU pair, the ADV157-S00 participates in bumpless I/O switchover with no data loss and no FCS control-cycle interruption.
• Per-channel diagnostic transparency: The FCS reports individual channel quality status (GOOD / BAD / UNCERTAIN) to the CENTUM VP HIS and historian, enabling maintenance teams to identify degraded field wiring or failing field devices without physical inspection of the I/O cabinet.
• SIL 2 loop participation: The module’s per-channel optical isolation and fail-detectable backplane watchdog satisfy the hardware fault tolerance (HFT) and diagnostic coverage (DC) requirements for use in SIL 2 safety instrumented functions when the overall SIF is designed per IEC 61511.
• High channel density: 32 DI channels per slot reduces the number of I/O nests, NIUs, and field terminal boards required for a given channel count, directly reducing cabinet space, wiring labour, and spare-parts inventory.
• Long-term platform compatibility: Yokogawa maintains backward I/O compatibility across CENTUM VP generations. The ADV157-S00 operates in both current CENTUM VP R6.xx systems and legacy CS 3000 installations, protecting capital investment in brownfield expansion projects.
• Reduced mean time to repair (MTTR): Hot-swap capability combined with automatic FCS re-identification means a trained technician can replace a failed module and restore full DI functionality in under five minutes without a process shutdown or FCS reboot.
• Historian and SOE integration: Channel state changes are time-stamped at the FCS scan resolution and forwarded to the CENTUM VP Exaquantum historian and SOE recorder, providing the sub-second event resolution required for post-incident root-cause analysis in safety-critical processes.

Quality Assurance & Global Logistics

Every ADV157-S00 unit supplied by siemensplc.com is sourced through verified channels with full traceability to Yokogawa’s original manufacturing documentation. Prior to dispatch from our Xiamen, China facility, each module undergoes a structured pre-shipment inspection protocol: visual examination against Yokogawa OEM cosmetic and label standards, firmware revision verification against the applicable CENTUM VP compatibility matrix, functional power-on test confirming backplane bus handshake and channel status reporting, and anti-static packaging with humidity indicator card and desiccant insert.

Xiamen’s geographic position — with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen — enables same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for time-critical shipments. Standard transit times are 2–4 business days to Southeast Asia, 3–5 business days to Europe and the Middle East, and 3–6 business days to North America. All export shipments are accompanied by a commercial invoice, packing list, and HS code 8537.10 classification documentation to facilitate customs clearance without delay. A 12-month warranty against manufacturing defects is provided from the date of dispatch, with warranty claims processed within 5 business days of receipt of the returned unit.
