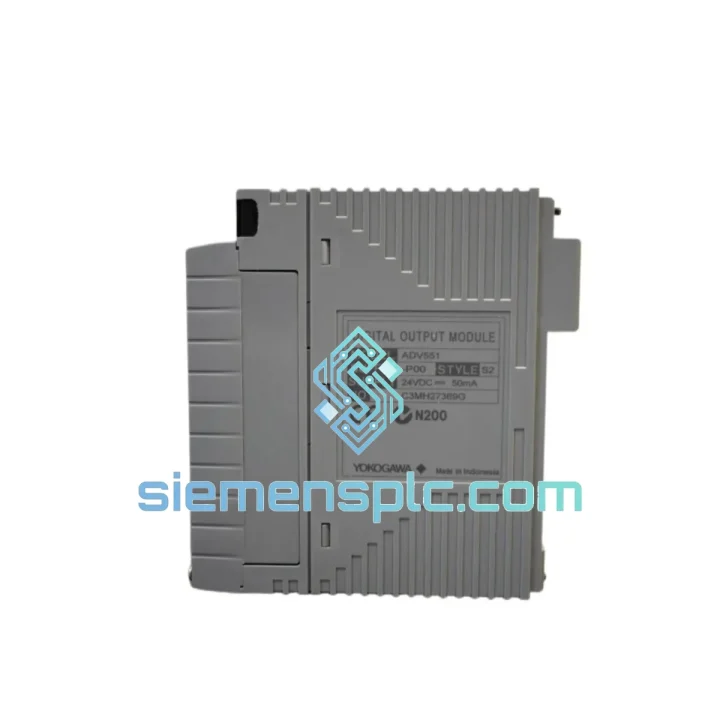

YOKOGAWA ADV551-P00 S2 Digital Output Module

ADV551-P00 S2 Down? Every Minute of Downtime Costs You — Get Back Online Fast

Your CENTUM VP or CS 3000 system just flagged a DO module fault. The alarm is live, the operator is waiting, and production is bleeding money by the hour. The ADV551-P00 S2 is a 16-channel digital output module — when it fails, solenoid valves freeze, motor starters go dark, and your entire discrete control loop collapses. We stock this module in Xiamen and ship globally via DHL/FedEx express. Same-day dispatch for confirmed orders before 15:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for ADV551-P00 S2:

• ALM LED solid red on module faceplate — hardware self-diagnostic failure. Pull the module, inspect the backplane connector pins for corrosion or bent contacts before inserting the replacement.
• Channels 1–8 dead, 9–16 normal — partial output driver IC failure. Not repairable in the field. Replace the entire module; do not attempt to re-enable dead channels via software forcing — you will mask the fault without fixing it.
• Intermittent output chatter on valve actuators — check the ATB terminal board connection first. A loose I/O cable between the ATB and the module causes exactly this symptom before the module itself fails. Reseat the cable and monitor for 30 minutes before condemning the module.
• FCS reports “I/O Communication Error” on this slot — power-cycle the I/O unit node (not the entire FCS). If the error clears and returns within 24 hours, the module is failing its bus handshake. Replace it.

Hot-swap replacement procedure (CENTUM VP, online):

1. Open the CENTUM VP HIS engineering station. Navigate to the I/O module map and confirm the slot address of the ADV551-P00 S2 you are replacing.
2. In the FCS builder, set the target slot to “Maintenance Mode” to suppress spurious alarms during the swap. Do not skip this — operators will be flooded with DO fault alarms otherwise.
3. Disconnect field wiring at the ATB terminal board, not at the module. Label every wire before removal if the ATB is not already tagged.
4. Slide the faulty ADV551-P00 S2 out of the I/O unit. The CENTUM VP backplane supports live extraction — no node power-down required for S2 revision modules.
5. Insert the replacement ADV551-P00 S2. The module performs a self-test on power-up (approximately 3–5 seconds). Watch the STATUS LED: green = pass, red = fail (check module seating).
6. The CENTUM VP FCS auto-detects the new module via backplane enumeration. No manual address configuration or DIP switch setting is required for standard DO slots — the slot address is determined by physical position in the I/O unit.
7. Restore field wiring at the ATB. Exit Maintenance Mode on the HIS. Verify all 16 channels report correct status in the I/O diagnostic view before returning the loop to automatic.

Firmware note: The ADV551-P00 S2 carries embedded firmware that is not field-upgradeable. The S2 hardware revision is fully compatible with all current CENTUM VP R5.x and R6.x software releases. No firmware matching procedure is required — plug-and-play within the same I/O unit generation.

Reliability in Harsh Conditions

The ADV551-P00 S2 was not designed for a climate-controlled server room. It was built for the reality of industrial plant floors — where ambient temperatures swing, humidity condenses on cold mornings, and vibration from nearby rotating equipment never stops.

Optical isolation on every output channel means a field-side surge — from a solenoid valve coil collapse or a motor starter arc — cannot propagate back into the DCS backplane. The module absorbs the transient; your FCS keeps running. The PCB conformal coating on S2-revision boards provides additional protection against humidity ingress and airborne contaminants common in chemical and refining environments.

Vibration tolerance meets IEC 60068-2-6 test profiles, covering the 5–150 Hz range at 1 g acceleration — sufficient for modules mounted adjacent to large pump skids or compressor packages. Units stored in our Xiamen warehouse are kept in ESD-safe anti-static bags with foam cushioning inside sealed cartons, maintaining the factory protection envelope until the moment of installation.

Operating range of 0 °C to +55 °C covers the vast majority of enclosed control cabinet environments globally, including tropical climates where cabinet cooling is marginal. For installations approaching the upper thermal limit, verify cabinet ventilation before commissioning — the module itself is rated, but sustained operation at 55 °C ambient will accelerate electrolytic capacitor aging on any electronics.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible handoff to DHL Express and FedEx International Priority networks for shipments to Southeast Asia, the Middle East, Europe, and the Americas.

Standard dispatch timeline:

• Orders confirmed before 15:00 CST — same-day dispatch
• Orders confirmed after 15:00 CST — next business morning dispatch
• Export documentation (commercial invoice, packing list, HS code declaration) prepared same day

Typical transit times (DHL/FedEx express):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 4–6 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a full tracking number issued at the time of dispatch. For plant shutdowns or emergency maintenance windows where delivery timing is critical, contact us before placing the order — we will confirm the exact dispatch slot and provide a realistic delivery estimate based on current carrier capacity, not a marketing promise.

Import duties and customs clearance are the buyer’s responsibility. We provide accurate HS code documentation and declared values to facilitate smooth customs processing. For buyers in countries with complex import regulations, we recommend engaging a local customs broker in parallel with placing your order.
