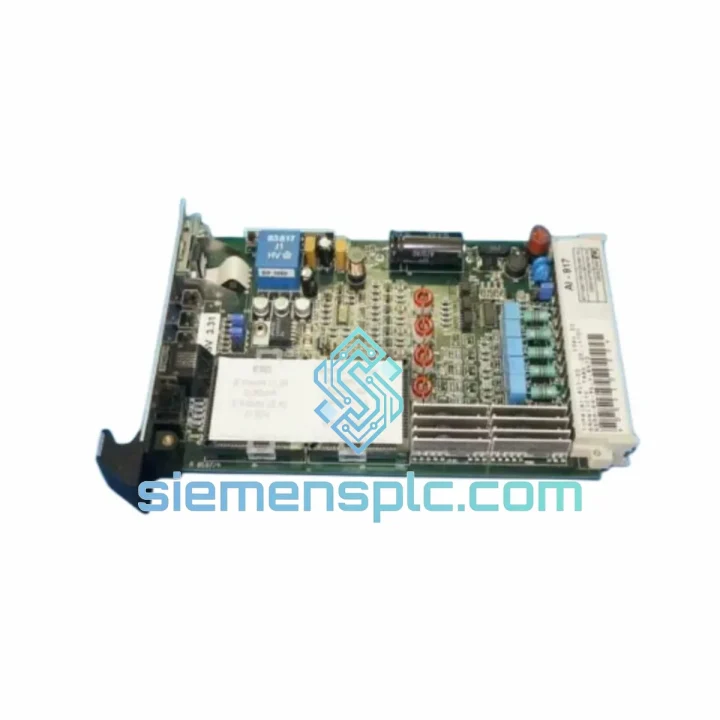

YOKOGAWA AI-917-00 Analog Input Module – CENTUM VP DCS

YOKOGAWA AI-917-00: 8-Channel Galvanically Isolated Analog Input Module for CENTUM VP Field Control Stations

The AI-917-00 occupies a defined slot within YOKOGAWA’s CENTUM VP I/O subsystem, functioning as the primary signal conditioning and digitization interface between field-mounted transmitters and the Field Control Station (FCS) backplane. Its role is not peripheral — every PID loop, cascade control scheme, and safety interlock that depends on a 4–20 mA or 1–5 V DC process variable passes through this card’s analog front-end before the FCS executes any control action. In a refinery distillation column or a pharmaceutical batch reactor, the accuracy and determinism of this conversion directly governs loop stability and product quality.

The module accepts up to 8 analog input channels simultaneously, each independently conditioned and converted through a 16-bit successive-approximation A/D architecture. The per-channel scan cycle is synchronized to the FCS control period — typically 100 ms, 200 ms, or 500 ms depending on the configured scan rate — ensuring that process variable data presented to function blocks is temporally coherent with the execution cycle. This eliminates the phase error that would otherwise accumulate in high-speed cascade loops if input scanning were asynchronous to control execution.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AI-917-00’s analog front-end is structured around a multiplexed successive-approximation register (SAR) ADC topology. Each of the 8 input channels feeds into a dedicated signal conditioning stage — comprising a precision instrumentation amplifier, a low-pass anti-aliasing filter with a cutoff frequency set well below the Nyquist limit of the scan rate, and a sample-and-hold circuit — before the multiplexer routes the conditioned signal to the shared 16-bit SAR ADC core. This architecture avoids the inter-channel crosstalk that would arise from a fully simultaneous multi-ADC design without the cost overhead, while maintaining channel-to-channel measurement coherence within a single scan cycle.

Galvanic Isolation Architecture: Each channel’s signal conditioning stage is electrically isolated from both adjacent channels and the backplane logic domain via optocoupler barriers rated at 500 V DC. This two-tier isolation topology — channel-to-channel and channel-to-bus — prevents ground loop currents from field wiring from corrupting the ADC reference voltage, a failure mode that is particularly prevalent in large-scale process plants where field cable runs span multiple earthing zones. The isolation barrier also attenuates common-mode noise injected by variable-frequency drives (VFDs) and high-current motor starters operating in the same cable tray.

EMC Design: The PCB layout employs a split ground plane strategy: the analog signal domain and the digital logic domain are separated by a moat, with the only crossing point being the optocoupler isolation barrier. Decoupling capacitors are placed at each power rail entry point using a hierarchical scheme — bulk electrolytic capacitors at the backplane connector, ceramic X7R capacitors at the IC power pins — to suppress both low-frequency supply ripple and high-frequency switching transients. The card’s metal faceplate and backplane connector shield provide a continuous Faraday enclosure, contributing to the module’s compliance with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels.

Redundancy and Fault Containment: The AI-917-00 incorporates watchdog logic that monitors the internal ADC conversion cycle. If a conversion fails to complete within the expected window — due to latch-up, power rail deviation, or firmware exception — the watchdog asserts a module fault flag on the backplane bus. The FCS detects this flag within one control scan period and substitutes the last valid process variable value (or a configurable substitute value) into the affected function blocks, preventing a spurious control action from propagating to final control elements. This fail-safe substitution behavior is configurable in CENTUM VP’s System View engineering environment.

System Integration Benefits

• Zero-Reconfiguration Drop-In Replacement: The AI-917-00 maintains full backward compatibility with existing CENTUM VP I/O node unit chassis and terminal board wiring. Replacing a failed card requires no modification to the FCS function block database, I/O tag assignments, or field wiring — the replacement card inherits the configuration stored in the FCS upon insertion.
• Deterministic Real-Time Response: Scan synchronization to the FCS control period eliminates jitter in process variable delivery to PID and advanced control function blocks. In cascade control architectures, this determinism is critical: the secondary loop’s measurement must be available at a fixed phase relationship to the primary loop’s output calculation to maintain loop stability margins.
• Diagnostic Transparency via CENTUM VP System View: The module reports per-channel diagnostic status — open-circuit detection, over-range, under-range, and ADC fault — directly to the FCS alarm management system. Operators receive actionable fault codes at the HIS (Human Interface Station) without requiring a field inspection, reducing mean time to diagnose (MTTD) for instrumentation faults.
• Hot-Swap Maintenance Without Process Interruption: On CENTUM VP IOU chassis that support online card replacement, the AI-917-00 can be extracted and reinserted while the FCS continues executing control logic. The FCS applies the configured substitute value during the replacement interval and automatically resumes live process variable acquisition upon card re-initialization — a capability that eliminates planned shutdowns for routine I/O card maintenance.
• HART Asset Management Integration: When paired with a compatible terminal board and HART multiplexer, the AI-917-00 passes HART secondary variable data and device diagnostic information to YOKOGAWA’s Plant Resource Manager (PRM) or third-party asset management systems. This enables predictive maintenance workflows based on transmitter self-diagnostics without additional field wiring.
• Scalable I/O Architecture: The CENTUM VP platform supports up to 2,048 I/O points per FCS domain, with AI-917-00 cards populating IOU slots in any combination with other I/O card types. This mixed-card architecture allows engineers to match I/O density precisely to process requirements without over-provisioning dedicated analog input chassis.
• Unified Engineering Environment: All AI-917-00 channel parameters — input range, filter time constant, alarm limits, substitute value, and HART enable — are configured within CENTUM VP’s System View without requiring separate hardware DIP switches or jumpers. Configuration changes are downloaded to the FCS over the Vnet/IP network and take effect at the next control scan, supporting online tuning of filter constants during commissioning.
• Long-Term Platform Support: YOKOGAWA’s CENTUM VP platform carries a published lifecycle commitment extending beyond 2030, with spare parts and firmware support guaranteed. Specifying the AI-917-00 for new installations or brownfield expansions aligns with a long-term asset management strategy that avoids premature obsolescence-driven capital expenditure.

Quality Assurance & Global Logistics

Every YOKOGAWA AI-917-00 unit offered through siemensplc.com is sourced through verified industrial automation supply channels and subjected to a structured incoming quality inspection protocol before being made available for sale.

Inspection Protocol: Physical examination covers connector pin integrity, PCB surface condition, label legibility, and housing dimensional conformance. Part markings — including YOKOGAWA part number, revision suffix, date code, and country of origin — are cross-referenced against YOKOGAWA’s published documentation to confirm authenticity. Select inventory batches undergo bench-level power-on verification and backplane communication checks using CENTUM VP-compatible test fixtures.

Packaging and Shipment: Units are packed in anti-static shielding bags, enclosed in moisture-barrier packaging with desiccant, and cushioned with closed-cell foam inserts rated for the module’s weight and fragility class. Outer cartons are labeled with part number, quantity, and handling instructions. All shipments originate from our warehouse in Xiamen, China, with access to major international freight forwarders and express courier networks (DHL, FedEx, UPS, SF International).

Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for every international shipment. HS Code classification is provided upon request to facilitate customs clearance in the destination country. For orders requiring a certificate of conformance or functional test report, these documents are prepared and included with the shipment.

Warranty: A 12-month functional warranty covers all AI-917-00 units from the date of shipment. Units that exhibit functional failure under normal operating conditions within the warranty period are eligible for replacement or credit, subject to inspection. Warranty claims are processed within 5 business days of receipt of the returned unit.

Lead Time: In-stock units ship within 1–3 business days of order confirmation. For quantities exceeding available stock, sourcing lead time is typically 2–4 weeks. Project-level BOM procurement with consolidated shipment can be arranged for multi-line orders.
