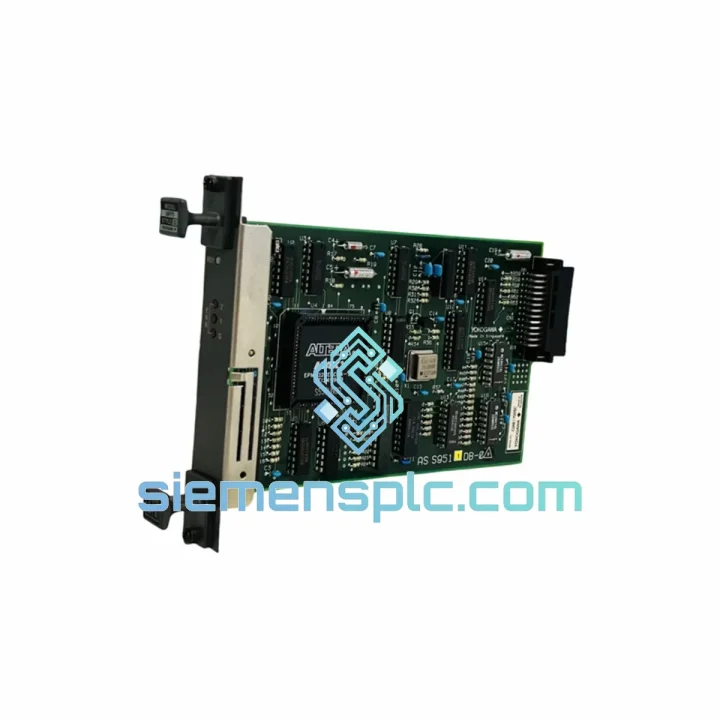

YOKOGAWA AIP171-S2 DCS Analog Input Module

YOKOGAWA AIP171-S2 — Stop the Bleed: Every Minute of DCS Downtime Costs You Real Money

Your CENTUM VP or CS 3000 Field Control Station just threw a fault. The AIP171-S2 analog input module is dead. The process is down. Your maintenance team is standing by, your operations manager is on the phone, and the clock is running. This is not the moment for a 6-week lead time from the OEM.

We stock the YOKOGAWA AIP171-S2 in Xiamen, China. Verified original. Bench-tested before dispatch. DHL/FedEx express to your plant gate — most destinations in 3–5 business days. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an AIP171-S2 in a live CENTUM VP or CS 3000 system is straightforward if you follow the sequence. Skip a step and you risk a second fault or a corrupted I/O map. Here is the field procedure as I run it on-site:

Step 1 — Confirm the fault before you pull the card. On the HIS (Human Interface Station), navigate to the FCS hardware status screen. Look for ALM indicators on the specific slot. Common fault codes associated with AIP171-S2 failure:

• IOM FAIL — Module hardware fault, typically power rail or internal ADC failure.
• COM ERR — V-net communication loss; check bus termination and cable seating before condemning the module.
• CH FAIL (individual channel) — Single-channel ADC or input protection circuit failure; module may still be partially functional.
• OVER RANGE / UNDER RANGE on all 16 channels simultaneously — Strong indicator of module-level failure rather than field wiring issue.

Step 2 — Check if hot-swap is enabled on your FCS. CENTUM VP supports online module replacement (OMR) if the FCS is configured for it. Verify in the FCS builder that the slot is set to OMR-capable. If not, you will need a controlled shutdown of the affected FCS node — coordinate with operations before proceeding.

Step 3 — Address assignment. The AIP171-S2 uses slot-based auto-addressing within the FCS rack. There are no physical DIP switches or rotary address selectors on this module — the slot position in the ESB bus determines the I/O address. Seat the replacement module in the exact same slot number as the failed unit. The FCS will auto-recognize the module type on power-up and restore the I/O map from its internal database.

Step 4 — Firmware compatibility check. Before insertion, verify the firmware revision on the replacement module matches or is forward-compatible with your FCS CPU firmware. Mismatched firmware between the AIP171-S2 and the CP345/CP451 processor can cause a MODULE MISMATCH alarm. Check the firmware label on the module PCB edge and cross-reference against your FCS builder project file (Tools → Hardware Configuration → Module Firmware Revision).

Step 5 — Post-swap channel verification. After the module seats and the FCS acknowledges it, run a channel-by-channel loop check from the field. Do not rely solely on the HIS alarm clearing — confirm live 4–20 mA signals are reading correctly on all 16 channels before releasing the loop to automatic control. Pay particular attention to channels connected to safety-critical measurements (high-pressure, high-temperature, or SIS-integrated loops).

Step 6 — Clear the fault history. On the HIS, acknowledge and clear the IOM FAIL alarm log for the affected slot. If the alarm re-triggers within 30 minutes of installing the replacement, suspect a backplane connector issue or a V-net bus fault upstream of the module — not the module itself.

Reliability in Harsh Conditions

The AIP171-S2 was not designed for a climate-controlled server room. It was built for the floor — the kind of environment where ambient temperature swings 30°C between day and night shifts, where vibration from nearby compressors never stops, and where humidity from coastal or tropical plant locations pushes condensation into every unsealed enclosure.

YOKOGAWA’s FCS module design incorporates conformal coating on the PCB assembly, providing a barrier against moisture ingress and corrosive airborne contaminants common in chemical and petrochemical environments. The module’s internal power regulation is designed to tolerate backplane voltage fluctuations without triggering spurious faults — a known weakness in competing platforms.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges generated by rotating machinery in pump houses and compressor stations. The module’s card-edge connector uses gold-plated contacts with a wipe action on insertion, maintaining low-resistance electrical contact even after repeated hot-swap cycles in dusty environments.

Thermal management is passive — no fans, no moving parts. The module dissipates heat through the FCS rack’s forced-air cooling system. In installations where rack cooling has degraded (blocked filters, failed rack fans), the AIP171-S2 will typically show elevated operating temperature before failing, giving maintenance teams a warning window. Monitor the FCS hardware temperature diagnostic on the HIS as part of your preventive maintenance routine.

Every unit we ship from Xiamen has been bench-tested under load: powered up, all 16 channels stimulated with calibrated 4–20 mA signals, and verified against the module’s internal diagnostics before packaging. We do not ship untested stock.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx service connections. Here is how the shipment moves from our shelf to your plant gate:

• Day 0 — Order confirmation: Payment or PO confirmed before 14:00 CST triggers same-day packaging. The AIP171-S2 is wrapped in anti-static ESD shielding bag, placed in foam-lined inner carton, and sealed in a double-wall export carton with humidity indicator card.
• Day 0 — Export documentation: Commercial invoice, packing list, and certificate of origin prepared. HS Code 8537.10 declared. For customers requiring a CITES-exempt declaration or specific customs valuation format, advise us at order time.
• Day 1 — Carrier pickup: DHL Express or FedEx International Priority collects from our facility. Tracking number issued to you within 2 hours of pickup scan.
• Day 2–4 — In-transit: Xiamen → Hong Kong or Shanghai hub → destination country gateway. Most Southeast Asian destinations clear customs by Day 3. Europe and North America typically Day 4–5.
• Day 3–5 — Delivery: Door-to-door delivery to your plant or warehouse address. Signature required. We monitor tracking proactively — if a customs hold occurs, we contact you immediately with the required documentation.

For destinations with import restrictions on electronic components or specific country-of-origin requirements, contact us before ordering. We have experience shipping to refineries and power plants across the Middle East, Southeast Asia, Europe, and the Americas and can advise on the correct documentation package for your customs authority.
