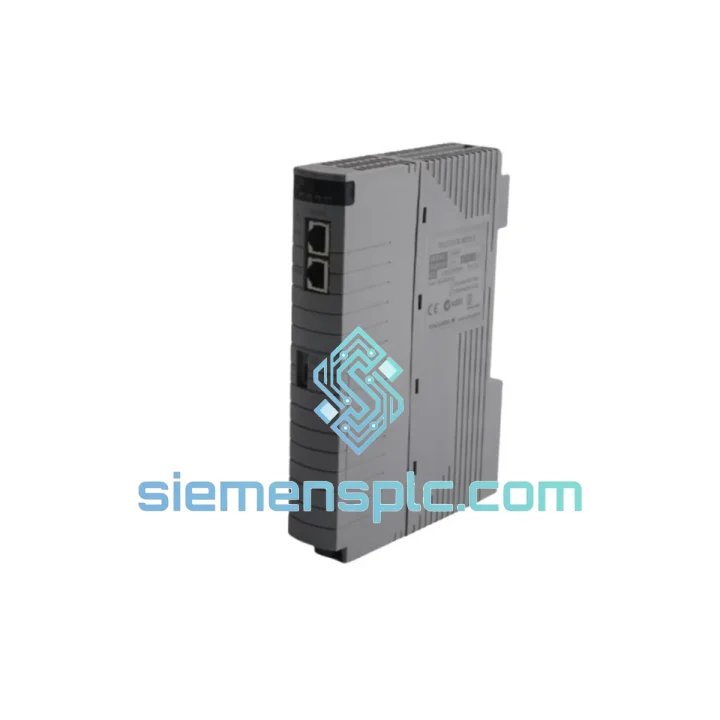

YOKOGAWA ATR8S-00 S2 Analog I/O Module – CENTUM VP

YOKOGAWA ATR8S-00 S2: Precision Analog Signal Interface for CENTUM VP Field Control Stations

In continuous-process industries — refining, petrochemical, LNG, and power generation — the analog I/O layer is the sensory nervous system of the entire control architecture. Every 4–20 mA loop, every thermocouple input, every valve positioner feedback signal passes through this layer before the DCS controller can act. When that interface degrades or fails, the control loop opens, the operator loses real-time process visibility, and the plant faces either an unplanned shutdown or a dangerous excursion from safe operating limits. The YOKOGAWA ATR8S-00 S2 is the precision analog signal processor engineered to prevent exactly that scenario within the CENTUM VP Field Control Station platform.

The ATR8S-00 S2 functions as a dedicated analog I/O module within the CENTUM VP FCS node architecture. YOKOGAWA’s CENTUM VP is a mature, widely deployed distributed control system found in tier-1 process facilities across Asia-Pacific, the Middle East, Europe, and the Americas. The ATR8S-00 S2 occupies a specific slot in the I/O nest, interfacing field instruments directly to the FCS processor via the internal nest bus. Its design reflects YOKOGAWA’s engineering philosophy: deterministic signal conversion, channel-level isolation, and hardware-level diagnostics that surface faults before they propagate into process upsets.

From a hardware architecture standpoint, the ATR8S-00 S2 employs per-channel optical isolation between the field-side terminals and the backplane bus. This galvanic barrier eliminates ground-loop interference — a persistent problem in large process plants where field cable runs span hundreds of meters across multiple earthing zones. The isolation barrier also protects the FCS backplane from transient overvoltages induced by nearby high-voltage switching equipment, motor drives, and lightning events on exposed field cable routes.

Signal conditioning within the module uses a successive-approximation ADC architecture with hardware oversampling and digital filtering. This approach delivers stable readings even in environments with high-frequency conducted noise on the 4–20 mA loops. The module’s internal reference is temperature-compensated, maintaining conversion accuracy across the full industrial operating temperature range without requiring field recalibration during seasonal ambient temperature swings.

The ATR8S-00 S2 integrates with the CENTUM VP FCS through the standard YOKOGAWA I/O nest bus protocol. The FCS processor polls each I/O module at a deterministic scan rate, and the ATR8S-00 S2 responds with both process values and module health status in a single transaction. This dual-data response model means the control system always has current diagnostic information alongside process data — a design that supports YOKOGAWA’s plant asset management (PAM) framework and enables predictive maintenance workflows without additional hardware.

For maintenance engineers managing aging CENTUM VP installations, the ATR8S-00 S2 is a direct plug-in replacement in compatible I/O nests. No firmware patching, no rack reconfiguration, and no engineering workstation intervention is required for a like-for-like swap in most FCS configurations. This characteristic is critical in plants where control system downtime carries significant production and safety implications.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Specifications are based on YOKOGAWA published documentation. Contact [email protected] for the full datasheet and application-specific parameters.

Hardware Logical Analysis

The ATR8S-00 S2’s hardware design addresses three primary failure modes that affect analog I/O modules in heavy-process environments: ground-loop interference, conducted EMI, and thermal drift.

Optical Isolation Architecture: Each analog channel is isolated from the nest bus through a dedicated optocoupler stage. The isolation voltage rating ensures that field-side faults — including insulation breakdown on long cable runs — cannot propagate to the FCS backplane or adjacent modules. In multi-drop 4–20 mA installations where multiple field devices share a common return conductor, this per-channel isolation prevents cross-channel contamination that would otherwise introduce systematic measurement errors across all channels simultaneously.

EMC Design and Shielding: The module’s PCB layout follows YOKOGAWA’s internal EMC design rules, which include dedicated ground planes separating analog and digital circuit domains, controlled-impedance traces for the ADC reference path, and ferrite bead filtering on all power supply rails entering the analog section. The module housing provides additional shielding against radiated interference from adjacent variable-frequency drives and high-current bus bars common in process plant electrical rooms.

Temperature-Compensated Reference: The ADC voltage reference uses a bandgap circuit with a low-drift trimming network. This maintains conversion accuracy within specification across the full 0–60°C operating range without requiring periodic field recalibration — a significant operational advantage in outdoor or poorly climate-controlled marshalling cabinet installations.

Diagnostic Register Architecture: The module maintains an internal status register that the FCS processor reads at each scan cycle. This register encodes channel-level fault flags (open-circuit detection, over-range, under-range) alongside module-level health indicators (power supply voltage, internal temperature). The FCS can surface these diagnostics to the operator HMI and to YOKOGAWA’s Plant Resource Manager (PRM) without any additional field wiring or secondary diagnostic hardware.

Hot-Swap Mechanical Design: The module’s connector and locking mechanism are rated for repeated insertion cycles, supporting online replacement in CENTUM VP configurations that permit I/O module hot-swap. The backplane connector uses gold-plated contacts to maintain low contact resistance across the module’s service life, even in environments with airborne sulfur compounds or humidity cycling.

System Integration Benefits

• Deterministic Scan Cycle Compliance: The ATR8S-00 S2 responds to FCS polling within the nest bus timing window, ensuring that analog process values are updated at the configured FCS scan rate without introducing jitter that could destabilize fast control loops such as flow or pressure controllers.
• Unified Diagnostic Transparency: Module health data is embedded in the standard I/O bus transaction, making fault detection a zero-overhead operation for the FCS processor. Operators receive channel-level alarms on the HMI without any additional configuration or secondary diagnostic wiring.
• Direct CENTUM VP Engineering Integration: The module is recognized natively by the CENTUM VP Engineering Workstation (EWS). I/O tag assignment, range configuration, and alarm limit setting are performed through the standard EWS I/O builder — no third-party configuration tools or manual register mapping required.
• Reduced Spare Parts Complexity: As a standard YOKOGAWA catalog module, the ATR8S-00 S2 can serve as a common spare across multiple FCS nodes in the same plant, reducing the total number of unique spare part numbers that maintenance teams must stock and manage.
• Plant Asset Management (PAM) Compatibility: The module’s diagnostic data feeds directly into YOKOGAWA’s PRM software, enabling condition-based maintenance scheduling based on actual module health metrics rather than fixed time-based replacement intervals.
• Scalable I/O Expansion: Additional ATR8S-00 S2 modules can be added to existing I/O nests to expand analog channel count as process requirements grow, without requiring FCS processor upgrades or changes to the control network topology.
• Consistent Signal Quality Across Channel Count: The per-channel isolation and independent ADC architecture ensure that signal quality on any given channel is independent of the load on adjacent channels — a critical property in high-density I/O nests where multiple high-priority control loops share a single module.
• Long-Term Platform Availability: YOKOGAWA maintains CENTUM VP as an active platform with a published long-term support commitment. The ATR8S-00 S2 remains a current catalog item, ensuring that replacement modules will be available throughout the operational life of existing CENTUM VP installations.

Quality Assurance & Global Logistics

Every ATR8S-00 S2 unit supplied through our network is sourced as genuine YOKOGAWA OEM hardware. We do not supply counterfeit, cloned, or unauthorized reproduction modules. Our procurement chain traces each unit to its origin — whether new factory stock, authorized distributor inventory, or decommissioned OEM project surplus — and each unit undergoes a documented inspection process before dispatch.

Inspection Protocol: Visual examination for physical damage, connector pin integrity, and label authenticity. Functional bench test under simulated CENTUM VP nest bus conditions where test fixtures are available. ESD-safe handling throughout the inspection and packaging process.

Packaging & Shipping: Units are packed in anti-static bags with moisture-barrier outer packaging and foam cushioning rated for international air freight handling. We ship from Xiamen, China — a major export hub with direct air freight connections to major industrial centers in Southeast Asia, the Middle East, Europe, and the Americas. Typical transit times: 3–5 business days to most destinations via DHL Express or FedEx International Priority. Sea freight consolidation is available for bulk orders.

Export Documentation: Commercial invoice, packing list, certificate of origin, and airway bill are provided as standard with every shipment. Additional documentation (material safety data, test reports, customs HS code declarations) is available upon request.

Warranty: All units carry a 12-month warranty from the date of shipment. Warranty claims are handled directly by our technical team, with replacement or credit issued upon verification of the reported fault.
