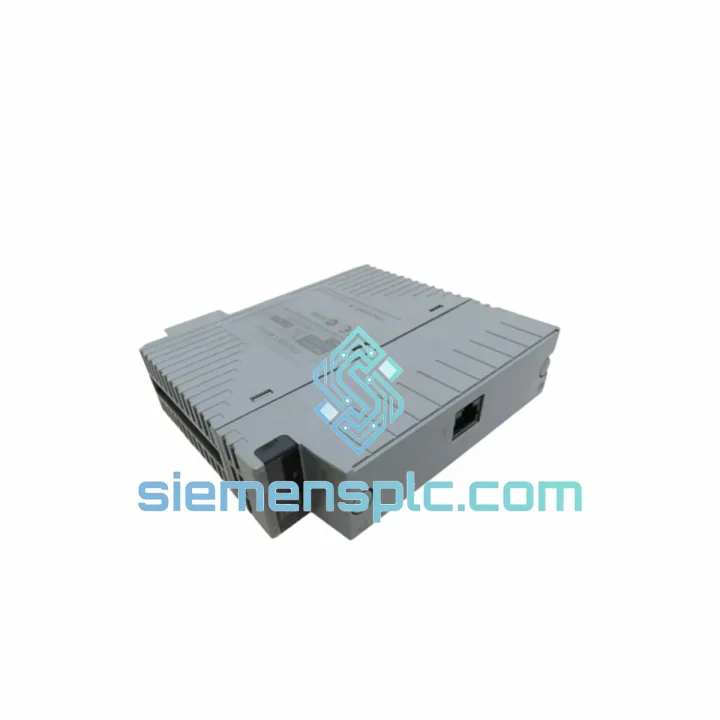

YOKOGAWA CP47100 DCS CPU Module

YOKOGAWA CP47100 — Stop the Bleed: Get Your CENTUM CS 3000 Back Online Before the Next Shift

Your FCS is down. The HIS is throwing CPU FAIL alarms. The board is dark. Every minute that passes is money — and in a refinery or chemical plant, it’s not just money, it’s safety. The YOKOGAWA CP47100 is the Field Control Station CPU module that sits at the core of your CENTUM CS 3000 system, and when it fails, nothing else matters until it’s replaced. We stock it. We ship it today. From Xiamen to your site — DHL or FedEx, door to door.

This is not a listing page. This is a recovery tool. If you’re reading this at 2 AM with a plant manager breathing down your neck, scroll to the contact block at the bottom and send us a message right now. We respond within the hour.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The CP47100 fails in predictable ways. Here’s what I’ve seen in the field and what you need to know before you pull the card:

Common Failure Signatures:

• ERR LED solid red on FCS front panel — CPU has halted. Check the HIS alarm summary for FCS CPU FAIL or CONTROL BUS ERROR. If Vnet/IP link is still up but control is frozen, the CP47100 itself is the prime suspect before the ESB bus cards.
• Intermittent FCS restart loops — Often caused by capacitor degradation on aging CP47100 boards (units 8+ years in service). The module powers up, initializes, then drops. Replace, don’t troubleshoot.
• Redundancy switchover failure — If your standby CPU won’t take over during a primary fault, verify that both CP47100 units are running identical firmware revisions. A mismatch of even one minor revision level will block hot-standby synchronization.
• Vnet/IP communication loss post-replacement — After swapping the CP47100, the new module must be assigned the correct FCS node address. This is set via the rotary address switches on the module face (SW1/SW2). Confirm the node address matches the original before powering up.

Replacement Procedure — Field Checklist:

• ☐ Confirm redundant CPU is active and controlling before pulling the failed primary. Never pull the CP47100 if it is the only active CPU in a non-redundant FCS — you will drop the loop.
• ☐ Note the rotary switch positions (SW1, SW2) on the failed module before removal. Photograph them.
• ☐ Set identical switch positions on the replacement CP47100 before insertion.
• ☐ Verify firmware version on the replacement unit via the HIS Engineering mode after insertion. If firmware differs, use the CENTUM CS 3000 Engineering Tool to download the correct revision before enabling the module.
• ☐ After insertion, monitor the FCS status display on HIS for ONLINE confirmation. Redundancy re-sync typically completes within 60–90 seconds.
• ☐ Check the Vnet/IP communication status in the System View. All FCS nodes should show green within 2 minutes of module reinsertion.
• ☐ Run a full I/O scan check from the HIS to confirm all field signals are reading correctly before releasing the loop to automatic control.

Configuration Notes:

• The CP47100 does not self-address automatically — the node address is hardware-set via rotary switches. This is the single most common commissioning error on replacement units.
• If your FCS was running in enhanced scan mode (sub-100ms loops), confirm the replacement CP47100 carries the same hardware revision suffix. Early hardware revisions have scan rate limitations that later revisions removed.
• For plants running CENTUM CS 3000 R3.x or later, ensure the replacement module’s firmware is compatible with your HIS software version. Cross-check the YOKOGAWA compatibility matrix before ordering if you are unsure.

Reliability in Harsh Conditions

The CP47100 was not designed for a server room. It was designed for the inside of a field control station cabinet sitting 30 meters from a cracking furnace. YOKOGAWA built this module to operate continuously in environments that would destroy consumer-grade electronics within weeks.

The board assembly uses conformal coating on critical circuit areas, providing resistance against humidity ingress and airborne chemical contamination — a real concern in fertilizer plants, offshore platforms, and coastal petrochemical facilities where salt-laden air accelerates corrosion on unprotected PCBs. Vibration tolerance is engineered to handle the mechanical stress of compressor halls and pump stations where structural vibration is constant and unavoidable.

Thermal management is handled through passive convection design optimized for the FCS cabinet airflow pattern. The module is rated for continuous operation at 55°C ambient — not peak, continuous. In practice, well-maintained FCS cabinets with functioning cooling fans keep the CP47100 well within its thermal envelope even in tropical climates without air conditioning.

Units we supply from our Xiamen warehouse are stored in climate-controlled conditions, in original ESD-safe packaging with desiccant. Boards are not left on open shelves. Every unit that ships has been visually inspected for physical damage, pin integrity, and label authenticity before it goes into a box.

Global Express Logistics

We ship from Xiamen, China — one of the most active export hubs on the southeast coast, with direct DHL and FedEx international gateway access. This matters when you’re counting hours, not days.

Standard export timeline from order confirmation:

• Same-day dispatch — Orders confirmed before 14:00 CST ship the same business day.
• DHL Express International — 2–4 business days to most of Southeast Asia, Middle East, and Europe. 3–5 business days to the Americas and Africa.
• FedEx International Priority — Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage.
• Export documentation — Commercial invoice, packing list, and certificate of origin prepared same day. HS code classification handled by our logistics team. We have experience clearing industrial automation components through customs in 40+ countries.
• Tracking — AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your email or WhatsApp.

For urgent plant shutdowns requiring weekend or holiday dispatch, contact us directly on WhatsApp. We maintain logistics contacts for out-of-hours bookings and can arrange Saturday pickup with DHL for critical shipments.

All modules are packed in double-wall corrugated cartons with anti-static foam inserts and moisture barrier bags. The CP47100 weighs approximately 1.23 kg — shipping weight with packaging is typically under 2.5 kg, keeping express freight costs manageable even for single-unit emergency orders.
