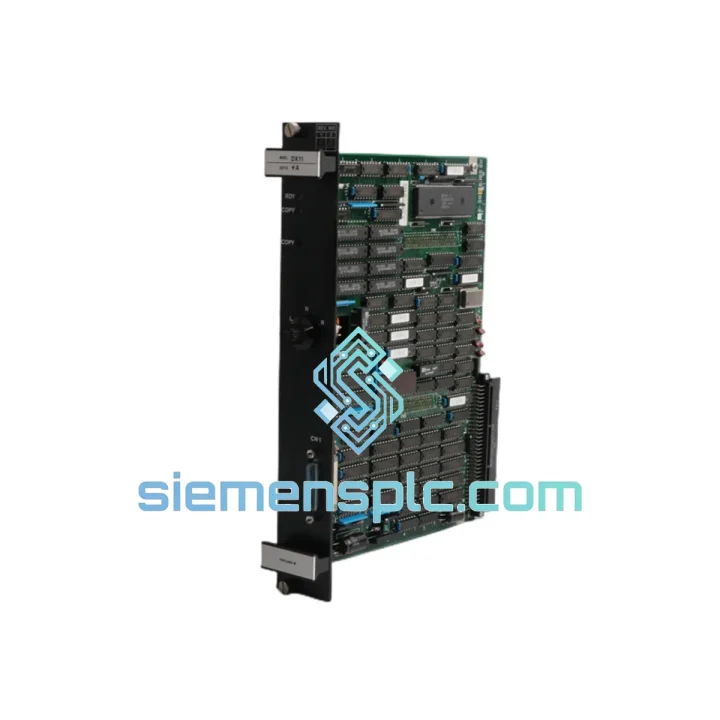

YOKOGAWA DX11*A S9081BE-0 Duplex Control Card

YOKOGAWA DX11*A S9081BE-0: Stop the Clock on Your Unplanned Shutdown

Every minute your CENTUM CS 3000 field control station sits offline, you’re bleeding money — lost throughput, idle crews, and a plant manager breathing down your neck. The DX11*A S9081BE-0 duplex control card is the exact module that keeps your redundant FCS architecture alive, and we have it on the shelf right now. No lead-time negotiation. No waiting on a factory allocation. We ship from Xiamen within 24 hours of order confirmation via DHL Express or FedEx Priority — door to door, anywhere on the planet.

This is not a grey-market pull. Every unit we dispatch carries its original YOKOGAWA revision markings, passes a pre-shipment functional check, and ships with a 12-month warranty. When your process engineer calls at 2 AM asking for an ETA, you’ll have a tracking number to give them.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a duplex control card mid-campaign is not a plug-and-play exercise. Here’s what ten years of field work has taught me about getting this module back online without creating a second incident:

1. Confirm the fault is the card, not the backplane. Before you pull anything, check the FCS status display for ALM LED patterns. A solid red on the primary card with the standby card still green usually points to a CPU or memory fault on the primary — that’s your DX11*A. A simultaneous fault on both cards almost always means a backplane power rail issue or a corrupted V-net token. Don’t replace the card until you’ve ruled out the bus.

2. Note the node address before removal. The DX11*A S9081BE-0 uses a rotary switch (SW1) on the card face to set the FCS node address on the V-net. Photograph or record the switch position before extraction. Inserting a replacement with the wrong node address will cause an address conflict and the entire FCS will refuse to initialize — a mistake that costs another 30 minutes minimum.

3. Firmware revision matching. The suffix S9081BE-0 encodes the firmware build. If your system is running CENTUM CS 3000 R3.08 or later, confirm the replacement card’s embedded firmware is compatible. Mismatched firmware between the primary and standby cards will prevent duplex synchronization and leave you running simplex — which defeats the entire purpose of the redundant architecture.

4. Hot-swap procedure. The CS 3000 FCS supports online card replacement only when the standby card is healthy and synchronized. If both cards have failed simultaneously, you must take the FCS offline, replace the primary card first, allow it to boot and synchronize, then replace the standby. Attempting to hot-swap with no healthy card in the pair will cause a process trip.

5. Common fault codes to know:

• ALM-1 (CPU Fault): Internal processor error — card replacement required.
• ALM-3 (Memory Parity Error): RAM corruption; can occasionally be cleared by a cold restart, but recurrence means hardware failure.
• ALM-7 (Duplex Sync Loss): Primary and standby cards have lost synchronization — check V-net cabling and termination resistors before blaming the card.
• ALM-9 (Node Address Conflict): Two cards on the same V-net segment share an address — check SW1 settings on all FCS nodes.

6. Post-replacement verification. After seating the new card and powering up, confirm the FCS status transitions from INIT → SYNC → RUN within 90 seconds. If it stalls at SYNC, the firmware handshake between primary and standby has failed — recheck revision compatibility.

Reliability in Harsh Conditions

Process plants are not server rooms. The DX11*A S9081BE-0 is engineered to operate continuously in environments that would destroy commercial-grade electronics within weeks. YOKOGAWA subjects this card to IEC 60068-series environmental stress testing before it leaves the factory:

• Vibration resistance: Sinusoidal sweep 10–150 Hz, 9.8 m/s² — validated for installations adjacent to rotating machinery, compressors, and pump skids where structural vibration is constant.
• Thermal cycling: Rated for continuous operation at 60 °C ambient with no derating. The onboard thermal management handles the heat generated by the dual-processor architecture without throttling.
• Humidity and condensation: Conformal coating on the PCB provides protection against humidity excursions up to 95 % RH. In coastal or tropical plant environments, this coating is the difference between a card that lasts five years and one that corrodes in eighteen months.
• EMI/RFI immunity: Designed to IEC 61000-4 series immunity levels. The card maintains stable operation in the presence of variable-frequency drives, high-voltage switchgear, and radio transmitters operating in the same facility.
• Electrostatic discharge: ESD protection on all I/O interfaces rated to IEC 61000-4-2 Level 4 — critical when technicians are working in low-humidity environments without proper grounding protocols.

Units sourced through us undergo a secondary visual and functional inspection before dispatch. We check for capacitor bulge, PCB delamination, connector pin integrity, and corrosion on the backplane edge connector — the four most common failure modes on aged surplus stock.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct daily freight connections to DHL Express, FedEx International Priority, and UPS Worldwide Express. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to carrier. Tracking number issued within 4 hours of confirmation.
• DHL Express to Europe: 2–3 business days door to door. Customs clearance handled with pre-lodged commercial invoice and HS code 8537.10 declaration.
• FedEx Priority to North America: 2–4 business days. We pre-fill EEI/AES filing for shipments above USD 2,500 to eliminate customs holds.
• Middle East and Southeast Asia: 1–3 business days via DHL or FedEx, depending on destination country customs processing speed.
• Remote or restricted destinations: Contact us before ordering. We have experience routing shipments through freight forwarders for destinations with import restrictions on industrial electronics.

All shipments include full commercial documentation: packing list, commercial invoice with declared value, certificate of origin, and — on request — a material traceability statement. For customers in the EU, we can provide an EORI-compliant import package to streamline customs clearance at your end.

We do not consolidate emergency orders with regular freight. Your replacement card ships in its own dedicated consignment, padded and anti-static bagged, in a double-wall carton rated for international air freight handling.
