YOKOGAWA F3BU06-0N PLC Base Module – FA-M3 Series

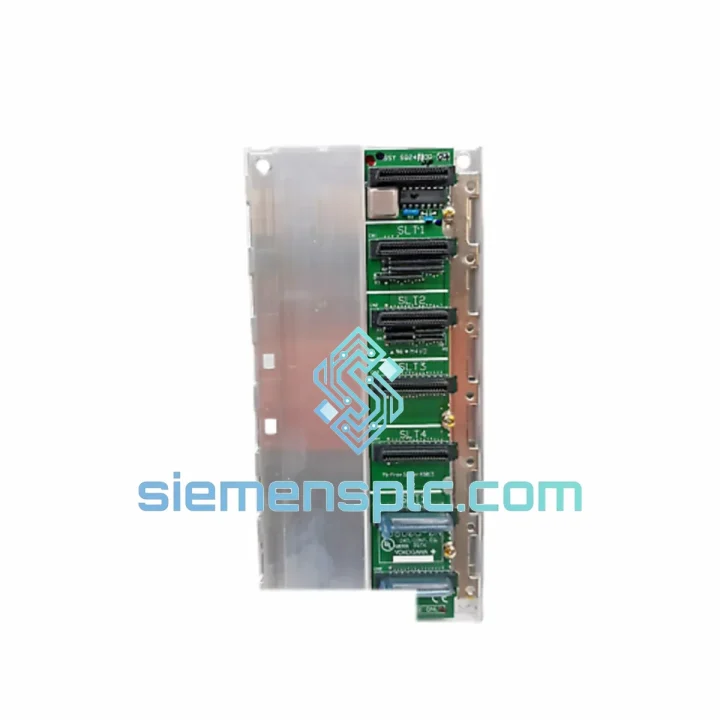

YOKOGAWA F3BU06-0N: 6-Slot Backplane Base Unit for FA-M3 Range-Free Multi-Controller Systems

The F3BU06-0N is the structural backbone of any FA-M3 control node. In a modular PLC architecture, the base unit is not a passive carrier — it is the active backplane that arbitrates power distribution, internal bus timing, and physical slot addressing for every module inserted into the rack. Without a correctly specified base unit, neither CPU scan cycles nor I/O refresh intervals can be guaranteed to meet deterministic control requirements. The F3BU06-0N provides six addressable module slots on YOKOGAWA’s proprietary FA-M3 internal bus, enabling engineers to build compact yet scalable control nodes for process-intensive industrial environments.

Within the FA-M3 ecosystem, base units are categorized by slot count: 4-slot (F3BU04-0N), 6-slot (F3BU06-0N), and 12-slot (F3BU12-0N). The 6-slot variant occupies the mid-range position — sufficient for a CPU module, a power supply, and up to four I/O or communication modules in a single rack, while maintaining a panel footprint that fits standard 19-inch enclosures without extension. This makes the F3BU06-0N the default selection for standalone control cells, remote I/O stations, and distributed control nodes where I/O point counts fall in the 64–256 range per station.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The F3BU06-0N implements a parallel backplane bus architecture that differs fundamentally from serial fieldbus-based expansion systems. Each of the six module slots is connected to a shared address/data bus with individual slot-select lines, allowing the CPU to perform direct memory-mapped I/O access to any installed module without protocol overhead. This design eliminates the serialization latency inherent in PROFIBUS or Modbus-based remote I/O, making the FA-M3 backplane suitable for control loops with scan times below 1 ms.

Power distribution within the F3BU06-0N uses a dedicated power bus rail that is electrically isolated from the signal bus. The power rail delivers both +5 VDC (logic supply) and +24 VDC (field-side supply for I/O modules) through low-impedance copper traces rated for the aggregate current draw of a fully populated 6-slot rack. This separation prevents switching noise from I/O field circuits from coupling into the CPU logic supply — a critical design consideration in environments with variable-frequency drives (VFDs) or large inductive loads operating in proximity to the control panel.

The backplane connector system uses a high-density, gold-plated edge connector interface at each slot position. Gold plating (minimum 0.8 µm per IEC 60512-11-7) ensures contact resistance remains below 30 mΩ over the rated 200-insertion lifecycle, maintaining signal integrity across the full operating temperature range. The mechanical keying of the connector prevents incorrect module orientation, eliminating the risk of reverse-insertion damage during field maintenance.

EMC hardening on the F3BU06-0N is achieved through a combination of board-level filtering and chassis-level shielding. Ferrite beads are placed on all inter-slot signal lines at the board entry points, attenuating common-mode noise above 10 MHz. The base unit chassis is constructed from zinc-coated steel with continuous ground bonding between the DIN rail mounting clips and the backplane ground plane, providing a low-impedance return path for shield currents and suppressing radiated emissions in compliance with IEC 61000-4-3 (10 V/m radiated immunity).

System Integration Benefits

• Deterministic I/O Refresh: The parallel backplane bus architecture guarantees fixed-latency data transfer between the CPU and all installed I/O modules, enabling control loops with sub-millisecond scan times without jitter accumulation across scan cycles.
• Scalable Node Architecture: A single F3BU06-0N can be extended to a 12-slot or multi-rack configuration using FA-M3 expansion cables, allowing the control node to grow from 4 I/O modules to 64+ modules without replacing the base hardware or reprogramming the CPU addressing scheme.
• Hot-Swap Ready Infrastructure: When paired with FA-M3 hot-swap-capable I/O modules, the F3BU06-0N backplane supports module replacement under power without interrupting the CPU scan cycle, reducing planned maintenance windows to zero for non-CPU module changes.
• Unified Diagnostic Transparency: All modules installed in the F3BU06-0N report hardware fault status, communication error counts, and power supply deviation data directly to the CPU via the backplane bus, enabling the YOKOGAWA engineering tool (ToolBox) to display rack-level diagnostics without requiring a separate diagnostic fieldbus.
• Mixed Module Population: The six slots accept any combination of FA-M3 digital I/O, analog I/O, high-speed counter, motion control, and communication modules without slot-type restrictions, giving system architects full flexibility to allocate I/O resources per process requirement rather than per hardware constraint.
• Reduced Panel Wiring Complexity: Centralizing up to four I/O modules on a single backplane eliminates the inter-module wiring that would be required in a distributed terminal block architecture, reducing panel assembly time and the probability of field wiring errors.
• Long-Term Parts Availability: YOKOGAWA’s FA-M3 platform carries a documented long-lifecycle support commitment, with spare parts and replacement modules available for systems installed over 15 years ago. The F3BU06-0N is a standard catalog item with no announced end-of-life date as of 2026.
• IEC 61131-2 Environmental Compliance: The base unit meets IEC 61131-2 Class 3.4 environmental ratings for temperature, humidity, vibration, and shock, qualifying it for installation in outdoor enclosures, marine control rooms, and heavy industrial environments without additional environmental conditioning.
