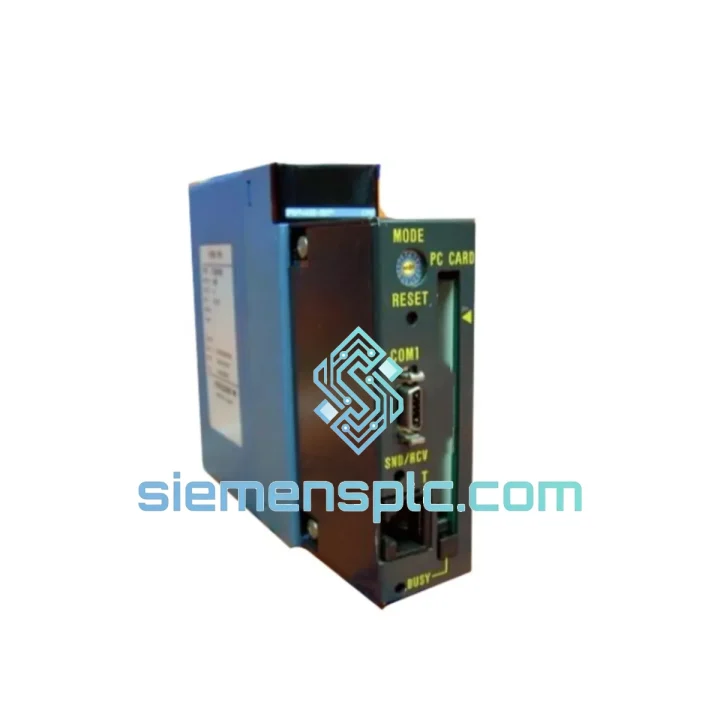

YOKOGAWA F3RP45-2P/L1 PLC CPU Module – FA-M3 Series

YOKOGAWA F3RP45-2P/L1 FA-M3 CPU Controller Module: Backplane Bus Architecture and Real-Time Control Logic

The YOKOGAWA F3RP45-2P/L1 is a CPU controller module designed for deployment within the FA-M3 Versatile Machine Controller platform. Its role in a control loop is not peripheral — it is the deterministic execution core that arbitrates I/O scan cycles, manages inter-module communication over the FA-M3 proprietary backplane bus, and enforces program execution sequencing under hard real-time constraints. In process automation environments where scan jitter directly translates to control deviation, the F3RP45-2P/L1 delivers a stable, predictable execution environment backed by YOKOGAWA’s decades of field-proven controller architecture.

This module operates as the central processing node in an FA-M3 rack assembly. It interfaces with analog, digital, and communication modules through the high-speed parallel backplane, achieving deterministic data exchange without the latency penalties associated with fieldbus-mediated I/O. The dual Ethernet ports support simultaneous SCADA connectivity and peer-to-peer controller communication, enabling network-redundant topologies without external switching overhead.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The F3RP45-2P/L1 is built around a processor architecture optimized for deterministic scan-cycle execution rather than general-purpose throughput. The FA-M3 backplane operates as a synchronous parallel bus, allowing the CPU to address I/O module registers with fixed, bounded latency — a design constraint that eliminates the non-deterministic arbitration delays inherent in serial fieldbus architectures such as PROFIBUS or DeviceNet when used as the primary I/O interface.

Dual-Port Ethernet with Independent MAC Addressing: The two Ethernet interfaces on the F3RP45-2P/L1 are not a simple switch-based split of a single physical port. Each port maintains an independent MAC address and can be assigned to separate IP subnets, enabling simultaneous operation on a plant SCADA network and an isolated peer-to-peer controller mesh. This architecture prevents broadcast storms on the SCADA segment from affecting inter-controller synchronization traffic.

EMC Design and Electrical Isolation: YOKOGAWA’s FA-M3 platform applies multi-layer EMC mitigation at the module level. The F3RP45-2P/L1 incorporates transformer-based galvanic isolation on its communication interfaces, suppressing common-mode noise induced by ground potential differences across large industrial installations. The backplane connector design uses shielded differential signaling to maintain signal integrity in environments with high-frequency switching noise from variable-frequency drives (VFDs) and power converters operating in the same cabinet.

Watchdog and Fault Arbitration Logic: The module implements a hardware watchdog timer independent of the main CPU execution thread. If the scan cycle exceeds the configured watchdog interval — whether due to program logic overrun or a hardware fault — the watchdog asserts a controlled fault output and transitions the system to a defined safe state. This fail-safe arbitration is implemented in dedicated logic circuitry, not in firmware, ensuring it cannot be disabled or bypassed by application code errors.

Memory Architecture: Program memory and data memory are physically separated on the F3RP45-2P/L1, following a Harvard architecture model. This separation prevents runaway data writes from corrupting executable program code — a critical protection in long-running continuous process applications where memory integrity over multi-year operational periods is a design requirement.

System Integration Benefits

• Deterministic I/O Scan: The FA-M3 backplane bus delivers fixed-latency I/O access, enabling the F3RP45-2P/L1 to maintain consistent scan cycle times regardless of I/O module count within the rack — a prerequisite for closed-loop PID control with tight process tolerances.
• Dual-Network Segmentation: Independent Ethernet ports allow simultaneous connection to a supervisory SCADA network and an isolated controller-to-controller synchronization network, eliminating single-point network failure risk without requiring external managed switches.
• IEC 61131-3 Portability: Full compliance with all five IEC 61131-3 programming languages (LD, FBD, ST, IL, SFC) allows existing FA-M3 application code to be migrated to the F3RP45-2P/L1 without language-level rewrites, reducing integration engineering hours.
• Transparent Diagnostics: The module exposes self-diagnostic registers accessible via standard Modbus TCP or YOKOGAWA’s proprietary protocol, providing real-time visibility into CPU load, scan cycle time, communication error counters, and module temperature — data that can be surfaced directly in SCADA historian systems.
• Hot-Swap Compatible Rack Design: Within FA-M3 systems configured for redundancy, the backplane architecture supports controlled module replacement procedures that minimize process interruption, reducing maintenance downtime in continuous-operation facilities.
• Scalable I/O Expansion: A single F3RP45-2P/L1 can manage multiple FA-M3 base units through expansion bus connections, scaling from compact standalone controllers to distributed multi-rack architectures without changing the CPU module or application program structure.
• Long-Term Platform Availability: The FA-M3 platform has maintained backward hardware compatibility across multiple product generations. Existing wiring, base units, and I/O modules remain compatible with current CPU modules, protecting capital investment in installed infrastructure.
• Structured Fault Logging: The F3RP45-2P/L1 maintains an onboard fault log with timestamped entries for communication errors, scan overruns, and hardware faults. This log is retained through power cycles and provides the forensic data necessary for root-cause analysis following process upsets.

Quality Assurance & Global Logistics

Every F3RP45-2P/L1 unit dispatched from our Xiamen, China facility is a genuine YOKOGAWA-manufactured component sourced through traceable supply channels. YOKOGAWA’s manufacturing processes for FA-M3 modules are conducted under ISO 9001-certified quality management systems, with each unit subject to factory acceptance testing prior to release. We do not sell refurbished, re-labeled, or third-party-manufactured substitutes.

Our internal pre-shipment inspection covers physical label and serial number verification against known-genuine reference data, housing integrity assessment, and where applicable, a power-on self-test to confirm the module’s diagnostic routines complete without fault codes. Units are packed in anti-static ESD-safe bags with foam cushioning inside double-wall corrugated cartons, meeting ISTA 2A transport testing standards for international air freight.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and SF Express for time-sensitive orders, with sea freight consolidation available for bulk procurement. Standard in-stock lead time is 1–3 business days to dispatch. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. HS code classification and export compliance screening are conducted prior to dispatch in accordance with applicable Chinese export regulations.

A 12-month functional warranty covers each unit against manufacturing defects and functional failures under normal operating conditions as defined in the YOKOGAWA FA-M3 installation specifications. Warranty claims are processed with full serial number traceability documentation.
