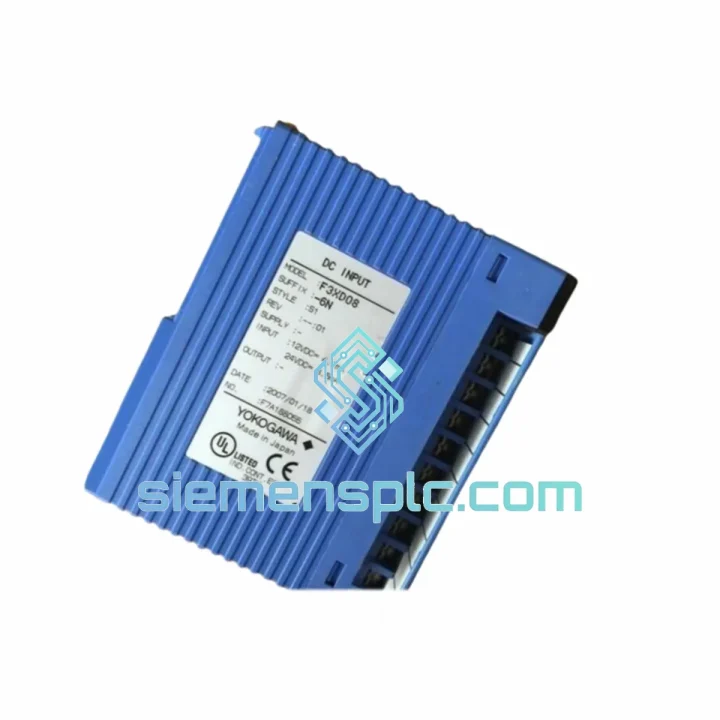

YOKOGAWA F3XD08-6N Digital Input Module – FA-M3 Series

YOKOGAWA F3XD08-6N — 8-Point DC Digital Input Module in the FA-M3 Control Architecture

The YOKOGAWA F3XD08-6N is an 8-channel, 24 VDC digital input module engineered for the YOKOGAWA FA-M3 and FA-M3R programmable controller platform. Within a distributed I/O architecture, this module occupies a single slot on the FA-M3 base unit and presents field-side discrete signals — limit switches, proximity sensors, pushbuttons, relay contacts — to the CPU’s scan cycle with photocoupler-isolated, deterministic response characteristics. Its dual-polarity (sink/source) input topology eliminates the need for separate NPN and PNP module variants, reducing spare-parts inventory and simplifying panel wiring in mixed-sensor environments.

In process industries where control loop integrity is non-negotiable — oil and gas wellhead automation, pharmaceutical batch sequencing, power generation auxiliary systems — the F3XD08-6N delivers the electrical isolation depth and response consistency that field engineers depend on. The module’s photocoupler barrier sustains a minimum 500 VDC isolation between field wiring and the backplane bus, suppressing common-mode noise and ground-loop currents that would otherwise corrupt digital state readings in electrically noisy environments.

From a system architecture perspective, the F3XD08-6N participates in the FA-M3’s synchronous I/O refresh cycle. The CPU module reads all input states at the start of each scan, ensuring that the program logic operates on a consistent, time-stamped snapshot of field conditions rather than asynchronous interrupt-driven data. This scan-synchronous model is fundamental to ladder logic determinism and is a prerequisite for safety-related interlock circuits that must demonstrate repeatable, verifiable response times during functional safety assessments.

The module’s terminal block wiring interface accommodates standard 0.5–1.5 mm² stranded conductors, compatible with the IEC 60947-5-1 wiring practices common in European and Asian industrial panel construction. Each of the 8 input channels has an individual LED status indicator on the module faceplate, providing maintenance technicians with immediate visual confirmation of field signal state without requiring a connected programming terminal — a practical advantage during commissioning and fault-finding under time pressure.

For procurement engineers managing lifecycle risk, the F3XD08-6N remains an active catalog item within YOKOGAWA’s FA-M3 product family. Its physical and electrical compatibility spans the full range of FA-M3 base units — from the compact F3BU04-0N (4-slot) to the F3BU16-0N (16-slot) — and is recognized by all FA-M3 CPU firmware revisions without requiring module-specific configuration files. This backward and forward compatibility within the platform reduces the engineering overhead associated with module substitution during plant expansions or control system upgrades.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The F3XD08-6N’s internal signal path begins at the field terminal block, where the 24 VDC discrete signal drives the anode of a photocoupler LED through a current-limiting resistor network. The resistor values are selected to maintain approximately 7 mA LED drive current across the full 24 VDC ±20 % supply tolerance range, ensuring consistent optical coupling efficiency regardless of field supply fluctuation. The phototransistor output on the logic side is pulled to the module’s internal 5 VDC rail, producing a clean TTL-compatible signal that feeds directly into the backplane interface logic.

The photocoupler selection in this module class typically employs devices with a current transfer ratio (CTR) of 100–300 % at the specified operating current, providing sufficient margin to maintain a defined logic HIGH state even as the LED degrades over the module’s service life — a design consideration that directly affects long-term reliability in 24/7 continuous-operation environments.

EMC performance is addressed at two levels. At the field terminal, transient voltage suppressors (TVS diodes) clamp inductive load switching transients — generated by relay coils, solenoid valves, and motor contactors in the field wiring — to levels below the photocoupler’s absolute maximum ratings. At the backplane interface, the module’s logic circuitry is referenced to the CPU’s isolated ground plane, preventing high-frequency switching noise from the power supply or adjacent output modules from coupling into the input signal path. This two-tier EMC architecture allows the F3XD08-6N to meet IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) requirements without external filtering components in the field wiring.

The dual-polarity (sink/source) input architecture is implemented through a bridge rectifier arrangement at the input terminals, allowing the module to accept current flow in either direction from the field device. This means NPN open-collector sensors (current sinking) and PNP sourcing sensors can both drive the same input channel without rewiring or jumper reconfiguration — a significant advantage in retrofit projects where mixed sensor populations exist in legacy panels.

System Integration Benefits

• Scan-synchronous I/O refresh: All 8 input states are latched at the start of each CPU scan cycle, guaranteeing that ladder logic operates on a temporally consistent field snapshot. This eliminates race conditions between input state changes and program execution that can occur in interrupt-driven I/O architectures.
• Zero-configuration slot recognition: The FA-M3 CPU automatically identifies the F3XD08-6N upon power-up via the backplane identification protocol. No module-specific configuration file or firmware download is required, reducing commissioning time and eliminating configuration mismatch errors during module replacement.
• Deterministic 1 ms response: The fixed ~1 ms input filter time provides a defined, documentable response characteristic for functional safety assessments under IEC 62061 or IEC 61511, where worst-case process safety time calculations require verified sensor-to-CPU latency figures.
• Per-channel LED diagnostics: Maintenance personnel can verify field signal state at the module faceplate without a connected programming terminal, reducing mean time to repair (MTTR) during fault-finding by eliminating the need to establish a communication session before confirming basic I/O status.
• Photocoupler isolation depth: The 500 VDC minimum isolation barrier between field wiring and the backplane bus protects the CPU and other modules from field-side ground faults, preventing a single wiring fault from propagating into a system-wide failure — a critical characteristic in multi-vendor panel environments where field earth potential differences are common.
• Platform-wide base unit compatibility: The F3XD08-6N operates in any slot of any FA-M3 base unit variant (F3BU04-0N through F3BU16-0N), allowing system architects to freely allocate I/O slots without module-type restrictions, simplifying panel layout optimization.
• Removable terminal block wiring: The detachable connector allows the field wiring harness to remain in place during module replacement, eliminating the need to re-terminate individual conductors and reducing the risk of wiring errors during maintenance operations.
• Broad environmental operating range: The 0–55 °C operating temperature and 10–90 % RH humidity tolerance cover the majority of industrial panel environments without requiring supplemental cooling or humidity control, reducing panel infrastructure cost and complexity.

Quality Assurance & Global Logistics

Every YOKOGAWA F3XD08-6N unit supplied by siemensplc.com is sourced as genuine original equipment. Each module carries YOKOGAWA’s factory serial number and production date code, traceable through YOKOGAWA’s manufacturing records. Before dispatch, our technical team performs a visual inspection covering connector integrity, faceplate label legibility, and housing condition. Functional verification confirms that the module’s backplane interface responds correctly to identification queries — the same check performed by the FA-M3 CPU during its power-on self-test sequence.

Packaging follows IEC 60068-2-32 drop-test-compliant standards: each module is individually anti-static bagged, cushioned with EPE foam inserts, and boxed in double-wall corrugated cartons rated for international air freight handling. For multi-unit orders, modules are palletized with stretch-wrap and corner protectors to withstand the mechanical stresses of sea freight container transit.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port — two of China’s primary export hubs for industrial goods. Standard international shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include commercial invoice, packing list, and HS code 8538.90 classification documentation for customs clearance. A 12-month warranty against manufacturing defects is provided with every unit, with replacement or credit resolution processed within 5 business days of confirmed defect verification.
