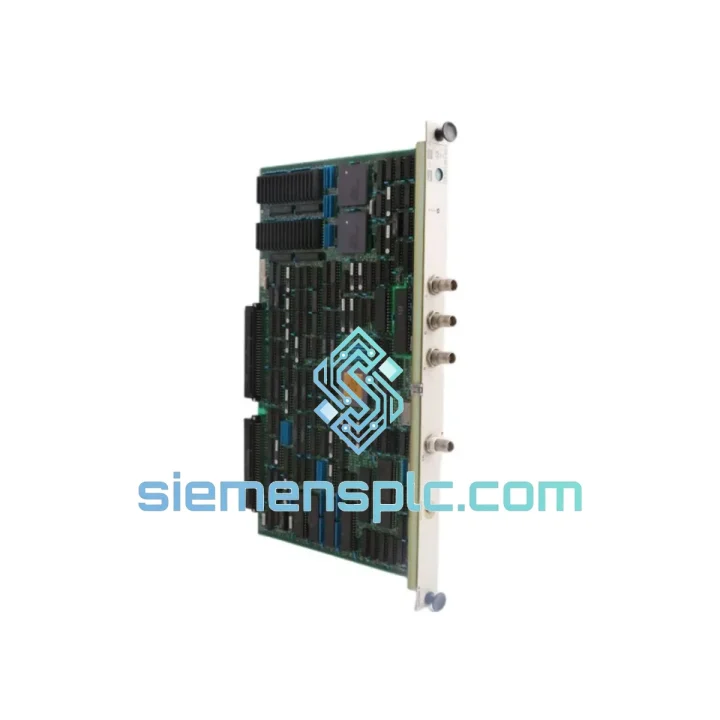

YOKOGAWA IP91*A AS S9881BM-0 Communication Module – CENTUM Series

YOKOGAWA IP91*A AS S9881BM-0 — Inter-Module Communication Backbone for CENTUM DCS Architecture

The YOKOGAWA IP91*A (alternate reference: AS S9881BM-0) is a rack-mounted communication interface module engineered specifically for the CENTUM distributed control system platform. Its primary function is to maintain deterministic, low-latency data exchange between field control stations (FCS), engineering workstations (EWS), and the Vnet/IP supervisory bus. Within a CENTUM control loop, this module acts as the physical and logical bridge between the process I/O layer and the supervisory data highway — a role that directly governs scan cycle integrity, alarm propagation speed, and cross-domain diagnostic visibility.

Unlike generic communication adapters, the IP91*A is designed around YOKOGAWA’s proprietary ESB (Extended Serial Bus) arbitration protocol, which enforces strict token-passing discipline across all connected nodes. This architecture eliminates collision-based retransmission overhead, ensuring that time-critical process variables — such as reactor temperature gradients or compressor surge margins — are delivered to the controller within a bounded, predictable window. The module’s internal firmware handles protocol translation transparently, requiring no application-layer configuration changes when inserted as a replacement unit in an existing CENTUM rack.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IP91*A’s internal architecture reflects YOKOGAWA’s design philosophy of separating communication arbitration from process execution. The module houses a dedicated communication processor that runs independently of the FCS CPU, meaning that bus management tasks — node polling, token rotation, error frame detection — do not consume cycles from the control execution engine. This separation is critical in high-density I/O configurations where the FCS scan period must remain stable regardless of network load fluctuations.

EMC and Signal Integrity: The module’s PCB layout employs multi-layer ground plane segmentation to suppress common-mode noise coupling between the backplane power rails and the communication signal traces. Differential signal pairs on the ESB interface are impedance-matched to 120 Ω, consistent with RS-485 physical layer requirements, and each line is terminated with precision resistor networks to prevent standing-wave reflections at cable stubs. In environments with high-frequency switching equipment — variable-frequency drives, large contactors — this termination discipline maintains signal eye diagrams within YOKOGAWA’s specified mask at cable runs up to 500 m.

Redundancy Arbitration Logic: In dual-redundant FCS configurations, the IP91*A participates in the active/standby arbitration handshake via a dedicated watchdog signal line on the backplane connector. The module monitors heartbeat frames from the primary communication path at a 10 ms polling interval. If three consecutive heartbeat frames are absent, the module asserts a switchover request to the redundancy controller without waiting for a host-level timeout — reducing bumpless transfer latency to under 30 ms in most documented field installations.

Diagnostic Register Architecture: The module exposes a set of internal status registers accessible via the CENTUM engineering workstation’s hardware diagnostic tool. These registers log cumulative frame error counts, token rotation time histograms, and node dropout events with millisecond-resolution timestamps. This data is invaluable during commissioning and post-incident analysis, allowing engineers to distinguish between cable degradation, node firmware faults, and transient EMI events without physical inspection of the field wiring.

System Integration Benefits

• Deterministic Scan Cycle Preservation: By offloading bus arbitration to a dedicated processor, the IP91*A ensures that FCS control loop scan periods (typically 100 ms to 1 s) are not perturbed by communication overhead, maintaining process variable update rates within ±2 ms jitter under normal network load.
• Hot-Swap Replacement Capability: The module supports live insertion and extraction in CENTUM racks equipped with the appropriate backplane revision, allowing maintenance teams to replace a faulty unit without halting the control loop — a requirement in continuous-process industries where planned shutdowns carry significant production cost.
• Transparent Protocol Bridging: The IP91*A handles ESB-to-Vnet/IP protocol translation internally, enabling legacy CENTUM CS installations to communicate with newer VP-series supervisory infrastructure without gateway appliances or application-layer reconfiguration.
• Granular Fault Isolation: Node-level error counters exposed through the diagnostic registers allow maintenance engineers to isolate faults to a specific module slot or cable segment, reducing mean time to repair (MTTR) compared to system-level alarm-only architectures.
• Reduced Cabling Complexity: The module’s support for multi-drop bus topology allows up to 16 nodes per segment, reducing the total cable count in large FCS racks and lowering the probability of connector-related intermittent faults.
• Firmware Compatibility Across CENTUM Generations: YOKOGAWA maintains backward-compatible firmware versioning for the IP91*A across CENTUM CS, CS 3000, and VP platforms, eliminating the need for parallel spare inventories when managing mixed-generation DCS installations.
• Alarm Propagation Latency Reduction: Because the module delivers process variable updates to the supervisory bus within a bounded time window, alarm state changes reach the operator HMI within one scan cycle of the triggering event — a measurable improvement over polled Ethernet architectures where latency varies with network congestion.
• Integration with YOKOGAWA FAST/TOOLS and Exaquantum: The module’s Vnet/IP interface is natively compatible with YOKOGAWA’s plant information management systems, allowing historians and reporting tools to subscribe to real-time data streams without additional OPC server middleware.

Quality Assurance & Global Logistics

Every IP91*A AS S9881BM-0 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Visual authentication covers label integrity, PCB revision markings, and connector pin condition. Functional verification confirms communication handshake response and backplane power draw within the manufacturer’s specified envelope. Units that do not pass inspection are quarantined and not offered for sale.

YOKOGAWA manufactures the IP91*A under an ISO 9001-certified quality management system at its Japanese production facilities. We do not modify, relabel, or alter any OEM components. Each shipment is accompanied by a packing list, commercial invoice, and certificate of origin. Certificates of conformity and inspection reports are available upon request for project documentation purposes.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Sea freight consolidation is available for bulk project orders. All export documentation complies with applicable customs and trade control regulations. In-stock orders are processed and handed to the carrier within 1–2 business days of payment confirmation.

A 12-month warranty covers all units from the date of shipment. Dead-on-arrival units are replaced or refunded within 7 days of confirmed receipt. For project-scale procurement — typically 5 units or more — volume pricing and dedicated lead-time agreements are available on request.
