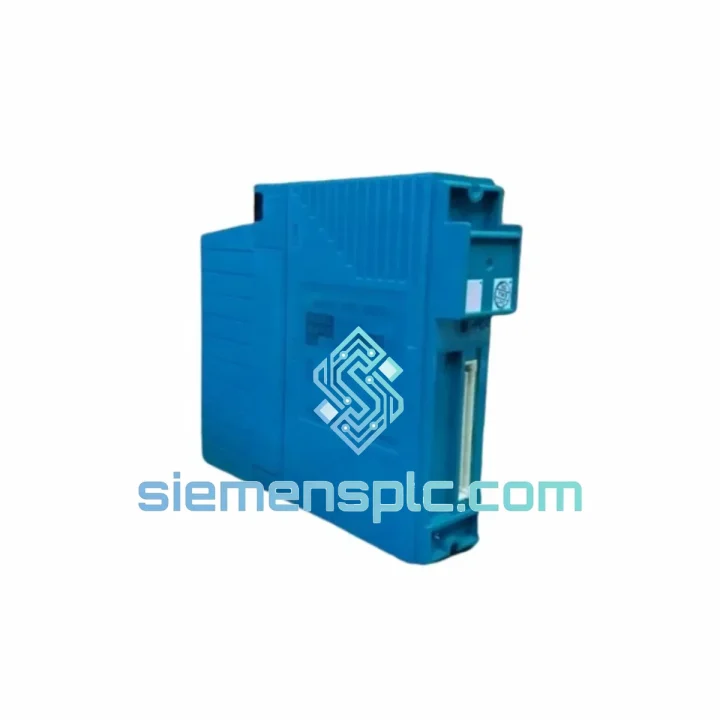

YOKOGAWA NFAI135-S01 Analog Input Module

YOKOGAWA NFAI135-S01 — Stop the Bleed: Get Your CENTUM VP Back Online Before the Next Shift

Your CENTUM VP FCS just lost an analog input card. Sixteen process variables have gone dark. Operators are running blind on flow, temperature, and pressure loops that feed your safety interlocks. Every minute this module stays offline, your facility is hemorrhaging money — and your maintenance window is closing fast. The NFAI135-S01 is on our shelf in Xiamen right now. We ship same day. That’s the only thing that matters at 2 AM during an unplanned shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on CENTUM VP systems have taught me that most NFAI135-S01 failures fall into three buckets. Know which one you’re dealing with before you pull the card.

Fault Code ALF301 / ALF302 — I/O Module Communication Error: This is the most common alarm you’ll see when this card starts dying. The FCS loses ESB bus communication with the node. Before condemning the module, check the node unit’s bus coupler LED — if it’s solid green and only this slot is alarming, the card itself is the culprit. If the entire node is dark, you have a bus coupler or FCU issue upstream. Don’t swap the AI card and waste two hours.

Partial Channel Failure (channels reading 3.6 mA or pegged at 20.5 mA): This is almost always internal A/D converter degradation, often accelerated by sustained overvoltage on a field loop. Check your field junction box for shorted transmitters before installing the replacement — a bad transmitter will kill the new card within weeks. Isolate each channel at the marshalling panel before powering up the new module.

Replacement Procedure — Step by Step:

• Confirm the FCS is in redundant mode and the standby FCU has taken control. Never hot-swap on a simplex FCS without process hold.
• In CENTUM VP Engineering Environment (ENG), navigate to the FCS hardware view and set the target node to maintenance mode. This suppresses spurious alarms during the swap.
• The NFAI135-S01 supports online replacement (hot-swap) in redundant node configurations. Loosen the module locking lever, slide out the failed card, and seat the replacement firmly until the lever clicks.
• The module performs automatic self-addressing via the ESB bus — no DIP switch or rotary address setting is required on this model. The FCS assigns the slot address automatically based on physical position.
• Monitor the module status LED: solid green within 30 seconds confirms successful initialization and bus enumeration. Flashing red indicates a firmware mismatch — verify your replacement unit’s firmware revision matches the FCS software version running on your FCU (check via ENG > FCS Properties > I/O Module Firmware).
• Release the node from maintenance mode and verify all 16 channels return to normal scan in the process graphic. Cross-check against your loop check sheets before handing back to operations.

Firmware Matching Note: CENTUM VP R5.x and R6.x FCUs may require specific NFAI135 firmware builds. If you’re running an older R4.x system, confirm compatibility before ordering — contact us and we’ll cross-reference your FCU revision against available stock.

Reliability in Harsh Conditions

The NFAI135-S01 wasn’t designed for a climate-controlled server room. YOKOGAWA built this card for the realities of a petrochemical plant in Southeast Asia or a power station in the Middle East — 45°C ambient, 95% humidity, and vibration from rotating machinery running 24/7 three meters away.

The galvanic isolation architecture is the key to its longevity in these environments. Every channel is isolated from the backplane bus and from adjacent channels, which means a ground fault on one field loop — a corroded junction box, a flooded cable tray — cannot propagate into the DCS backplane. In facilities where we’ve seen competing modules fail within 18 months due to ground loop damage, properly maintained NFAI135-S01 units routinely run for 8–12 years between replacements.

The conformal coating on the PCB provides additional protection against condensation and airborne contaminants — sulfur compounds in refineries, chlorine in water treatment, particulate in cement plants. The module’s operating temperature ceiling of 55°C gives you real headroom in poorly ventilated marshalling cabinets where ambient temperatures routinely exceed nominal ratings during summer months.

Vibration tolerance is validated to IEC 60068-2-6 standards. The card’s mechanical locking mechanism prevents connector fretting — a common failure mode in high-vibration environments where modules gradually work loose from their backplane connectors over months of operation.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. The NFAI135-S01 is physically on our shelf, inspected, and ready to pack the moment your order is confirmed.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• South America & Africa: 5–8 business days depending on destination customs clearance

Every shipment includes a full commercial invoice, packing list, and Certificate of Origin — the documents your customs broker needs to clear the shipment without delays. ESD-safe anti-static packaging and double-wall cartons are standard. We’ve shipped hundreds of DCS modules internationally without a single transit damage claim.

For genuine emergencies — plant down, production stopped — contact us directly on WhatsApp. We can arrange same-day dispatch for orders confirmed before 15:00 CST.

Contact Information

Ready to order or need a compatibility check before committing?

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
