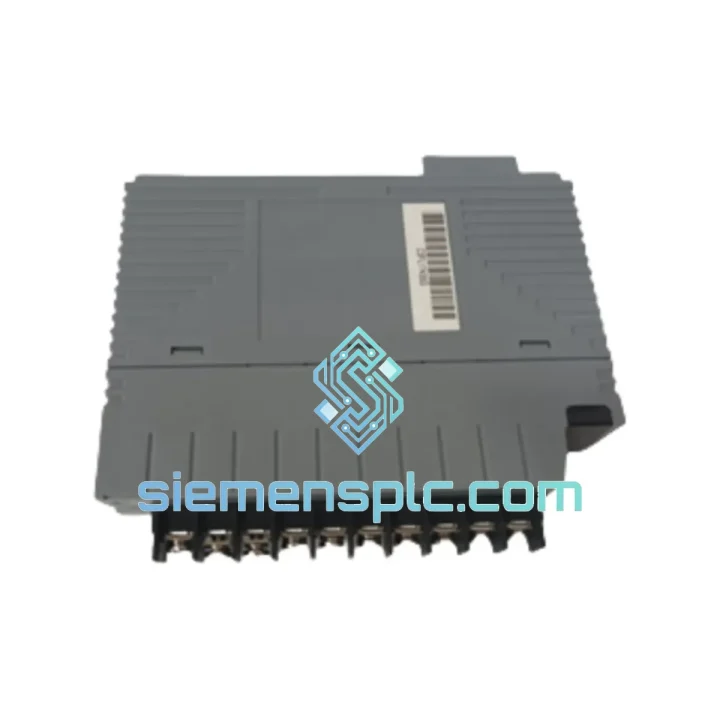

YOKOGAWA NFLC121-S00 Fieldbus Communication Module

YOKOGAWA NFLC121-S00 Down? Every Minute of Downtime Costs You Money — We Ship Today

A failed Fieldbus communication module doesn’t just trip an alarm — it takes your entire H1 segment offline. Instruments go blind, control loops drop to manual, and your operations team is staring at a frozen HIS screen. The YOKOGAWA NFLC121-S00 is the single point of failure between your CENTUM VP field control station and up to 16 Foundation Fieldbus H1 devices. When it fails, you feel it immediately across every loop on that segment.

We stock the NFLC121-S00 in Xiamen and ship same-day via DHL Express or FedEx International Priority. Whether you’re in Singapore, Rotterdam, Houston, or Jubail — your replacement module can be on-site within 24–72 hours. Stop burning engineering hours on workarounds. Get the part, swap it, and get your segment back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The NFLC121-S00 fails in predictable ways. Here’s what I’ve seen in the field and how to handle each scenario before you even pull the card:

Symptom 1 — All H1 devices on the segment show “Communication Error” simultaneously. This is almost never the field instruments. It’s the NFLC121-S00 itself or the segment wiring. First, check the module’s STATUS LED on the front panel. A solid red or alternating red/green blink pattern indicates the module has lost bus arbitration or its internal power conditioner has failed. Swap the module first — don’t waste time re-terminating the segment until you’ve ruled out the card.

Symptom 2 — Segment comes up partially; some devices communicate, others don’t. This points to the integrated power conditioner degrading. The NFLC121-S00 supplies bus power to field devices. When the conditioner weakens, devices at the far end of the segment (highest cable impedance) drop off first. Measure bus voltage at the module terminal: nominal is 24–32 VDC. Below 20 VDC under load means the conditioner is failing. Replace the module.

Symptom 3 — Module replaced but segment won’t initialize; HIS shows “Link Master Not Found”. The NFLC121-S00 acts as the Link Active Scheduler (LAS) for the segment. After hot-swap, the CENTUM VP FCS requires a segment re-scan. In the CENTUM VP Engineering Environment, navigate to the relevant FCS → Fieldbus segment → right-click → “Reconnect Fieldbus.” If the segment still won’t come up, verify the firmware revision on the replacement card matches the FCS firmware generation. Mismatched firmware revisions (e.g., R3.xx card in an R5.xx FCS) will cause silent initialization failure.

Replacement Procedure (Hot-Swap):

• Confirm the FCS is in redundant mode or that the affected segment is not controlling safety-critical loops before proceeding.
• In CENTUM VP HIS, place all function blocks on the affected segment into Manual or Cascade-Manual mode.
• Loosen the module locking lever — do not yank. Slide the NFLC121-S00 straight out along the card guide rails.
• Insert the replacement module firmly until the backplane connector seats fully. The locking lever should click into position.
• Wait 30–60 seconds for the module to complete self-diagnostics and bus initialization.
• Verify STATUS LED returns to solid green. Confirm all field devices re-appear in the HIS faceplate.
• Return function blocks to Auto mode. Log the swap in your maintenance record with the replacement card’s serial number and firmware revision.

Configuration Note — No DIP switches on this module. The NFLC121-S00 is fully software-configured via the CENTUM VP Engineering Environment. Slot address assignment is automatic based on physical slot position in the FCS nest. No manual addressing required. However, if you’re moving the module to a different slot position, you must update the hardware configuration in the engineering database and download to the FCS before the segment will initialize correctly.

Reliability in Harsh Conditions

Industrial control rooms are not server rooms. The NFLC121-S00 is built to operate in environments that would kill consumer-grade electronics within weeks. YOKOGAWA designs this module for continuous 24/7 operation in oil & gas, chemical, and refinery environments where ambient temperatures swing, humidity is uncontrolled, and vibration from rotating machinery is constant background noise.

The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres — critical in coastal refineries and offshore platforms where salt-laden air accelerates oxidation on unprotected boards. The backplane connector uses gold-plated contacts rated for thousands of insertion cycles, meaning repeated hot-swap maintenance operations won’t degrade contact resistance over time.

Vibration tolerance is validated to IEC 60068-2-6 standards. In practice, this means the module remains stable when installed in cabinets mounted on skid-mounted compressor packages or near large pump motors — environments where vibration-induced connector fretting is a known failure mode on lesser hardware. The NFLC121-S00’s card-locking mechanism provides mechanical retention that prevents micro-movement at the backplane interface even under sustained vibration.

Thermal management is passive — no fans, no moving parts. The module dissipates heat through the card frame and backplane structure. In high-ambient installations (up to 55°C), ensure the FCS cabinet ventilation is unobstructed and that adjacent card slots are not blocked by cable bundles. A thermally stressed NFLC121-S00 will throttle communication throughput before it fails hard, giving you a warning window if you’re monitoring bus cycle times in the CENTUM VP diagnostic screens.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Orders confirmed before 15:00 CST ship same day. Here’s what the logistics chain looks like from our shelf to your site:

• Day 0 (Order Confirmed): Module pulled from stock, inspected, packed in anti-static ESD bag with foam-lined outer carton. Commercial invoice, packing list, and certificate of origin generated. Shipment booked with DHL Express or FedEx International Priority based on destination.
• Day 1 (Departed Xiamen): Shipment cleared Xiamen customs and in transit to destination hub. Tracking number active and shared with buyer.
• Day 2–3 (Arrived Region): Typical delivery to Southeast Asia, Middle East, and Europe within 2–3 business days. North America and South America within 3–5 business days depending on customs clearance speed.
• Customs Documentation: We provide HS code classification, ECCN determination, and origin documentation as standard. For buyers in countries requiring import licenses for industrial automation equipment, we advise on documentation requirements upfront — no surprises at customs.
• Emergency Freight: For genuine production-down situations, contact us via WhatsApp for same-day charter freight coordination. We have handled emergency shipments to offshore platforms and remote industrial sites where standard courier networks don’t reach.

Every shipment is fully insured. If a package is damaged in transit, we replace the unit immediately and handle the insurance claim on our end — you don’t chase couriers while your plant is down.
