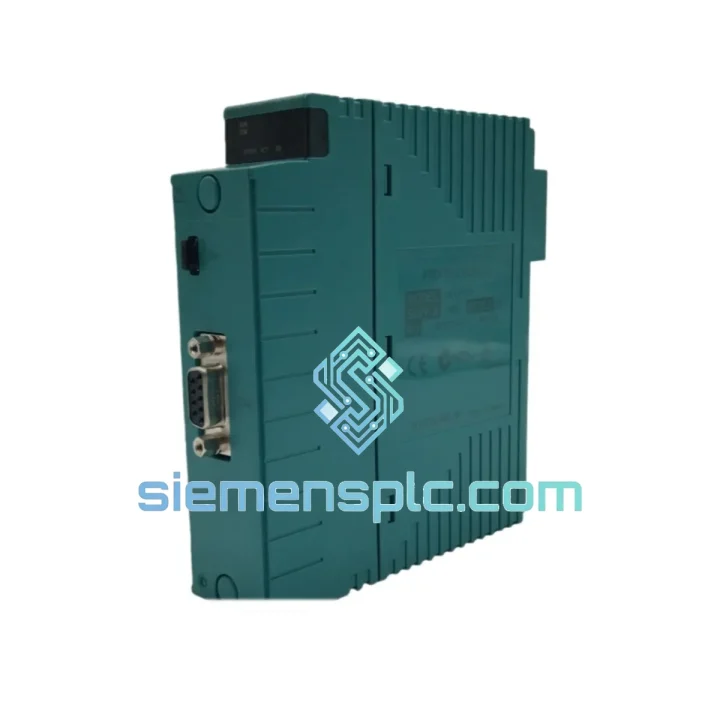

Yokogawa NFLP121-S00 Fieldbus Communication Module – STARDOM FCN FCJ

Yokogawa NFLP121-S00 — FOUNDATION Fieldbus H1 Interface Module for STARDOM FCN/FCJ Autonomous Controllers

The Yokogawa NFLP121-S00 is a dedicated FOUNDATION Fieldbus H1 communication module engineered for direct integration into the STARDOM FCN (Field Control Node) and FCJ autonomous controller platforms. Operating at the IEC 61158-compliant H1 physical layer (31.25 kbit/s), this module provides a deterministic, all-digital communication backbone between the STARDOM controller and up to 16 FF-certified field instruments per segment — eliminating the signal degradation, ground loop susceptibility, and wiring overhead inherent in conventional 4–20 mA analog I/O architectures.

Unlike gateway-based fieldbus adapters, the NFLP121-S00 is a native STARDOM I/O chassis module. It draws power directly from the FCN/FCJ backplane, requires no external power supply unit, and communicates with the controller CPU via the internal high-speed backplane bus — ensuring sub-millisecond data exchange latency between the H1 segment and the controller’s function block execution engine. This architecture is particularly significant in closed-loop control applications where scan-cycle determinism directly affects process stability.

In process industries — oil and gas, chemical, power generation, pharmaceutical, and water treatment — the NFLP121-S00 serves as the physical and logical gateway between the STARDOM control layer and the field instrument layer. Its support for the FF Link Active Scheduler (LAS) protocol guarantees cyclic, time-stamped data delivery, enabling the controller to execute PID and advanced control function blocks with consistent, predictable input data. Acyclic services (parameter reads/writes, alarm acknowledgments, device diagnostics) are handled in background communication windows without disrupting cyclic control traffic.

The module’s hardware design incorporates optical isolation on the H1 segment interface, providing galvanic separation between the fieldbus segment wiring and the controller backplane. This isolation barrier — rated to withstand transient voltages common in industrial field wiring environments — protects the FCN/FCJ controller from surge events, ground potential differences, and EMI-induced noise that would otherwise propagate from the field cable into the control system electronics. The isolation architecture conforms to IEC 61000-4 series EMC immunity requirements.

For procurement engineers evaluating replacement or capacity-expansion modules, the NFLP121-S00 is a direct OEM-equivalent part with full firmware compatibility across FCN-100 and FCN-500 chassis variants running FCN firmware R10.04 and later. No firmware flashing of the module itself is required upon installation — firmware resides on the FCN controller CPU, and the replacement module is recognized and configured automatically upon chassis power-up.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NFLP121-S00 implements a two-layer hardware architecture that separates the H1 fieldbus physical interface from the FCN backplane logic interface. At the fieldbus side, a dedicated H1 transceiver IC handles Manchester-encoded signal modulation and demodulation at 31.25 kbit/s, with integrated current-mode drive circuitry that maintains signal amplitude within the ±9 mA specification defined by IEC 61158-2 — regardless of segment cable impedance variation across the operating temperature range.

The optical isolation barrier between the H1 transceiver and the module’s internal logic board provides a minimum 500 V DC isolation rating. This is not a passive component choice — it is a deliberate EMC architecture decision. In field environments where cable shields may carry induced voltages from adjacent power cables or variable-frequency drives, the isolation barrier prevents common-mode noise from coupling into the backplane data bus. The result is a measurable reduction in bit error rate on the H1 segment under high-EMI conditions, which directly translates to fewer communication retries and more consistent LAS scheduling.

On the backplane side, the module interfaces with the FCN internal bus via a dedicated ASIC that handles data buffering, DMA transfers to the controller CPU memory space, and interrupt generation for acyclic service completions. This ASIC-based backplane interface eliminates CPU polling overhead — the controller is notified only when new cyclic data is ready or an acyclic transaction completes, freeing CPU cycles for function block execution. In high-density FCN configurations with multiple NFLP121-S00 modules installed, this interrupt-driven architecture prevents backplane bus contention from degrading overall controller scan time.

The module’s LAS (Link Active Scheduler) implementation supports both basic and enhanced LAS modes. In enhanced mode, the LAS maintains a precise schedule table that allocates compel data (CD) tokens to each field device at fixed intervals, with acyclic windows sized dynamically based on remaining segment bandwidth. This scheduling granularity — down to the individual token-pass level — is what enables the NFLP121-S00 to support 16 devices on a single segment while maintaining deterministic cyclic update rates for all devices simultaneously.

System Integration Benefits

• Zero-latency backplane communication: Native FCN/FCJ module design eliminates protocol translation overhead; H1 data is available in the controller’s function block execution context within the same scan cycle it is received.
• Deterministic cyclic scheduling: LAS-managed token-passing guarantees fixed-interval data updates for all 16 segment devices, providing the input consistency required for stable PID and cascade control loops.
• Galvanic isolation for EMC compliance: Optical isolation on the H1 interface meets IEC 61000-4-5 surge immunity requirements, protecting the controller from field-side transient events without external surge protection devices.
• Native NAMUR NE 107 diagnostics: FF device health status (Failure, Out of Specification, Maintenance Required, Function Check) is surfaced directly in the STARDOM engineering environment, enabling condition-based maintenance without additional diagnostic middleware.
• Multi-vendor FF interoperability: Certified interoperable with FF-registered devices from Emerson, Endress+Hauser, ABB, Yokogawa, and all major instrument manufacturers — no vendor lock-in at the field device layer.
• Distributed function block execution: Supports FF function blocks (AI, AO, PID) executing in field devices, enabling true distributed control architectures that reduce controller CPU load and maintain control loop operation during controller communication interruptions.
• Plug-and-play replacement: No module-level firmware flashing required; replacement units are auto-configured by the FCN controller upon chassis power-up, minimizing mean time to repair (MTTR) during unplanned maintenance events.
• Wiring cost reduction: Single twisted-pair cable per H1 segment supports up to 16 field devices, reducing field wiring material and installation labor costs by 40–60% versus conventional analog I/O for equivalent device counts.
• Acyclic service support: Background acyclic communication windows enable online parameter configuration, calibration, and device description (DD) downloads to field instruments without interrupting cyclic control traffic.
• Scalable segment architecture: Multiple NFLP121-S00 modules can be installed in a single FCN chassis (subject to slot availability), allowing incremental expansion of fieldbus capacity without controller replacement.

Quality Assurance & Global Logistics

Every NFLP121-S00 unit supplied by siemensplc.com is sourced as genuine Yokogawa OEM hardware. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of the PCB, connector, and label integrity; part number and serial number cross-verification against Yokogawa’s original manufacturing records; and a functional power-on test confirming backplane communication initialization. Modules are packed in ESD-safe anti-static bags with desiccant, sealed in original or equivalent protective packaging, and labeled with inspection records.

A certificate of conformance and inspection test report are available upon request for each shipment. The Yokogawa original datasheet (GS 34P02Q10-01E) and technical instruction manual (TI 34P02Q10-01E) are provided with every order to support installation and commissioning teams.

Logistics operations are managed from Xiamen, China — a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. For time-critical procurement, same-day dispatch is available for in-stock units confirmed before 14:00 CST. Sea freight consolidation is available for bulk orders. All shipments are fully insured and tracked end-to-end. Typical transit times: 3–5 business days to Europe and North America via express courier; 7–14 days via economy air freight.

A 12-month warranty covers all units against manufacturing defects from the date of shipment. Warranty claims are processed with replacement dispatch within 3 business days of defect confirmation, minimizing plant downtime exposure for procurement teams operating under tight maintenance windows.
