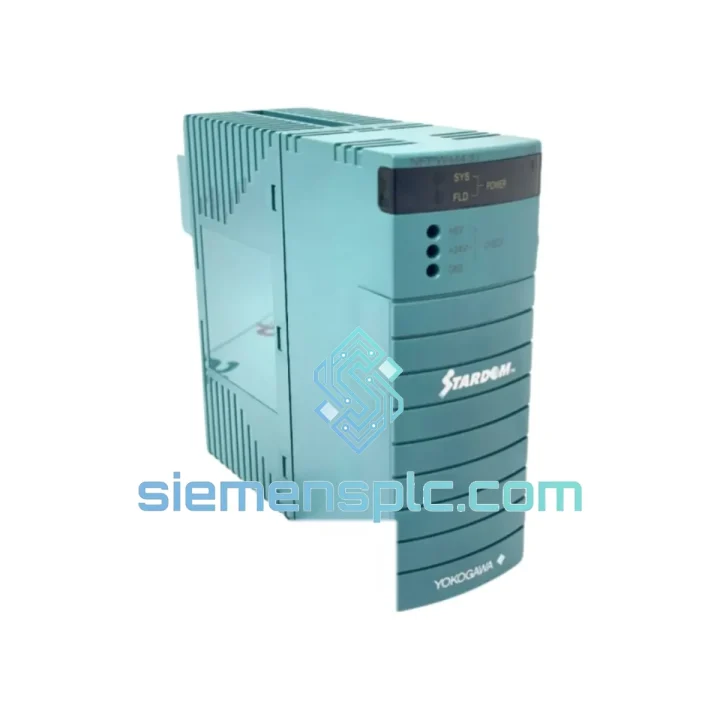

YOKOGAWA NFPW441-10 Power Supply Module – NF Series

YOKOGAWA NFPW441-10: Regulated DC Power Distribution for CENTUM VP Field Control Stations

The YOKOGAWA NFPW441-10 is a rack-mounted, regulated DC power supply module engineered specifically for the NF-series node architecture within the YOKOGAWA CENTUM VP and CENTUM CS 3000 Distributed Control System platforms. Its primary function is to convert site AC mains into a stable, low-ripple 24 V DC bus that feeds field control station (FCS) backplane rails and downstream I/O sub-modules. In continuous-process industries — refining, petrochemicals, power generation, pharmaceuticals — the power supply module is the single point of energy delivery for every I/O scan cycle, every fieldbus transaction, and every safety interlock evaluation. A voltage deviation of even ±5% on the 24 V DC rail can trigger watchdog resets across an entire FCS node, causing unplanned process shutdowns. The NFPW441-10 addresses this risk through a tightly regulated linear-assisted switching topology that maintains output voltage within ±1% across the full load range from 0 A to 10 A.

The module accepts a wide-range AC input of 100–240 V AC at 50/60 Hz, making it deployable across North American, European, and Asian grid standards without hardware modification. Its 240 W continuous output rating is sized to power a fully populated CENTUM VP node unit carrying up to 16 I/O modules simultaneously. The internal power factor correction (PFC) stage maintains a power factor above 0.95 at full load, reducing reactive current demand on site distribution panels — a measurable benefit in large DCS installations with dozens of FCS nodes.

Redundancy is a first-class design requirement. Two NFPW441-10 units can be installed in parallel within the same node unit using YOKOGAWA’s N+1 hot-standby architecture. An internal ORing diode circuit ensures that if one module fails or is removed for maintenance, the second module assumes the full load within one AC half-cycle (<10 ms), with zero interruption to the FCS scan cycle. This behavior is deterministic and requires no software configuration — it is implemented entirely in hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NFPW441-10 employs a two-stage power conversion architecture. The first stage is an active power factor correction (PFC) boost converter operating at approximately 100 kHz, which rectifies the AC input and elevates the intermediate DC bus to a regulated 400 V DC. This high intermediate voltage reduces the RMS current in the primary winding of the isolation transformer, lowering I²R losses and improving thermal performance at elevated ambient temperatures. The second stage is a phase-shifted full-bridge (PSFB) DC-DC converter that steps the 400 V DC bus down to the 24 V DC output rail. The PSFB topology achieves zero-voltage switching (ZVS) on the primary-side MOSFETs, which eliminates switching losses at turn-on and reduces electromagnetic emissions — a critical requirement for DCS environments where high-frequency noise can corrupt HART or FOUNDATION Fieldbus signals on adjacent I/O wiring.

The output filter uses a combination of low-ESR electrolytic capacitors and a common-mode choke to suppress both differential-mode and common-mode noise below the 100 mV peak-to-peak specification. The ORing diode used in the redundancy circuit is a Schottky type with a forward voltage drop of approximately 0.4 V at 10 A, which limits the power dissipation in the diode to under 4 W — well within the module’s thermal budget. The diode is mounted on a dedicated aluminum heat spreader bonded to the module’s rear panel, which conducts heat directly to the node unit chassis without requiring forced-air cooling in standard ambient conditions up to 40°C.

The overvoltage protection (OVP) circuit monitors the output rail via a precision voltage divider and triggers a latching crowbar SCR if the output exceeds 28 V DC (approximately 117% of nominal). This hard crowbar response protects downstream I/O module ASICs and fieldbus transceivers from voltage excursions that would otherwise cause permanent semiconductor damage. The overcurrent protection (OCP) uses a current-sense resistor in the output return path; when load current exceeds 110% of rated (11 A), the controller folds back the output voltage linearly to limit power dissipation, preventing thermal runaway during sustained short-circuit conditions.

System Integration Benefits

• Deterministic FCS scan continuity: The ≥ 20 ms hold-up time exceeds the worst-case AC mains interruption tolerance defined in IEC 61000-4-11, ensuring the FCS completes its current scan cycle and executes a controlled state save before any power-loss event propagates to the backplane.
• Zero-configuration redundancy: The hardware ORing architecture requires no PLC ladder logic, no DCS function block, and no operator intervention to activate standby power — failover is autonomous and completes within one AC half-cycle.
• Low output impedance for transient loads: The PSFB topology combined with the low-ESR output capacitor bank maintains output voltage deviation below ±3% during step-load transients of 0–10 A in under 500 µs, preventing false under-voltage trips on sensitive I/O modules.
• EMC-hardened design for field cabinet environments: Compliance with IEC 61000-4-4 (EFT, 2 kV) and IEC 61000-4-5 (surge, 1 kV/2 kV) means the module withstands the electrical fast transients generated by contactor switching and motor drive PWM noise common in process plant MCC rooms.
• Thermal margin for tropical and desert deployments: Rated to +55°C continuous operation, the NFPW441-10 operates without derating in ambient conditions typical of Middle Eastern petrochemical plants and Southeast Asian refineries where cabinet temperatures routinely reach 45–50°C.
• Diagnostic transparency via status LED: The front-panel LED array provides immediate visual indication of AC input presence, DC output health, and fault state, enabling field technicians to isolate power faults without connecting a laptop or navigating DCS HMI screens.
• Backward compatibility across CENTUM generations: The NFPW441-10 is electrically and mechanically compatible with CENTUM CS 3000 R3.x through CENTUM VP R6.x node units, protecting capital investment in existing DCS infrastructure during phased system upgrades.
• Reduced spare-parts inventory complexity: A single NFPW441-10 spare covers power supply requirements across multiple FCS node types within the CENTUM VP architecture, simplifying MRO stocking strategies for plant maintenance teams.
• Galvanic isolation between AC input and DC output: The isolation transformer provides ≥ 3 kV AC dielectric withstand between primary and secondary, preventing ground loop currents from propagating from site AC distribution into the DCS 24 V DC instrument bus — a common source of analog signal drift in large installations.
• Soft-start inrush current limiting: An NTC thermistor in series with the AC input limits inrush current to under 30 A peak during cold-start, preventing nuisance tripping of upstream MCBs sized for steady-state load.
