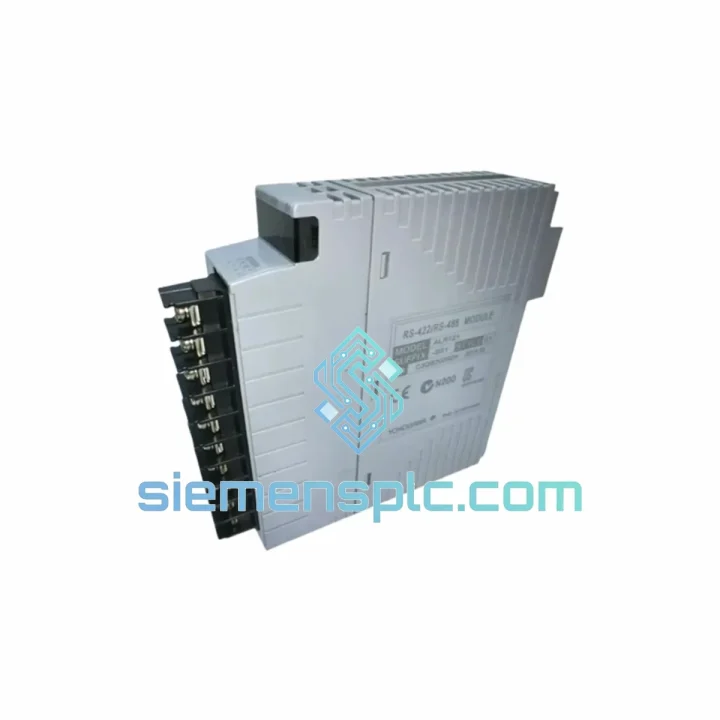

YOKOGAWA PALR12151 DCS Communication Module

YOKOGAWA PALR12151 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute a CENTUM VP node sits offline, your process is bleeding money. Whether it’s a refinery loop that’s gone dark, a batch reactor stuck in safe-state, or a compressor train that won’t restart — the PALR12151 serial communication module is the single card standing between you and full production recovery. We stock it. We ship it. Same-day dispatch on confirmed orders before 15:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PALR12151 fails in predictable ways. After handling hundreds of CENTUM VP field calls, here is what you actually need to know before you pull the card:

Top Failure Signatures:

• ALM LED solid red, no SCI communication: Nine times out of ten this is a firmware mismatch after an FCS upgrade. The PALR12151 carries its own embedded firmware. If the FCS was updated to R6.x or later and the SCI module was not reflashed, the handshake fails silently. Pull the module, check the firmware label on the PCB edge, and cross-reference against your FCS revision table in the CENTUM VP Engineering Manual (IM 33S01B30-01E).
• Intermittent COM loss on RS-485 bus: Almost always a termination resistor issue on the field side — but the module gets blamed. Before condemning the PALR12151, verify 120 Ω termination at both ends of the RS-485 trunk. If termination is correct and the module still drops frames, check the optical isolator on the SCI board — it degrades in high-humidity environments over 5–7 years.
• Module recognized by FCS but field device not responding: Check the baud rate and parity settings in the SCI function block (SEBOL or SFC). A common trap: the previous engineer set the block to 9600/Even/1 but the field analyzer runs 19200/None/1. The PALR12151 will not throw an alarm — it just silently drops the frames.
• Hot-swap replacement — slot address auto-detection: CENTUM VP supports hot-swap on the I/O nest. When you seat the new PALR12151, the FCS will auto-detect the slot address within 30–60 seconds. Do NOT manually reassign the slot in the engineering tool while the FCS is online — this forces a partial download and can trip the watchdog on adjacent I/O cards.
• DIP switch configuration: The PALR12151 has a 4-position DIP switch on the front face (SW1). Positions 1–2 set the protocol mode (RS-232C / RS-422 / RS-485). Position 3 enables the termination resistor (ON = 120 Ω internal termination active). Position 4 is reserved — leave OFF. Photograph the switch positions on the failed card before removal. Replicate exactly on the replacement unit.
• Post-replacement verification: After seating the new card, open the FCS diagnostic screen and confirm the SCI block status transitions from INIT to RUN within 90 seconds. If it stays in INIT, the firmware version is incompatible — contact YOKOGAWA support for the correct flash file for your FCS revision.

Reliability in Harsh Conditions

The PALR12151 was engineered for continuous operation in environments that would kill consumer-grade electronics. YOKOGAWA’s CENTUM VP hardware line is validated against IEC 61131-2 environmental requirements, and the PALR12151 specifically carries the following field-proven characteristics:

• Vibration resistance: Qualified to 10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 9.8 m/s² — covering the vibration spectrum of compressor halls, pump skids, and rotating machinery platforms.
• Thermal cycling tolerance: The PCB substrate and component selection account for repeated thermal cycling between cold startup (0°C) and sustained high-ambient operation (55°C). Solder joint fatigue is a known failure mode on cheaper alternatives — YOKOGAWA’s wave-soldering process and conformal coating mitigate this.
• Humidity and condensation: The optical isolation barrier on the RS-485 interface provides galvanic separation that protects the backplane from ground loops induced by moisture ingress on long cable runs in coastal or tropical plants.
• EMI immunity: Meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) — critical in substations and motor control centers where switching transients are constant.
• Conformal coating: Standard on CENTUM VP I/O modules, protecting against airborne contaminants including H₂S, SO₂, and chlorine — common in refinery and chemical plant atmospheres.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions (20–25°C, 40–60% RH) with anti-static packaging. Long-term storage units are inspected and powered-on tested before dispatch.

Global Express Logistics

When your plant is down, lead time is not a negotiation — it is a crisis metric. Our Xiamen dispatch operation is built around one objective: get the part on a plane the same day you confirm the order.

• Order cutoff: 15:00 CST for same-day dispatch. Orders confirmed after cutoff ship next business morning.
• Carriers: DHL Express (primary), FedEx International Priority (alternate). Carrier selection based on destination customs clearance speed — we know which carrier clears faster in your country.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 2–4 days | North America 3–5 days | South America / Africa 4–7 days.
• Documentation package: Commercial invoice, packing list, Certificate of Origin (Form A or CO on request), and a product test report. HS Code 8537.10 declared for customs. We handle export clearance from China — you handle import at your end.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link included.
• Emergency freight: For critical shutdowns requiring overnight delivery, contact us directly on WhatsApp for charter freight coordination. Additional cost applies.
