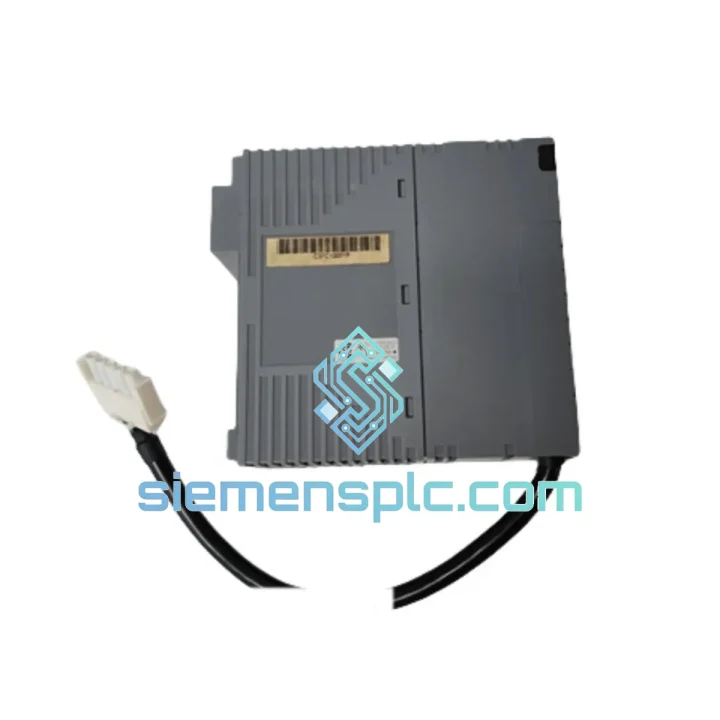

Yokogawa PW441-11 S2: Regulated DC Power Architecture for CENTUM VP Field Control Units

The PW441-11 S2 is a dedicated power supply module engineered for the Yokogawa CENTUM VP distributed control system, specifically targeting the Field Control Unit (FCU) chassis. Its function within the control loop is not peripheral — it is foundational. Every I/O module, every communication card, and every processor sub-assembly in the FCU draws its operating voltage from this module. Voltage ripple, transient response time, and hold-up duration under load are the three parameters that determine whether a DCS node survives a grid disturbance or trips offline. The PW441-11 S2 addresses all three through a regulated switching topology with active power factor correction, delivering a stable DC rail to the FCU backplane under input voltage fluctuations of ±15% from nominal AC supply.

The S2 revision designation marks a documented hardware iteration within Yokogawa’s product lifecycle management framework. Compared to the S1 variant, the S2 incorporates revised thermal interface materials on the primary switching transistors, a redesigned EMC filter stage at the AC input, and updated conformal coating on the PCB assembly to meet IEC 60068-2-78 damp heat requirements. These changes extend the module’s rated operating temperature ceiling and reduce conducted emissions in the 150 kHz–30 MHz band — a critical improvement for FCU installations co-located with variable frequency drives or high-current motor starters.

In the CENTUM VP architecture, the FCU operates as the real-time process controller executing function blocks at scan rates as low as 100 ms. Any power interruption exceeding the backplane hold-up time — typically specified in the 20–50 ms range for this module class — will force a controller restart and trigger a process upset. The PW441-11 S2’s hold-up capacitor bank is sized to bridge standard grid transients and momentary supply dips, maintaining regulated output through events that would otherwise cause a hard reset. This characteristic is particularly relevant in facilities where the local power distribution network is subject to switching transients from large inductive loads.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PW441-11 S2 employs a forward-converter switching topology operating at a fixed frequency in the 50–100 kHz range. This frequency selection represents a deliberate engineering trade-off: high enough to allow compact magnetics and filter capacitors, yet low enough to keep switching losses manageable at the rated power throughput. The primary-side MOSFET gate drive circuit incorporates a soft-start ramp to suppress inrush current during module insertion — a non-trivial requirement in a live FCU chassis where a hard inrush event could momentarily collapse the backplane rail and reset adjacent modules.

The EMC filter stage at the AC input consists of a common-mode choke wound on a high-permeability ferrite core, paired with X-class and Y-class capacitors. This two-stage filter attenuates both differential-mode and common-mode conducted interference, preventing the module’s own switching noise from propagating back onto the facility power bus. In the S2 revision, the common-mode choke inductance was increased and the Y-capacitor values were optimized to shift the filter’s corner frequency below 150 kHz — the lower boundary of the CISPR 11 measurement range — ensuring compliance margin rather than marginal pass.

Thermal management relies on a combination of a low-profile aluminum heatsink bonded to the primary switching transistors and a forced-convection airflow path defined by the FCU chassis enclosure. The S2 revision replaced the original thermal interface pad with a phase-change material that achieves lower junction-to-case thermal resistance at operating temperature, reducing the primary transistor junction temperature by an estimated 8–12°C under full load at 55°C ambient. This margin directly translates to extended component MTBF, as semiconductor failure rates follow an Arrhenius relationship with junction temperature.

The output voltage regulation loop uses a secondary-side error amplifier with optocoupler feedback to the primary-side PWM controller. This isolated feedback architecture maintains output voltage regulation within ±1% across the full load range (10–100% of rated output) and across the full input voltage range. The optocoupler’s current transfer ratio (CTR) degradation over service life is compensated by the loop gain design, ensuring regulation accuracy is maintained through the module’s rated service interval without recalibration.

System Integration Benefits

• Deterministic Backplane Power Delivery: The regulated output rail eliminates voltage-induced timing jitter in FCU processor clock circuits, preserving the deterministic scan cycle execution that CENTUM VP’s real-time kernel depends upon.
• Redundant Configuration without Process Interruption: Two PW441-11 S2 modules installed in parallel share the load via internal current-sharing circuitry. If one module fails, the surviving unit assumes full load within one AC cycle — no FCU restart, no process upset.
• Hot-Swap Module Replacement: The backplane connector and inrush-limiting soft-start circuit permit module extraction and insertion under live FCU operation, enabling corrective maintenance during production without a planned shutdown window.
• Diagnostic Transparency via Status LED: The module’s front-panel LED array provides discrete indication of AC input presence, DC output health, and fault state, enabling field technicians to isolate power faults without test equipment.
• Broad AC Input Tolerance for Grid-Unstable Sites: The ±15% input voltage tolerance accommodates facilities in regions with poor grid regulation, reducing nuisance trips caused by supply voltage excursions that would otherwise exceed a narrower-tolerance PSU’s operating window.
• Reduced Harmonic Injection with Active PFC: The active power factor correction stage maintains input power factor above 0.95 across the load range, reducing harmonic current injection into the facility distribution network and avoiding penalties under IEEE 519 harmonic limits.
• Conformal Coating for Corrosive Environments: The S2 PCB conformal coating provides protection against airborne contaminants including hydrogen sulfide (H₂S) and chlorine compounds present in refinery and chemical plant control rooms, extending service life in environments that would degrade uncoated assemblies.
• Seamless CENTUM VP Ecosystem Compatibility: The module interfaces directly with the FCU chassis backplane without adapter hardware, maintaining Yokogawa’s system-level certification and avoiding the integration risk associated with third-party power supply substitutions.
• Reduced Spare Parts Inventory Complexity: A single PW441-11 S2 spare covers all CENTUM VP FCU chassis variants that accept the PW441 form factor, simplifying the spare parts matrix for multi-unit plant installations.
