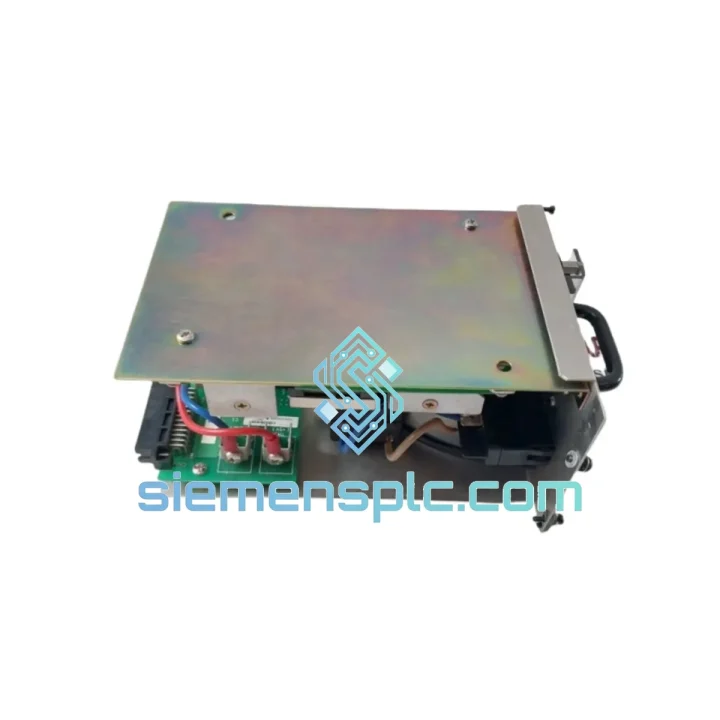

Yokogawa PW502 Power Supply Module

Yokogawa PW502 — Stop the Bleed: Every Minute of DCS Downtime Has a Price Tag

Your CENTUM CS 3000 field control station just lost power. The FCS is dark. Operators are blind. The process is drifting toward a safe-state shutdown — or worse, an uncontrolled trip. You’ve already isolated the rack and confirmed the PW502 is the culprit. Now the only question is: how fast can you get a replacement on-site?

At siemensplc.com, we stock the Yokogawa PW502 Power Supply Module and ship same-day from Xiamen via DHL Express and FedEx International Priority. We’ve handled emergency calls from refineries in the Middle East, chemical plants in Southeast Asia, and power stations across Europe — all with one common thread: the engineer needed the part yesterday. We get it. That’s why our entire fulfillment chain is built around your emergency, not a standard lead time.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the PW502:

• FCS STATUS LED goes red / amber with no I/O response — First suspect is the PW502 output rail collapsing under load. Measure DC output at the rack bus connector before pulling the card. A reading below nominal by more than 5% under load confirms the module, not the rack.
• Intermittent FCS resets during high-load periods — Capacitor aging in the PW502 output stage causes voltage droop under peak I/O scan cycles. This is the most common failure mode in modules over 8 years old. Replace proactively during the next planned shutdown window.
• Redundant power alarm (ALM-PSU) with one module showing fault — The CS 3000 will continue running on the healthy module, but do not delay replacement. A second failure means a full FCS outage. Swap the faulted PW502 while the system is live — the hot-swap design allows this without FCS restart.
• No-fault module, FCS still offline — Before condemning the PW502, check the 24VDC input feed to the rack. A blown fuse on the incoming power rail or a failed field power distributor (FPD) upstream will mimic a PW502 failure. Verify input voltage at the rack terminal block first.

Replacement procedure — field checklist:

1. Confirm redundant PW502 (if fitted) is healthy and carrying load before proceeding.
2. Notify DCS operator — FCS will remain online during hot-swap if redundancy is active.
3. Loosen the two captive screws on the PW502 front panel. Do not yank — slide out slowly to avoid disturbing adjacent I/O cards.
4. Insert replacement PW502 fully until the card-edge connector seats. Tighten captive screws finger-tight, then a quarter-turn with a flat-blade screwdriver.
5. Observe STATUS LED on the new module: solid green within 10–15 seconds confirms successful initialization. If the LED flashes amber, check that the module revision matches the rack’s firmware baseline (see note below).
6. Verify FCS STATUS in the CENTUM CS 3000 HIS (Human Interface Station) — confirm both power modules show healthy in the hardware status view.
7. Log the replacement in your CMMS with the serial number of the removed module and the replacement unit.

Firmware & revision matching note: The CENTUM CS 3000 platform spans multiple hardware generations (R2.xx through R6.xx). While the PW502 is generally backward-compatible across CS 3000 revisions, confirm the hardware suffix on the module label matches your rack’s generation if you are running an early R2 or R3 system. Contact our technical team with your FCS model number and we will cross-check before shipment.

No address switches or DIP settings are required on the PW502 — it is a passive power module with no node addressing. Unlike I/O cards or communication modules, there is no configuration to perform post-installation beyond visual LED confirmation.

Reliability in Harsh Conditions

The PW502 was not designed for a climate-controlled server room. It was built for the realities of process plant environments: ambient temperatures that swing 30°C between day and night shifts, vibration from nearby rotating equipment, humidity that condenses on cold surfaces during startup, and the occasional voltage spike from a poorly isolated field instrument.

Yokogawa’s power supply modules for the CS 3000 platform use industrial-grade electrolytic capacitors rated for extended temperature ranges, conformal-coated PCBs to resist moisture ingress, and over-voltage / over-current protection circuits that clamp transients before they reach the I/O bus. The module’s metal housing provides both mechanical rigidity and EMI shielding — critical in environments where VFDs, welding equipment, and high-current switchgear operate in proximity to the control room.

Units sourced through siemensplc.com undergo a pre-shipment inspection protocol: visual examination of the PCB for corrosion, cracked solder joints, or burned components; output voltage verification under a representative load; and a 30-minute burn-in cycle to screen for early-life failures. Refurbished units are recapped where capacitor age is a concern. Every module ships with an inspection record.

For plants operating in coastal or offshore environments where salt-laden air accelerates corrosion, we recommend requesting a conformal-coat inspection report. We can advise on additional protective measures if your installation environment is particularly aggressive.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• South Asia (India, Pakistan, Bangladesh): 3–5 business days via DHL Express
• Australia / New Zealand: 3–5 business days via DHL Express

All shipments include real-time tracking, commercial invoice, packing list, and a certificate of conformity where required for customs clearance. For plant shutdowns with hard deadlines, we can arrange Saturday delivery and customs pre-clearance documentation to eliminate border delays. Export classification and HS code documentation are prepared in-house — no delays waiting for a freight forwarder to sort paperwork.

For orders requiring air freight on a charter or consolidated basis for very large quantities, contact us directly. We have established relationships with freight forwarders specializing in industrial automation components and can move bulk orders on short notice.
