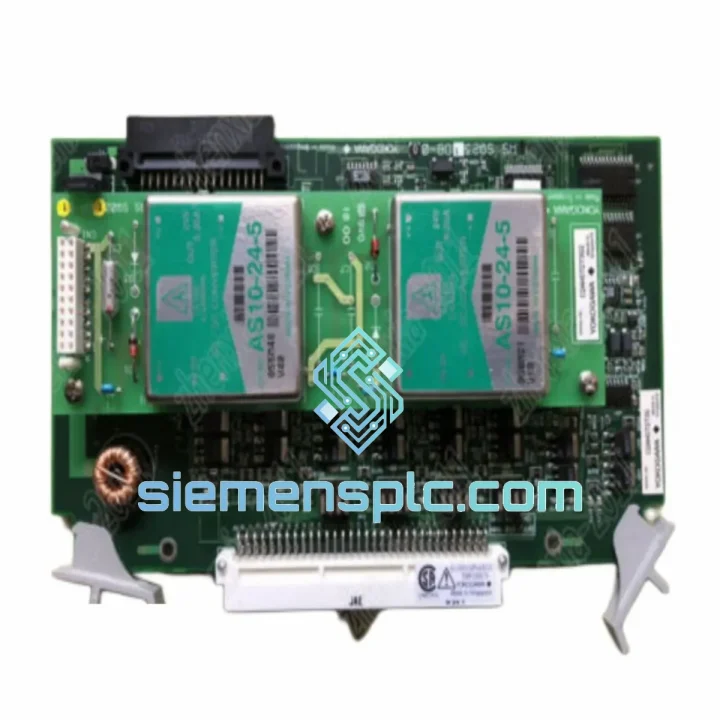

YOKOGAWA AMM42 S4 DCS Power Supply Module

YOKOGAWA AMM42 S4 DCS Power Supply Module — Stop the Clock on Your Downtime

Every minute a CENTUM CS3000 field control station sits dark, your plant is bleeding money. A failed AMM42 S4 power supply is one of the most time-critical failures in the S4 architecture — it takes down the entire FCS node, not just a single I/O channel. We stock the AMM42 S4 specifically because we know what a 6-hour unplanned outage costs a refinery or a chemical batch line. Our warehouse in Xiamen ships same-day on confirmed orders. DHL Express to most destinations in 24–72 hours. No waiting on OEM lead times. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AMM42 S4 fails in predictable ways once you’ve seen enough of them in the field. Here’s what to check before you pull the trigger on a replacement order — and what to watch for during swap-out.

Common Failure Signatures:

• FCS NODE FAIL alarm on HIS: The entire field control station drops offline. If redundant PSU is installed and the standby hasn’t taken over, suspect both the primary AMM42 S4 and the inter-module bus connector. Clean the backplane contacts before condemning the module.
• Intermittent FCS restarts (warm reboot loop): Marginal output voltage under load. Measure DC bus rail with a calibrated meter — anything below spec tolerance triggers the FCS watchdog. The AMM42 S4 capacitors degrade after 8–10 years in high-ambient environments.
• PWR LED off, no alarm: Check upstream AC breaker and the module’s internal fuse first. If fuse is intact and AC input is confirmed, the module’s primary switching stage has failed — replace the unit.
• Redundant PSU not switching over: The AMM42 S4 uses a diode-OR output architecture. A shorted output diode in the failed unit can back-feed and suppress the standby unit’s output. Always remove the failed module before expecting automatic switchover.

Replacement Procedure — Key Steps:

• Confirm the standby AMM42 S4 (if installed) has assumed load before removing the failed unit. Check the STANDBY LED on the backup module.
• The AMM42 S4 is hot-swappable in redundant configurations. In simplex (single PSU) installations, a controlled FCS shutdown is required — coordinate with the control room before pulling the module.
• No DIP switch or rotary address setting is required on the AMM42 S4 itself. The FCS node address is set on the processor module (e.g., ACM11), not the power supply. Confirm the replacement unit’s hardware revision matches your system’s firmware baseline — check the CENTUM CS3000 R3.xx compatibility matrix if you’re running older firmware.
• After insertion, allow 30–60 seconds for the DC bus to stabilize before the FCS attempts to reload its application. Monitor the HIS for NODE RECOVER confirmation.
• Log the replacement in your plant’s maintenance management system with the old unit’s serial number and date code for lifecycle tracking.

Reliability in Harsh Conditions

The AMM42 S4 was engineered for continuous duty in environments that would kill consumer-grade electronics inside a week. YOKOGAWA designed the S4 power supply family for installation in field junction rooms and marshalling cabinets where temperature swings, vibration from rotating machinery, and humidity ingress are daily realities — not edge cases.

The module’s switching power supply topology is inherently tolerant of wide AC input variation (100–240 V AC), which matters in regions where grid quality is inconsistent. The internal components are selected for extended MTBF under elevated ambient temperatures — the 0–55°C operating range is a continuous-duty rating, not a peak tolerance. Conformal coating on the PCB provides a baseline defense against condensation and airborne contaminants common in coastal petrochemical facilities.

Vibration resistance meets IEC 61131-2 requirements for industrial control equipment. In practice, units installed adjacent to large compressors or pump skids have demonstrated multi-year service lives without mechanical failure of solder joints or connector interfaces. The rack-mount form factor with positive-locking ejector levers prevents partial-seating failures — a common cause of intermittent faults in high-vibration installations.

Units sourced from our Xiamen stock are stored in climate-controlled conditions with humidity monitoring. Long-term storage in uncontrolled environments degrades electrolytic capacitors — we rotate stock and do not ship units that have been warehoused beyond recommended storage limits.

Global Express Logistics

Our dispatch operation runs out of Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to carrier. Export documentation (commercial invoice, packing list, HS code declaration) prepared in parallel.
• DHL Express Worldwide: Southeast Asia 24–36 hrs | Middle East 48–72 hrs | Europe 48–72 hrs | Americas 72–96 hrs. These are transit times from Xiamen — not from order placement.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Same-day handover applies.
• Customs clearance: We declare goods accurately with correct HS codes for industrial automation components. Mis-declaration is not a service we offer. Import duties and VAT are the buyer’s responsibility — we provide all documentation needed for your customs broker to clear the shipment efficiently.
• Tracking: AWB number sent via email within 2 hours of carrier pickup. Real-time tracking link provided.
• Emergency freight: For genuine plant-down situations, contact us directly on WhatsApp for options including charter courier and hand-carry arrangements to specific destinations.
