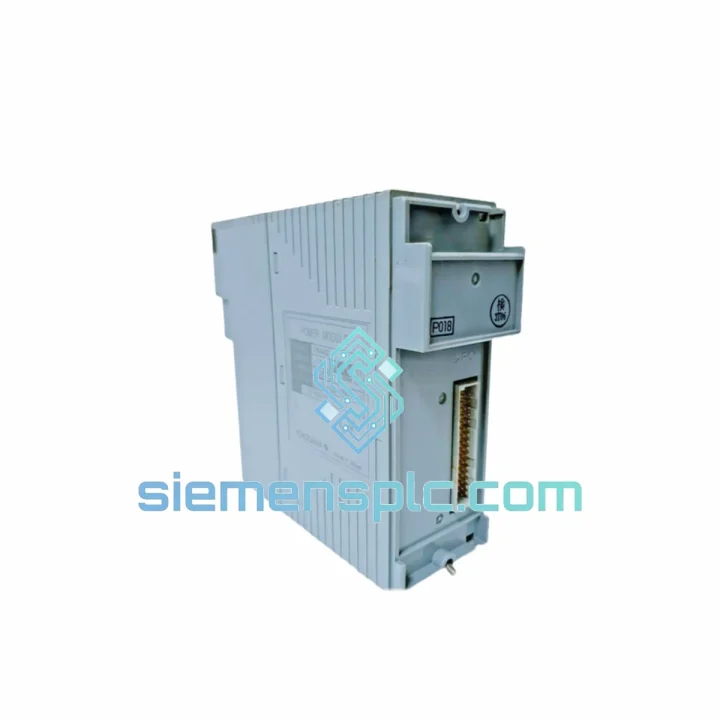

YOKOGAWA PW442-50 Power Supply Module – CENTUM CS3000

YOKOGAWA PW442-50 – Redundant DC Power Architecture for CENTUM CS3000 Field Control Stations

In continuous-process industries, the power supply module is not a peripheral component — it is the foundation upon which every control loop, every I/O scan cycle, and every safety interlock depends. The YOKOGAWA PW442-50 is a dedicated redundant power supply module engineered for the CENTUM CS3000 and CENTUM CS Distributed Control System platforms. It delivers regulated DC power to the Field Control Station (FCS) backplane, maintaining voltage stability within tight tolerances across the full operating temperature range. Its 1:1 hot-standby redundancy architecture ensures that a single module failure produces zero interruption to the control bus — a non-negotiable requirement in oil refining, LNG processing, and continuous chemical manufacturing.

The PW442-50 operates within the CENTUM CS3000 FCS cabinet as a load-sharing redundant pair. Under normal conditions, both modules share the DC load equally, each carrying approximately 50% of the rated current. Upon detection of a fault in one module — whether from input undervoltage, output overcurrent, or internal thermal exceedance — the surviving module assumes 100% of the load within microseconds, with no transient disturbance propagated to the backplane bus. This seamless transfer is managed by the module’s internal arbitration logic, which continuously monitors output voltage differentials between the two units and triggers switchover when the delta exceeds a defined threshold, typically ±0.2 V DC.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PW442-50’s internal architecture centers on a DC-DC conversion stage with synchronous rectification, followed by a low-dropout linear post-regulator that suppresses residual switching noise to below 20 mV peak-to-peak on the +5 V rail. This two-stage topology is deliberate: the switching stage handles bulk energy conversion at high efficiency, while the linear stage provides the low-noise, fast-transient-response output that CMOS-based FCS processor and I/O modules require.

The load-sharing arbitration between the two redundant PW442-50 units is implemented via a dedicated inter-module communication bus on the FCS backplane. Each module continuously broadcasts its output current measurement to its partner at a polling interval of approximately 1 ms. The arbitration logic computes the load imbalance and adjusts each module’s output current reference to maintain balance within ±5% of rated current. This active current sharing prevents thermal stress concentration in a single unit during prolonged high-load operation.

EMC hardening is achieved through a multi-layer approach: input-side common-mode and differential-mode LC filters attenuate conducted emissions from the AC/DC front end; the PCB layout employs a split ground plane with controlled impedance traces on the high-frequency switching nodes; and the module enclosure provides shielding continuity to the FCS cabinet chassis ground. The result is compliance with IEC 61000-4-4 (EFT, 2 kV) and IEC 61000-4-5 (surge, 1 kV/2 kV) without external suppression components — a design choice that reduces field failure modes associated with discrete surge arrestors.

The module’s thermal management relies on a combination of conduction cooling through the backplane mounting interface and convective cooling from the cabinet’s forced-air ventilation system. Internal temperature sensors at three points — input stage, switching transformer, and output filter — feed into the module’s protection logic. A staged thermal response first reduces output current by 20% at 65 °C junction temperature, then triggers a controlled fault shutdown at 80 °C, with a fault flag written to the FCS diagnostic register to enable alarm annunciation at the HMI level.

System Integration Benefits

• Zero-Interruption Power Continuity: Sub-millisecond switchover time ensures that FCS scan cycles — typically 100 ms to 500 ms — are never disrupted by a single power module failure, preserving control loop integrity without operator intervention.
• Deterministic Fault Propagation: Fault events are written to the FCS backplane diagnostic register within one scan cycle, enabling the CENTUM CS3000 HIS (Human Interface Station) to generate a timestamped alarm with module-level granularity — no ambiguity in root-cause identification.
• Online Module Replacement: The tool-free extraction mechanism and hot-swap capability allow maintenance personnel to replace a faulted PW442-50 while the plant remains in full production, eliminating the need for a planned shutdown window.
• Load-Sharing Thermal Equalization: Active current sharing distributes thermal load equally between both modules, extending mean time between failures (MTBF) compared to a single-module active/standby configuration where the standby unit ages without load cycling.
• Backplane Bus Voltage Stability: The linear post-regulator stage maintains output voltage within ±1% of nominal across a 10% to 100% load range, preventing voltage-induced timing errors in FCS processor modules during load transients caused by I/O module scanning bursts.
• Integrated Diagnostic Transparency: Three-state LED indicators (PWR / FAULT / STANDBY) provide immediate visual status at the cabinet level, reducing the time required for first-line maintenance diagnosis from minutes to seconds.
• EMC Isolation from Field Wiring: The module’s input-side filtering and chassis-ground bonding prevent conducted interference from field instrument loops — particularly 4–20 mA current loops with long cable runs — from coupling into the FCS logic power rails.
• Compatibility Across FCS Generations: The PW442-50 is backward-compatible with earlier CENTUM CS FCS cabinet revisions, allowing plants that are upgrading from CENTUM CS to CS3000 to standardize on a single power module part number across mixed-generation installations.
• Reduced Spare Parts Inventory Complexity: A single PW442-50 part number covers both the active and standby positions in the redundant pair, simplifying spare parts management and reducing the risk of stocking mismatched module revisions.
• SIL-Compatible Platform Support: When deployed within a CENTUM CS3000 configuration that includes ProSafe-RS safety instrumented system integration, the PW442-50’s fault detection and diagnostic reporting capabilities contribute to the overall system’s IEC 61508 SIL 2 architectural constraints.

Quality Assurance & Global Logistics

Every YOKOGAWA PW442-50 unit supplied by siemensplc.com undergoes a structured incoming inspection protocol before it is offered for sale. Physical inspection covers connector pin integrity, PCB surface condition, label authenticity (including YOKOGAWA holographic security markings where present), and firmware revision identification via the module’s label data matrix. Units sourced from decommissioned plant inventories are additionally subjected to a 48-hour burn-in test at 40 °C ambient to screen for latent component failures before shipment.

Functional verification includes output voltage measurement under a calibrated resistive load bank at 25%, 50%, 75%, and 100% of rated current, with voltage regulation and ripple recorded against YOKOGAWA’s published acceptance criteria. Modules that fail any parameter are quarantined and not offered for sale. A test record is available upon request for each unit.

Packaging follows IEC 60068-2-47 transport vibration requirements: each module is placed in an anti-static bag, surrounded by 50 mm of closed-cell polyethylene foam, and sealed in a double-wall corrugated carton. For international shipments, a moisture-barrier bag with desiccant is added for ocean freight consignments. Export documentation — commercial invoice, packing list, certificate of origin (Form A or CO as required), and inspection report — is prepared for every order.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling both air freight (DHL, FedEx, UPS) and sea freight (FCL/LCL) dispatch. Typical air freight transit times: Southeast Asia 2–4 days, Middle East 3–5 days, Europe 4–7 days, Americas 5–8 days. All shipments are tracked end-to-end, with tracking numbers provided within 24 hours of dispatch.
